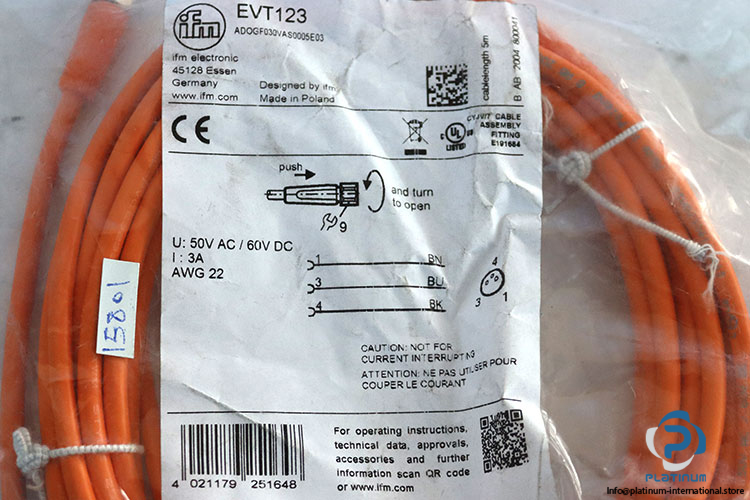

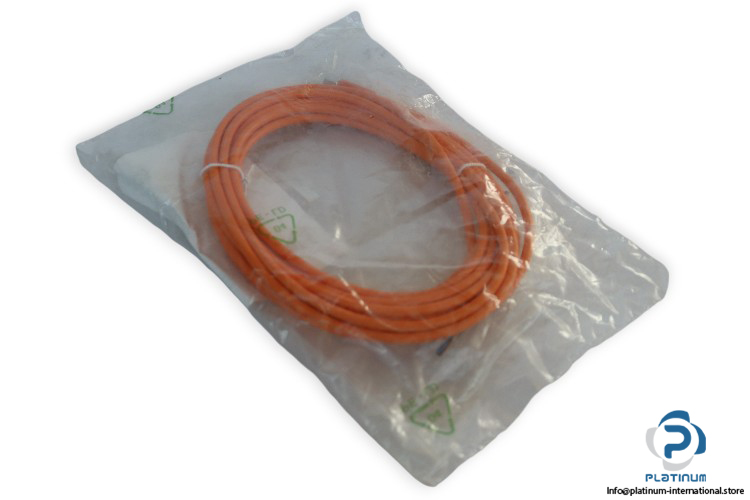

IFM EVT123 Connecting Cable

Manufacturer: IFM
Type: Connecting cable with socket
Model: EVT123
Art-No.: ADOGF030VAS0005E03

Operating voltage: 50 V AC, 60 V DC
Max. current load total: 3 A
Materials housing: PVC orange; Sealing: EPDM
Material nut: stainless stee
Electrical connection – Cable: 5 m, PVC, orange, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

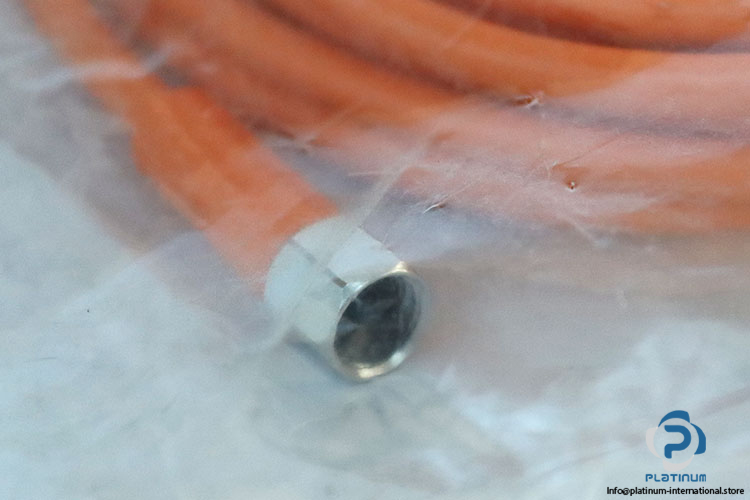

Electrical connection – socket: Connector: 1 x M8
Ambient Operation temperature: -25 … 80°C
Protection degree: IP 65; IP 67; IP 68; IP 69K
Dimensions: 10 x 10 x 31 mm
