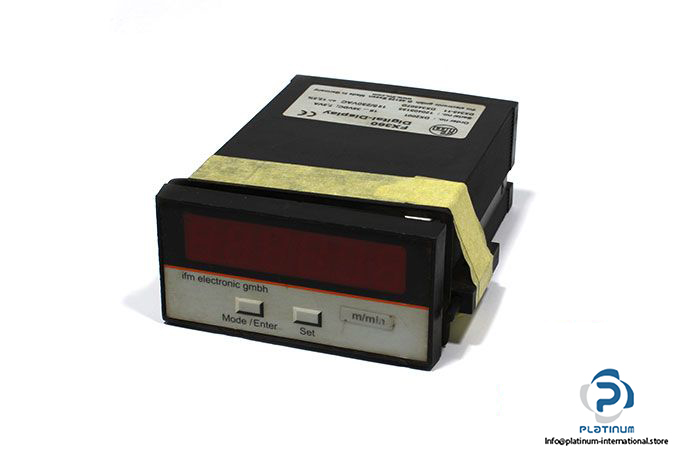

IFM FX360 DX2001 Digital Display
Manufacturer: IFM
Type: Multifunction display and evaluation system
Model: FX360

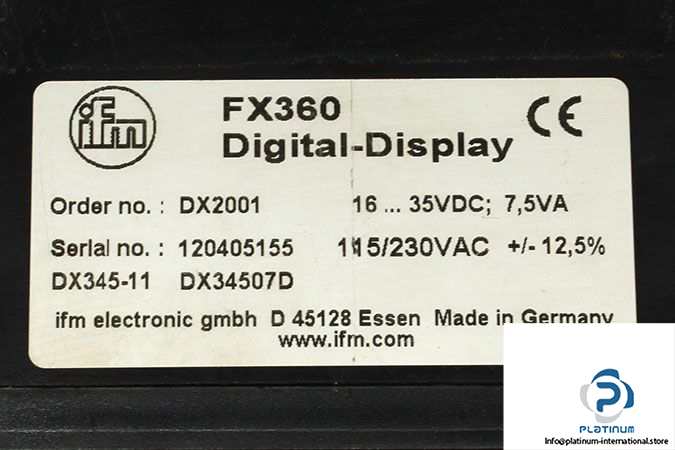

Order No: DX2001
DX345-11 / DX34507D
Uses
- For displaying and evaluating pulse sequences
- For monitoring rotational speed, speed, quantity or handling time
- Various configurable monitoring functions
- Very exact measuring of the input frequency
- Clearly visible 6-digit LED display
Operating Voltage: 115/230V AC
Output: 16 … 35 VDC, 7.5 VA
Current consumption [mA]: 120 (18 V); 95 (24 V); 80 (30 V)
Operating Temp.: 0 … +45°C
Display: 7-segment LED display, orange 6-digit 15 mm
Weight: 0.4 kg
