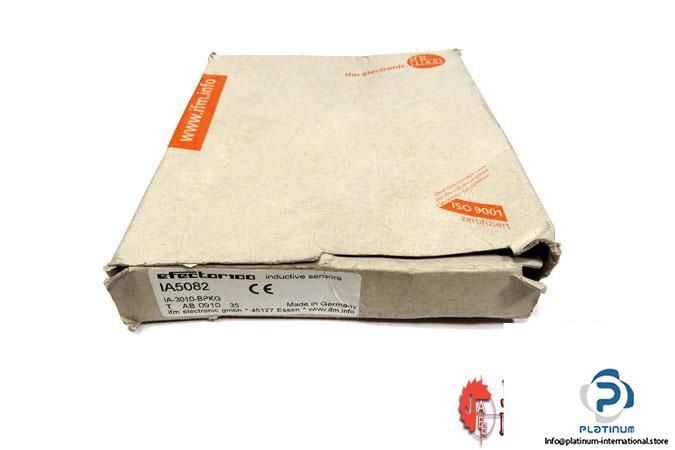

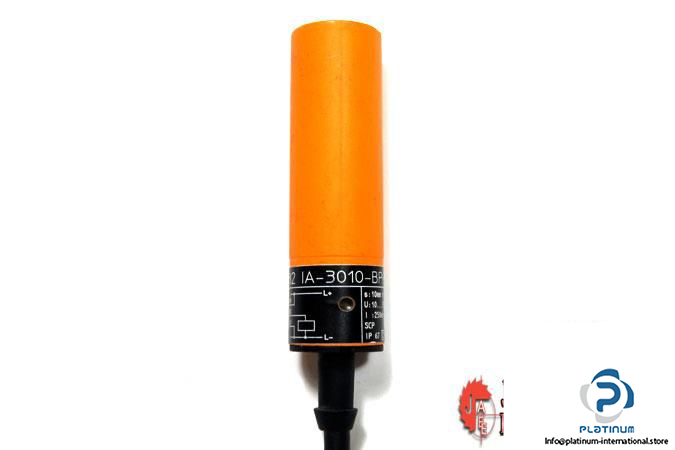

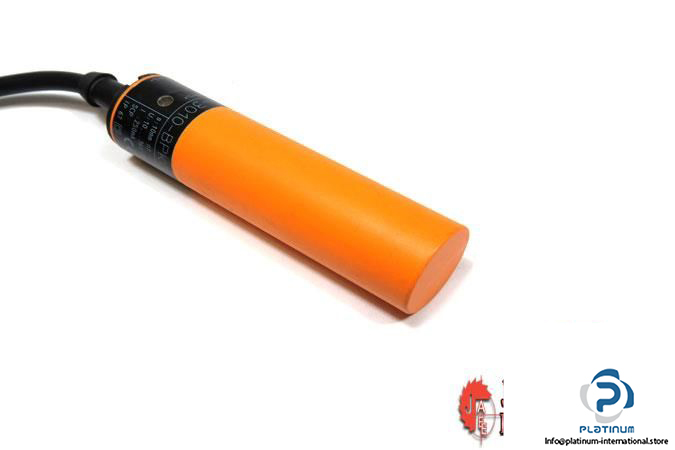

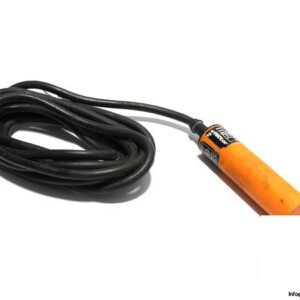

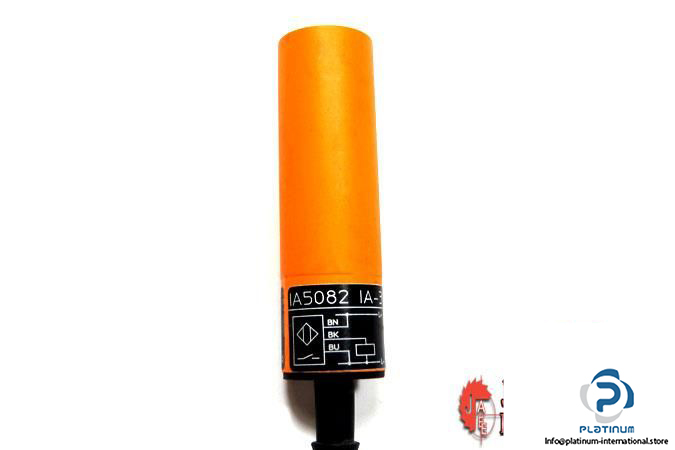

IFM IA5082 IA-3010-BPKG Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IA5082

MRN: IA-3010-BPKG

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10 % mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop: 2.5 V DC

Switching output current: 250 mA DC

Current consumption: 15 mA

Switching frequency: 300 Hz DC

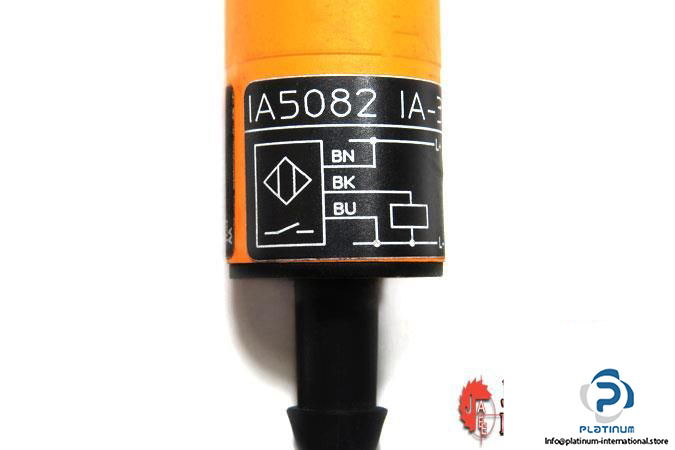

Electrical Design: PNP

Output Function: Normally open

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Cylindrical type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 20, 77 mm

Material: PBT

Mounting: non-flush mountable

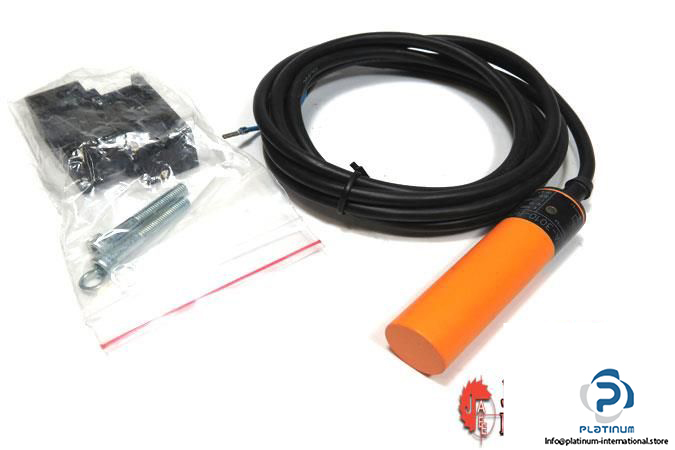

Supplied Accessories:  2 lock nuts

Weight: 160.7 g
