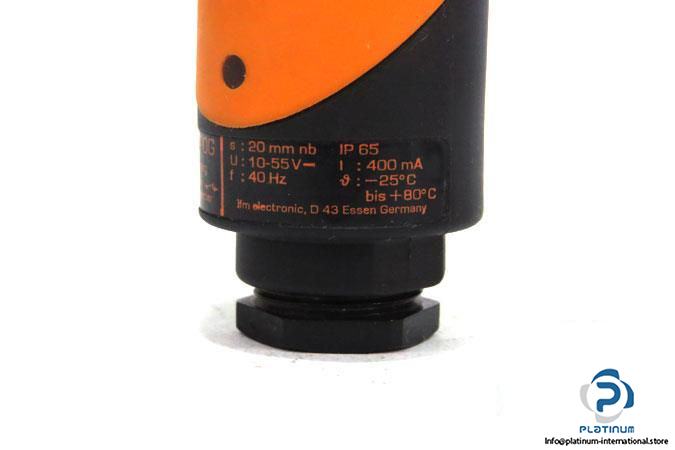

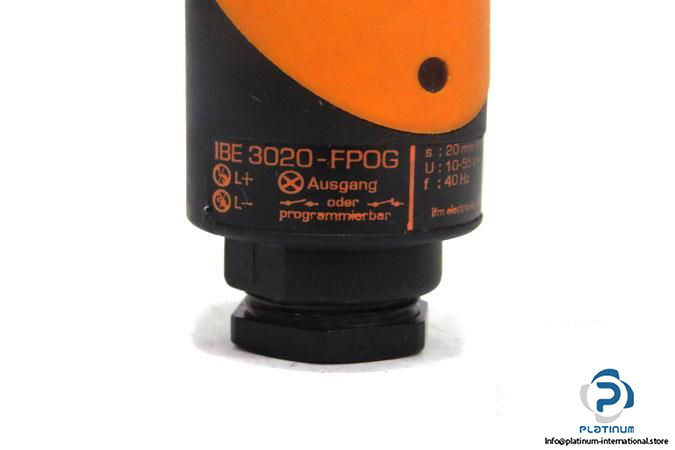

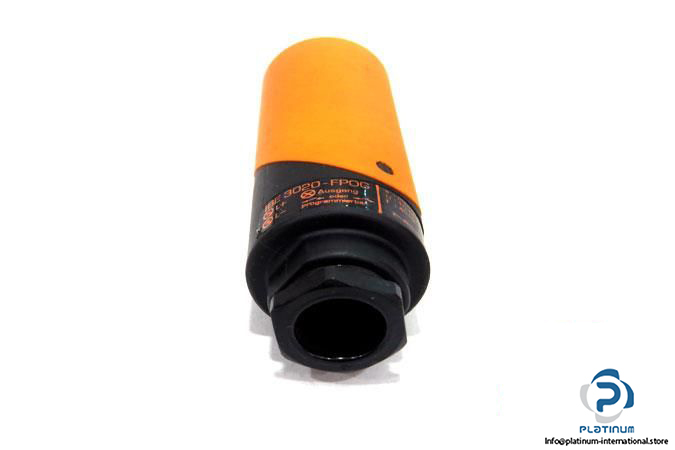

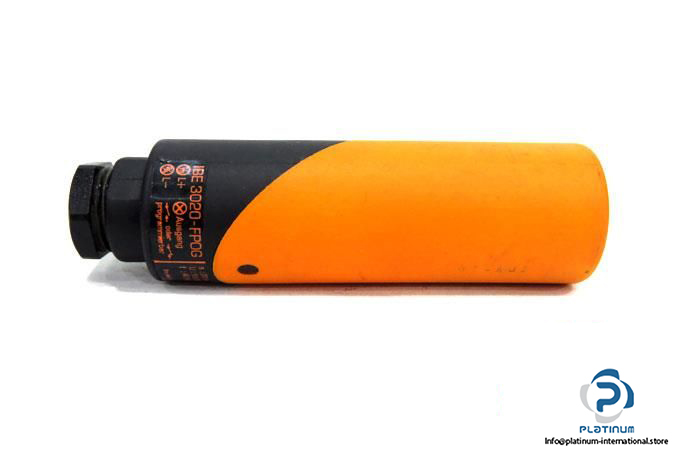

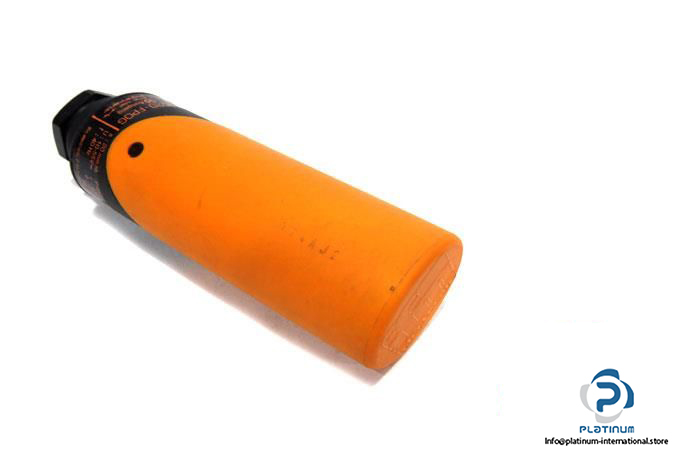

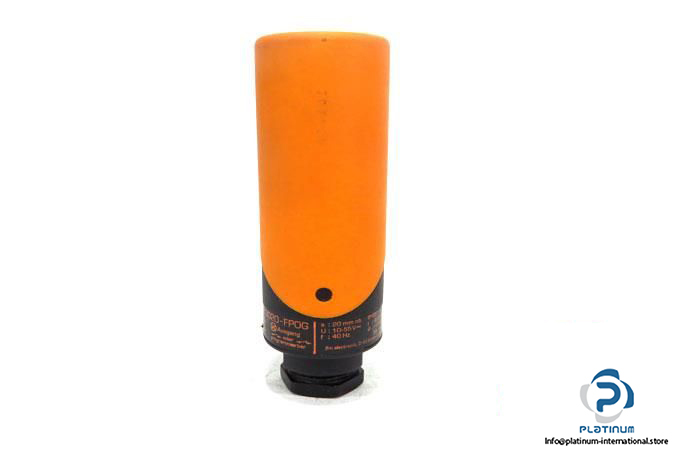

IFM IB5109 IBE3020-FPOG Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IB5109

MRN: IBE 3020–FPOG

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 55 V DC

Switching output current: 400 mA DC

Switching frequency: 40 Hz

Electrical Design: PNP

Output Function: Normally open/normally closed

Connector type: PVC Cable

Protection Class: II

Enclosure rating: IP65

Housing: Cylindrical

Ambient Operating temperature: -25 … 80°C

Diameter, housing length: 34, 98 mm

Material: PBT

Weight: 0.12 kg
