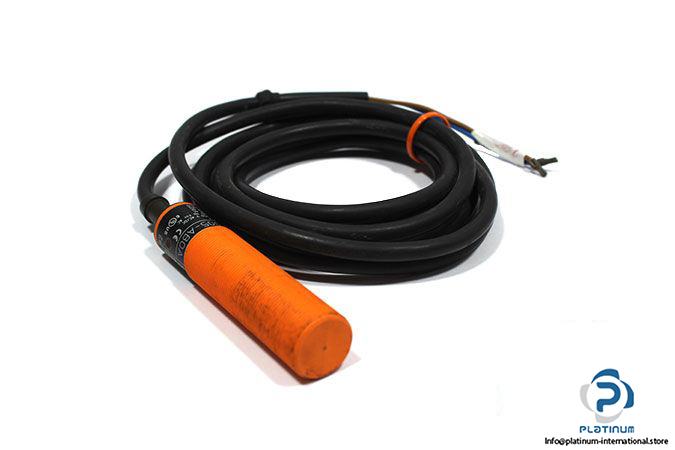

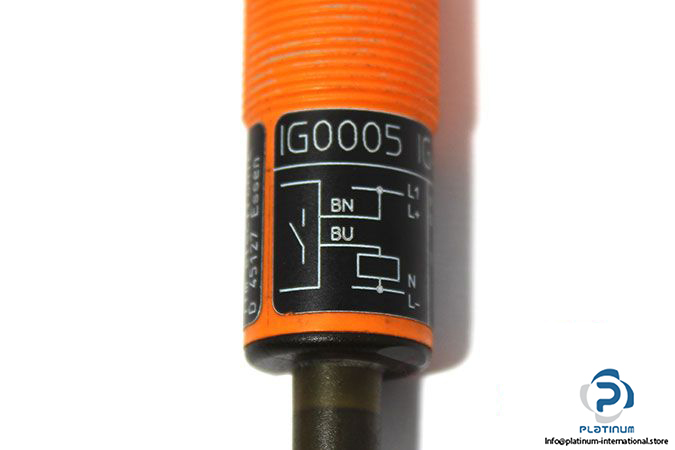

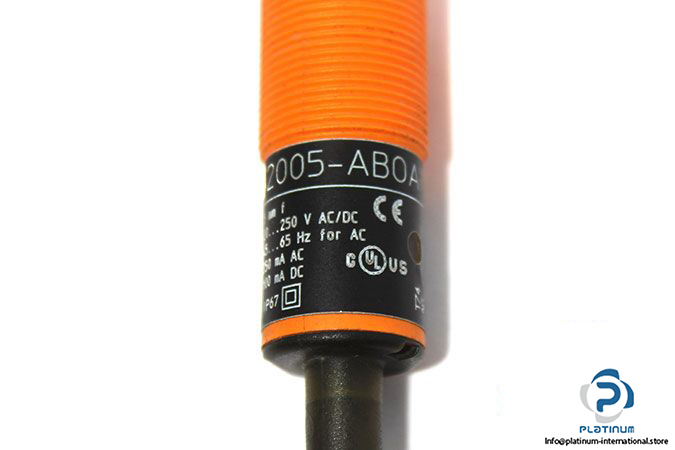

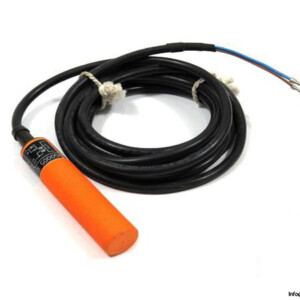

IFM IG0005 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IG0005

MRN: IG-2005-ABOA

Sensing Range: 5 mm

Real Sensing Range: 5 ± 10% mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 20 … 250 V AC/DC

Switching Output Current (AC, DC): 350 mA AC, 100 mA DC

Switching Frequency (AC, DC): 6.5, 6 Hz

Output Function: Normally Open

Connector Type, Length: PVC Cable, 2 m

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 18, 80 mm

Material: PBT

Mounting: Flush Mountable

Weight: 0.12 kg
