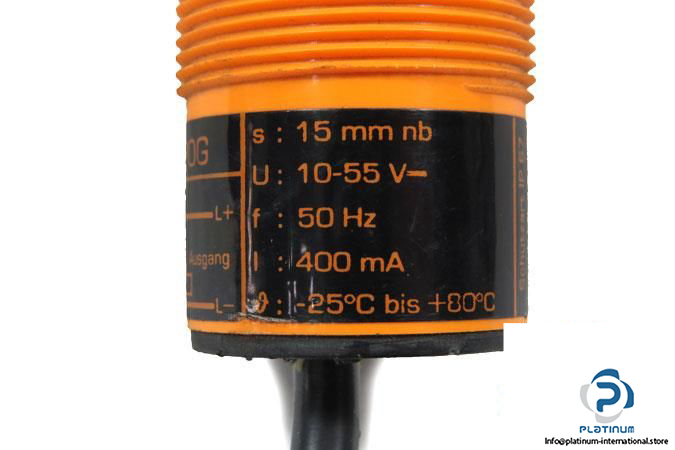

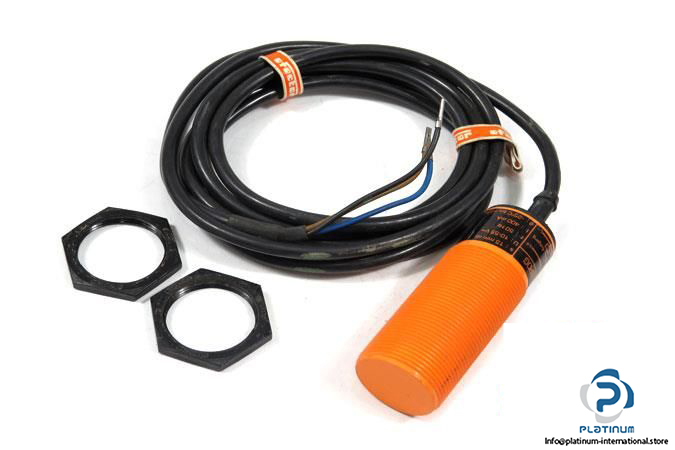

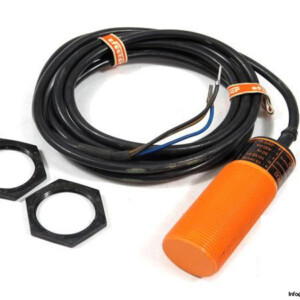

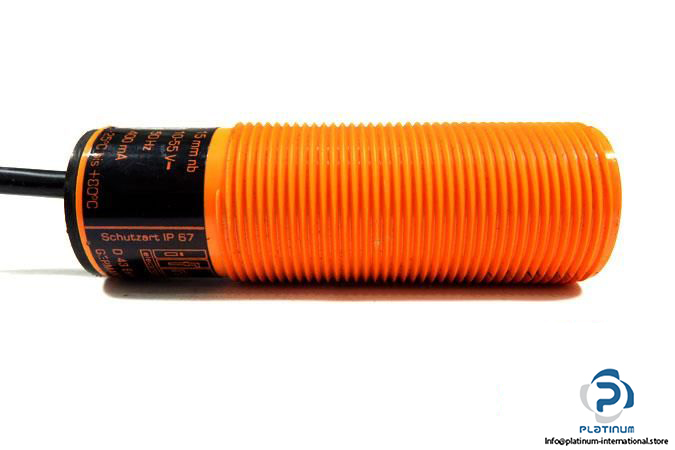

IFM II-3015LBPOG Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II-3015LBPOG

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 10 … 55 V DC

Switching output current: 400 mA DC

Switching frequency:  500 Hz

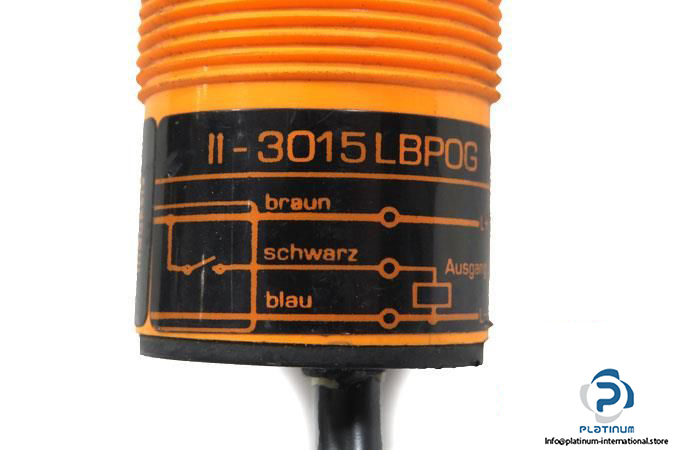

Electrical Design: PNP

Output Function: Normally open

Connector type: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 30, 81mm

Supplied Accessories: 2 lock nuts

Weight: 0.18 kg
