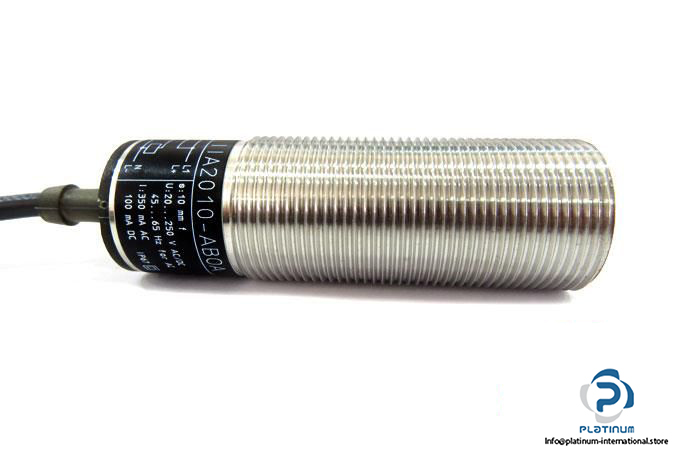

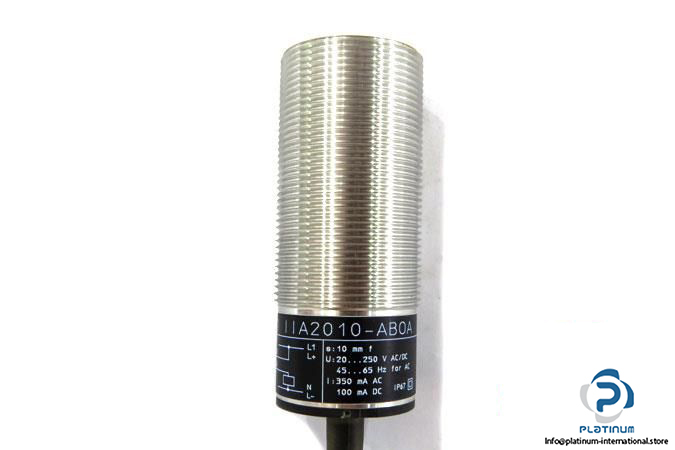

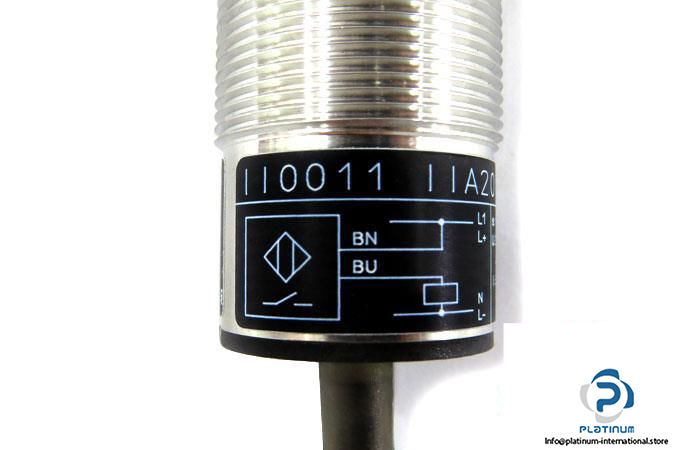

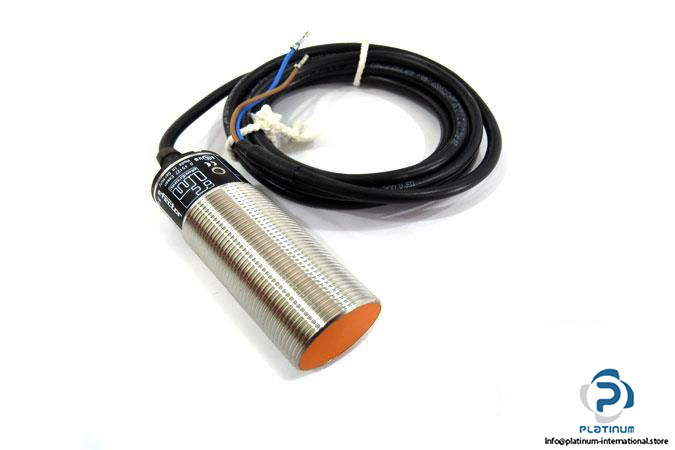

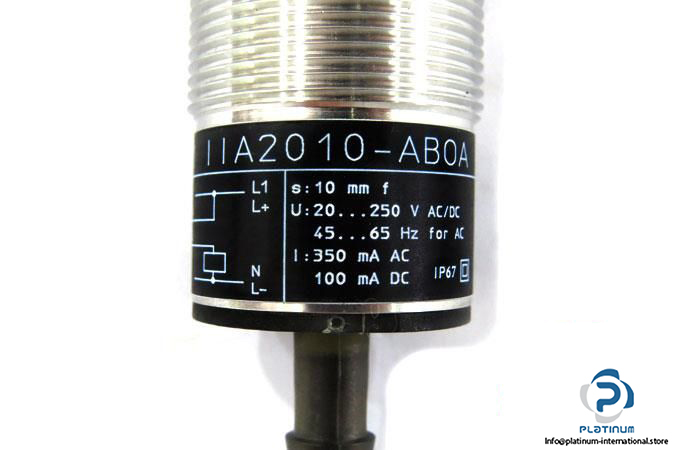

IFM II0011 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II0011

MRN: IIA2010-ABOA

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 20 … 250 V AC/DC

Switching output current (AC, DC): 350 Ma AC,100 mA DC

Switching frequency (AC, DC): 25,50 Hz

Output Function: Normally open

Connector type, length: PVC Cable, 2m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 …80°C

Diameter, Housing Length: 30, 81 mm

Material: Brass white bronze coated; sensing face: PBT

Mounting: Flush Mountable
