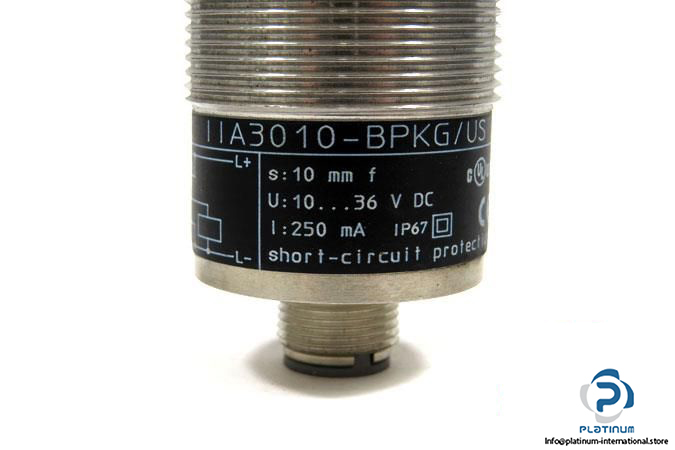

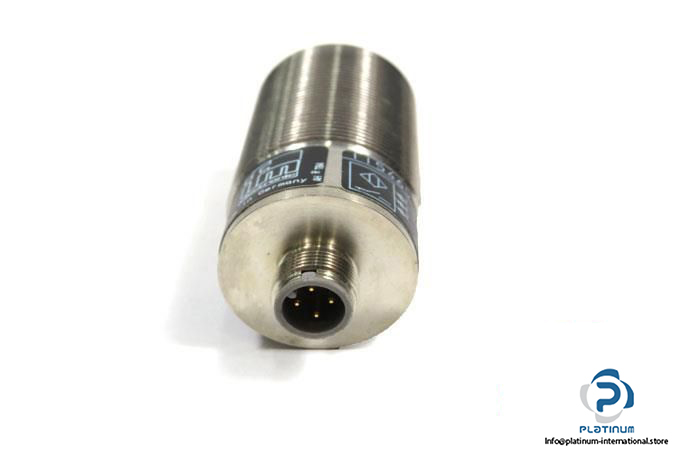

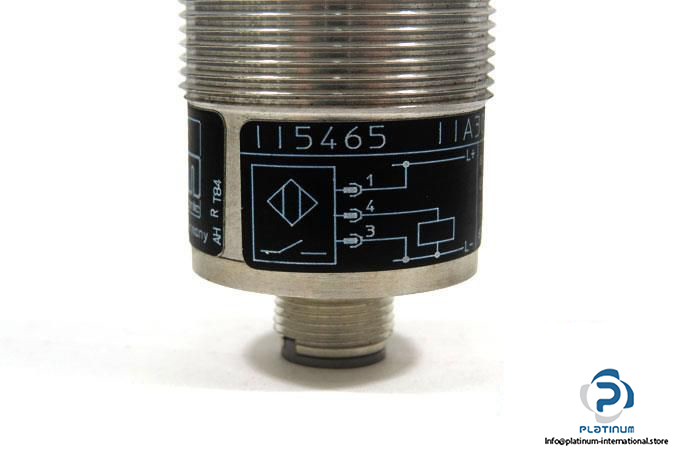

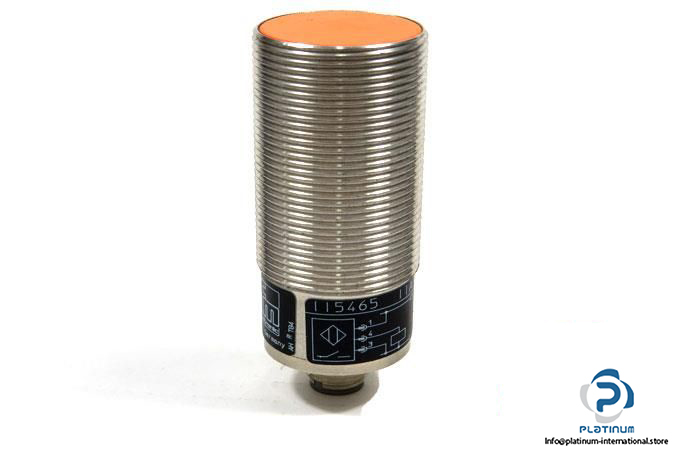

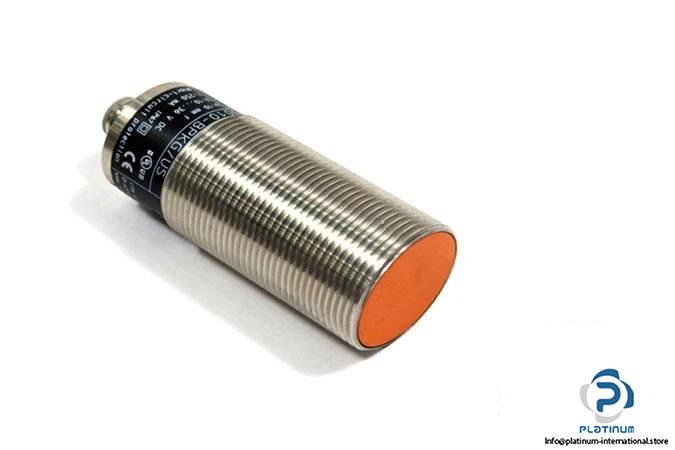

IFM II5465 Inductive Sensor

Manufacturer: ifm

Type: Inductive Sensor

Part No.: II5465

MRN: IIA3010-BPKG/US-100-DPS

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 10 … 36 V DC

Switching Output Current: 250 mA DC

Switching Frequency: 250 Hz

Electrical Design: PNP

Output Function: Normally Open

Connector Type: M12 Connector

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 30, 78 mm

Material: Brass Nickel-Plated; PBT

Mounting: Flush Mountable

Weight: 0.2 kg
