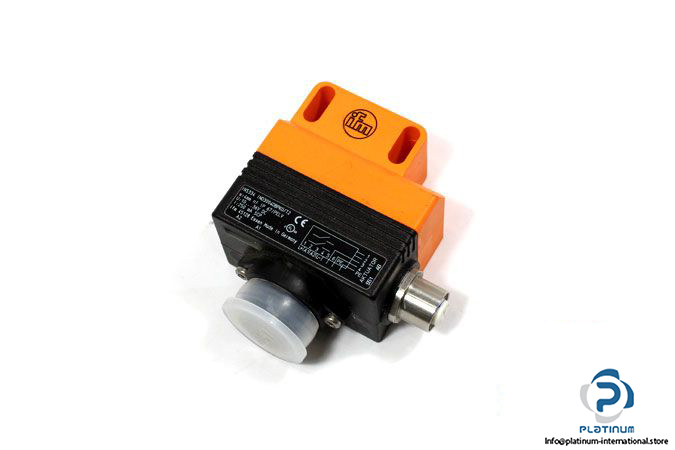

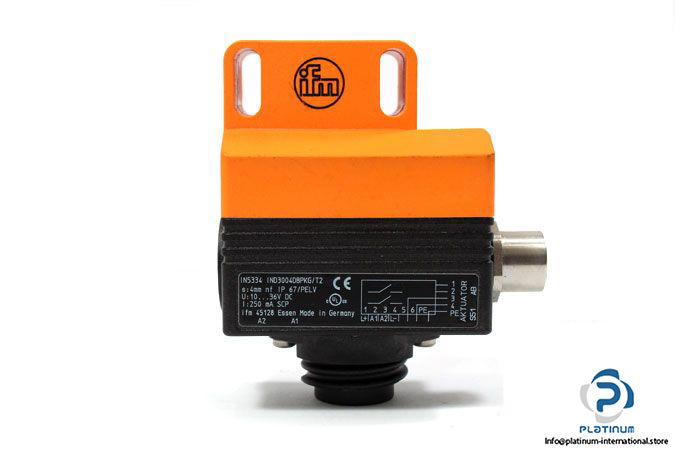

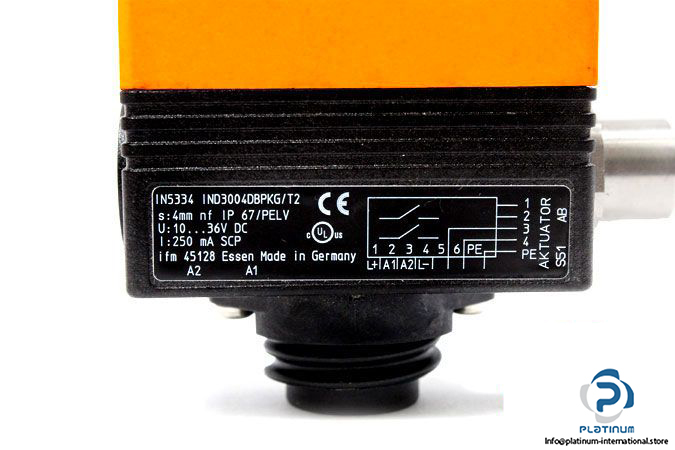

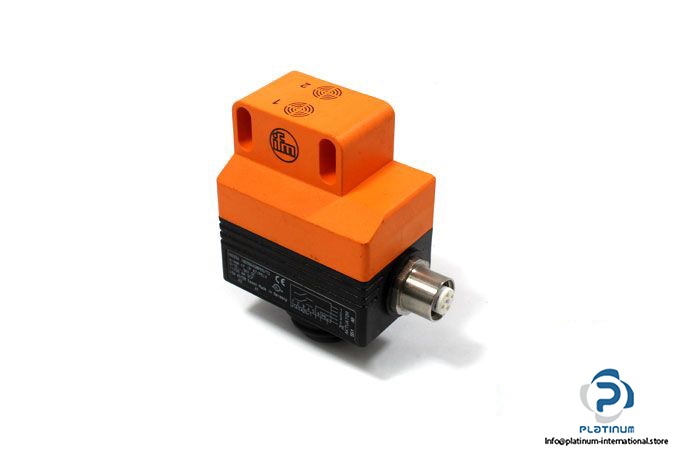

IFM IN5334 Inductive Dual Sensor

Manufacturer: ifm

Type: INDUCTIVE DUAL SENSOR FOR VALVE ACTUATORS

Part No.: IN5334

MRN: IND3004DBPKG/T2

Application: For use with actuators using standard ISO 5211, and valves according to NAMUR interface up to max. 20 W

Sensing Range: 4 mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Operating Current: 250 mA

Switching Frequency: 1300 Hz

Electrical Design: PNP

Switching Output: 2 x Normally open

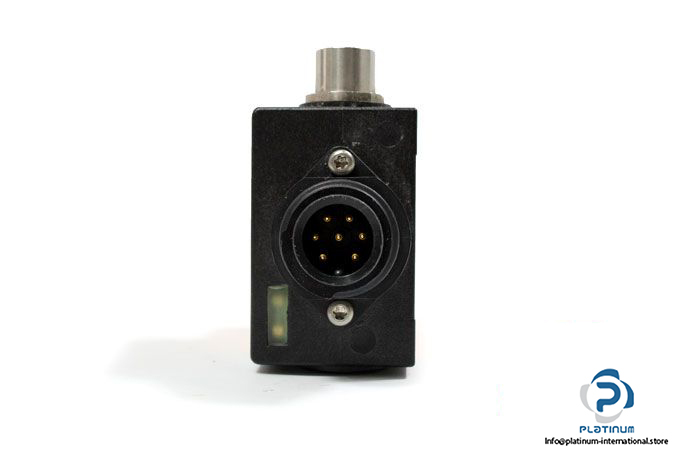

Connector Type(plug): Rd24 Connector

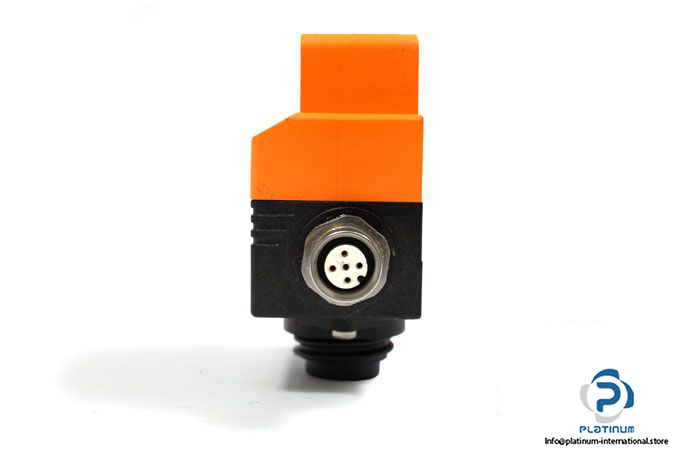

Connector Type(Socket): 1 x M12 Connector

Protection class: III

Enclosure Rating: IP67

Ambient Operating temperature: -25 … 80°C

Dimensions: 40 x 26 x 60 mm

Weight: 140 g

Material: PBT; PC

Mounting: Non-flush mountable
