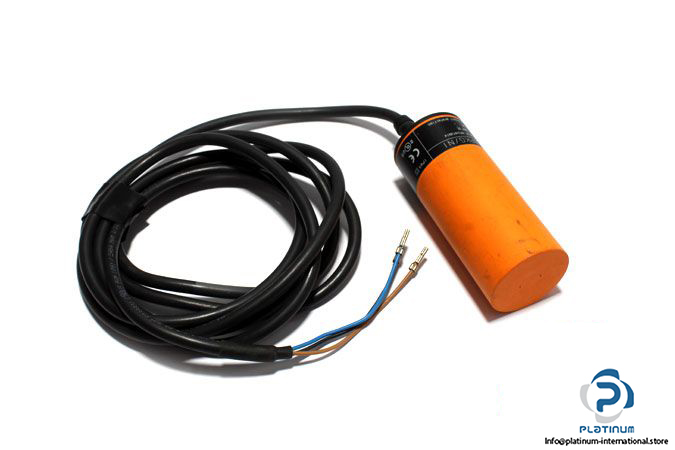

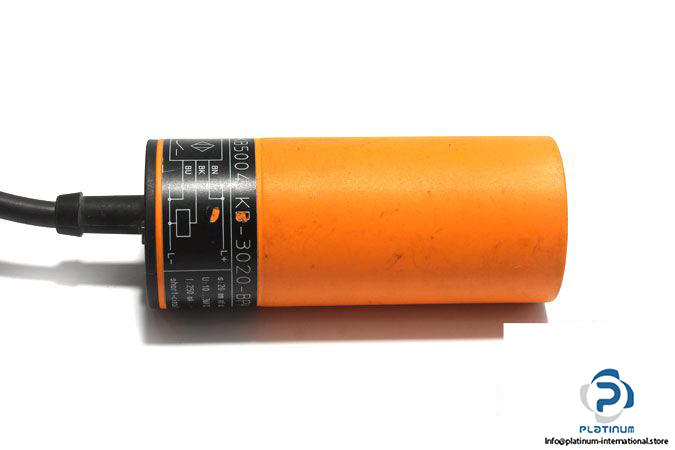

IFM KB5004 Capacitive Sensor

Manufacturer: IFM

Type: CAPACITIVE SENSOR

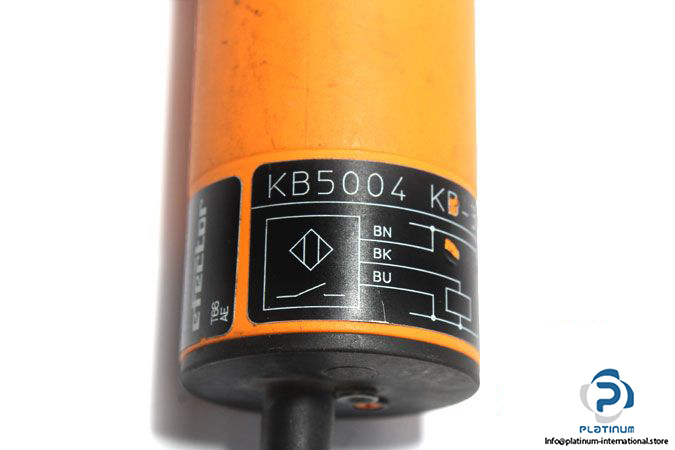

Part No.: KB5004

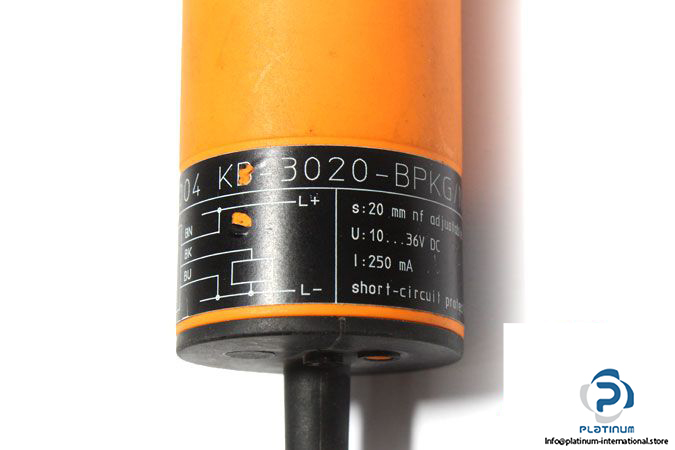

MRN: KB-3020-BPKG

Sensing Range: 4 … 20 mm

Real Sensing Range: 20 ± 10 % mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop: 2.5 V DC

Switching output current: 250 mA

Current consumption: 13 mA DC

Switching frequency: 40 Hz DC

Electrical Design: PNP

Output Function: normally open

Connector type, length: Cable, available in two lengths 2m and 30 cm

Protection Class: II

Enclosure rating: IP65

Housing: Cylindrical

Ambient Operating temperature: -25 … 70 °C

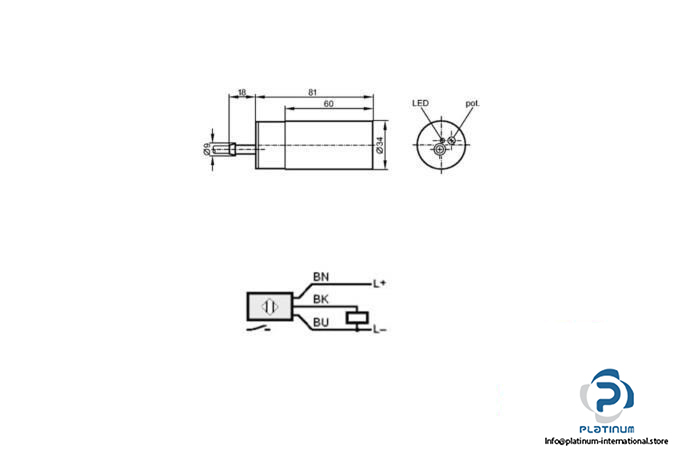

Diameter, Housing length: 34,81 mm

Material: PBT

Mounting: Non-flush mountable

Supplied accessories: Mounting clamps

Weight: 255.5 g
