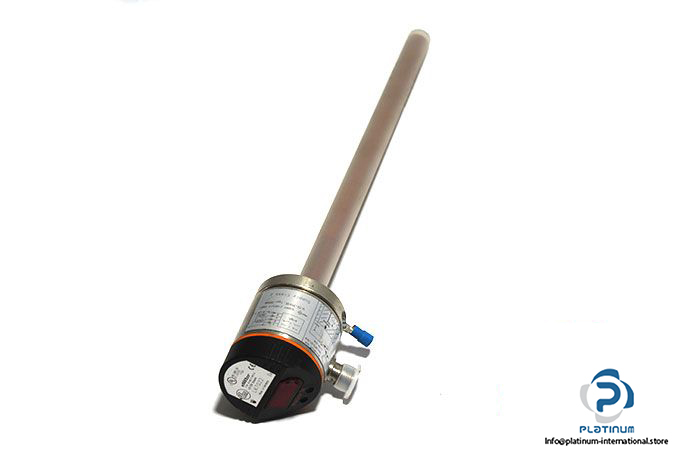

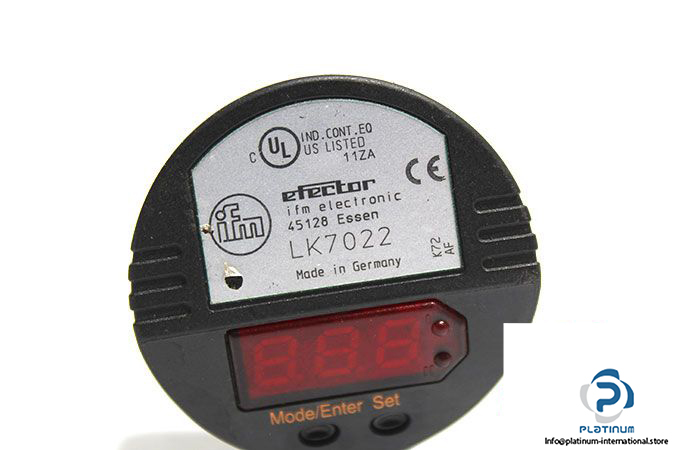

IFM LK7022 Electronic Level Sensor

Manufacturer: ifm
Type: Electronic level sensor
Family: Efector
Model: lk 7022

Operating voltage: 12 … 30 V DC
Current Consumption: <50
Number of digital outputs: 2
Media: hydrous coolants; oils; oil-based media; water; media similar to water
Output Signal: Switching Signal; IO-Link
Electrical Design: PNP/NPN
Output Function: normally open / closed; (configurable)
Active Measuring Range: 195 mm
Set Point: 25 … 200 mm
Reset Point: 20 … 195 mm
Resolution: 5 mm
Tank pressure: 0.5 bar

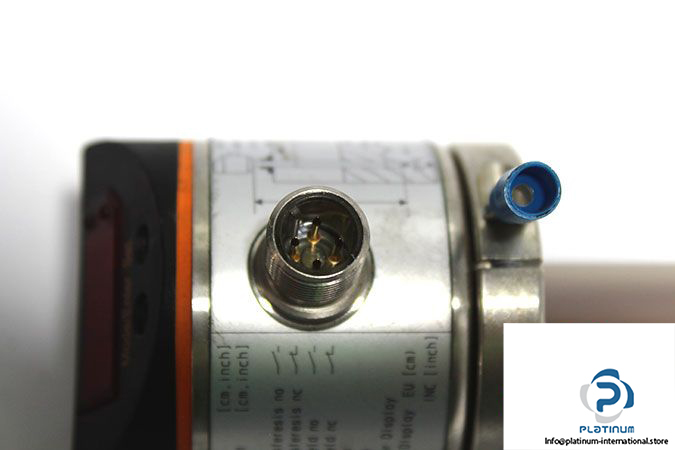

Electrical Connection: Connector; 1 x M12; Contacts: gold-plated
Medium temperature: 0 … 35 °C
Probe Diameter: Ø 16 mm
Probe length: 264 mm
Protection: IP67
