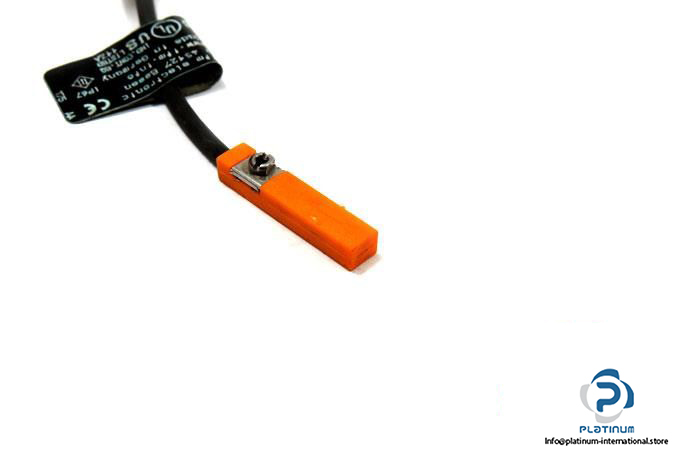

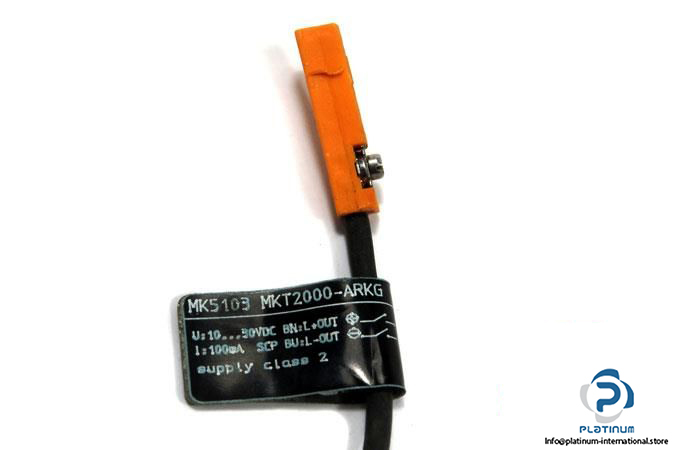

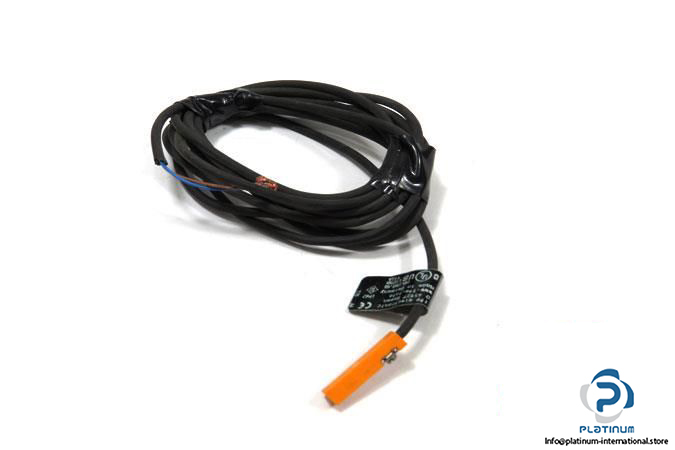

IFM MK5103 Cylindrical T-Slot Sensor

Manufacturer: ifm

Type: CYLINDRICAL T-SLOT SENSOR-POSITION SENSOR

Part No.: MK5103

MRN: MKT2000-ARKG

Response sensitivity: 2.8 mT

Travel speed: 10 m/s

Operating Voltage: 10 … 50 V DC

Switching output current: 100 mA DC

Switching frequency: 4000 Hz

Electrical design: PNP/ NPN

Output Function: Normally open

Delay time max. (Power on): 30 ms

Connector type, length: Cable, 2 m

Protection Class: III

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 85°C

Diameter, Housing length: 25 x 5 x 6.5 mm

Material: PA; fastening clamp: stainless steel

Mounting: Flush-mountable

Weight: 26.6 g

Condition: New
