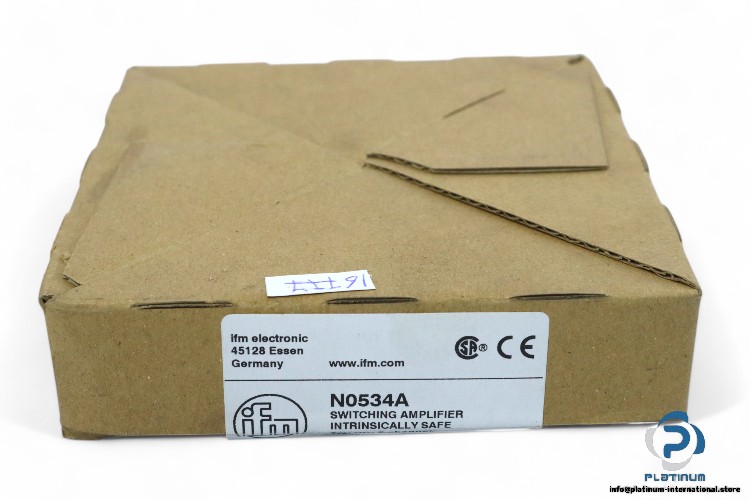

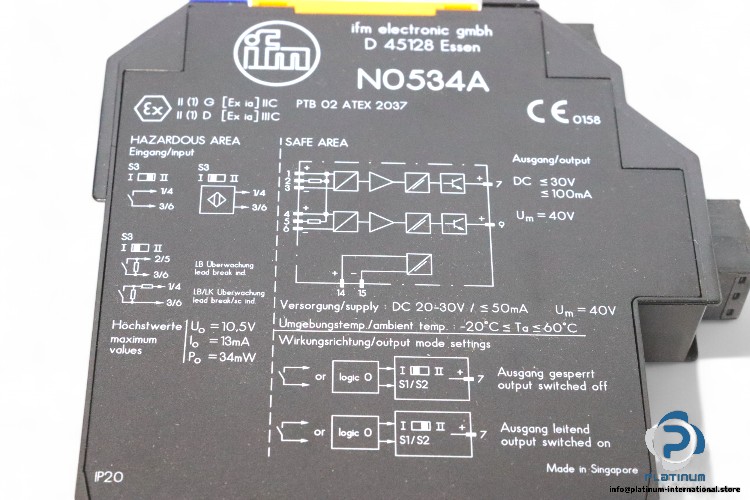

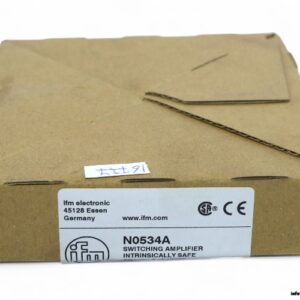

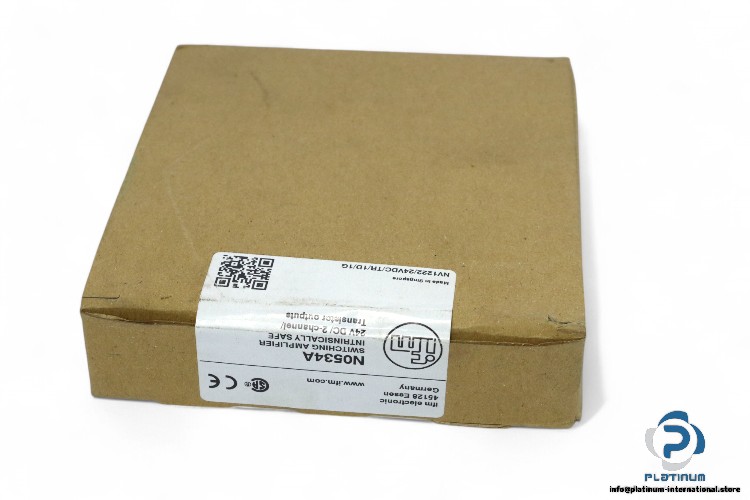

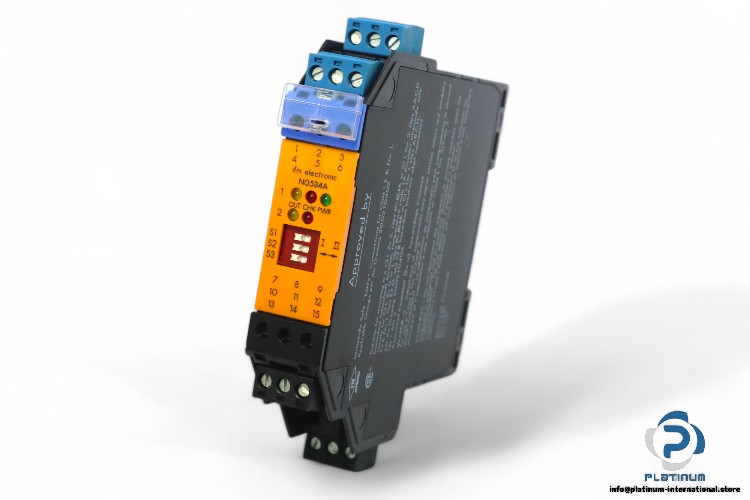

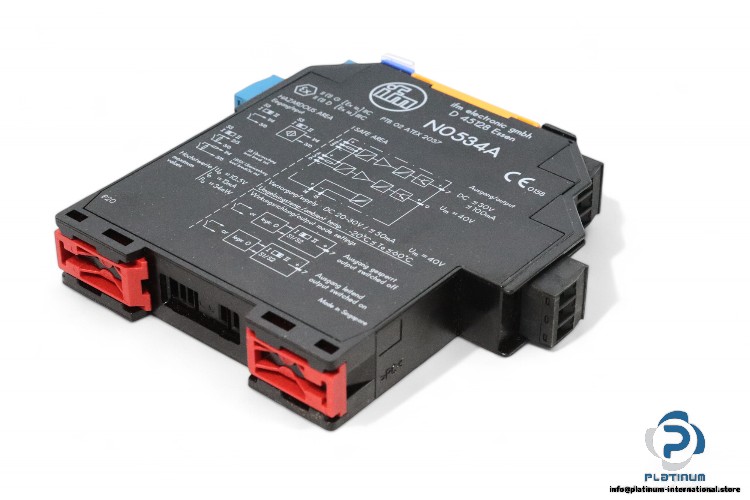

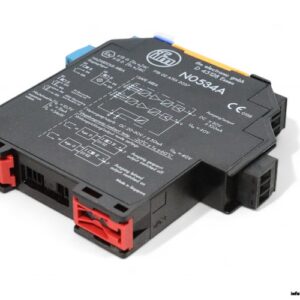

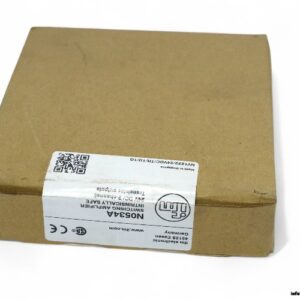

IFM N0534A Switch Amplifier
Manufacturer: IFM
Type: Switch Amplifier
Model: N0534A
Operating voltage: 24V DC
Current consumption: 50 mA
Electrical design: PNP
Connection: terminals, 2.5 mm²
Number of channels: 2
Number of digital outputs: 2
Application: short-circuit monitoring; Wire monitoring
Max. voltage drop switching output: 3.5 V DC
Max. current load per output: 100mA
Switching frequency DC: 5000 Hz
Short-circuit proof: yes
Degree of Protection: IP20
Ambient temperature: -20…60°C
