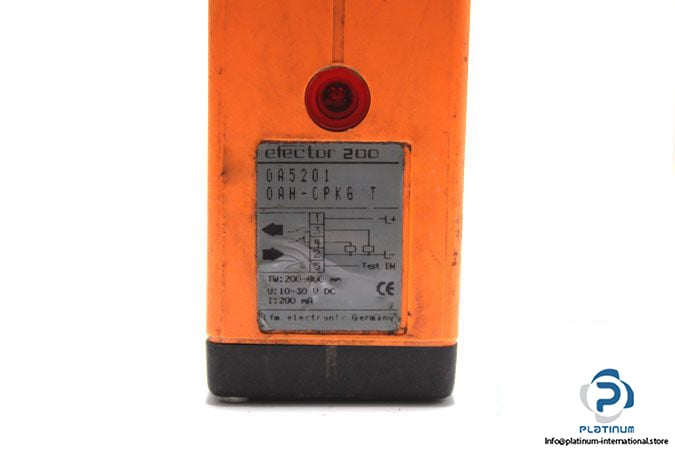

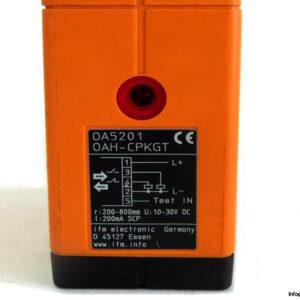

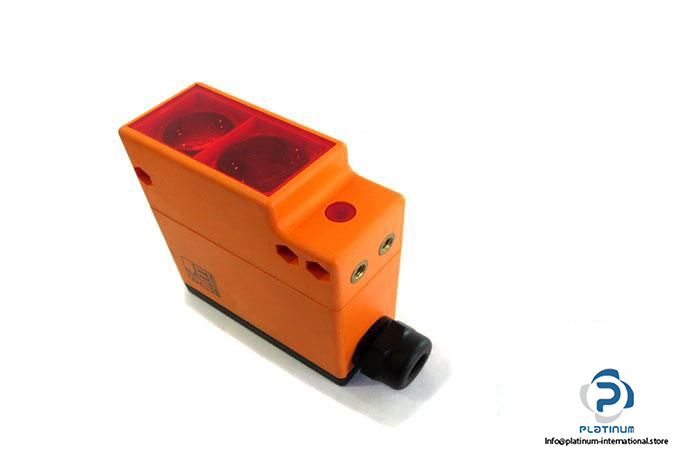

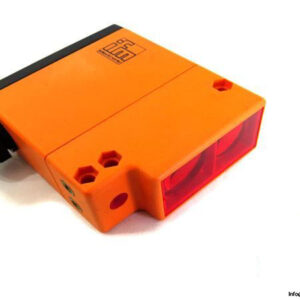

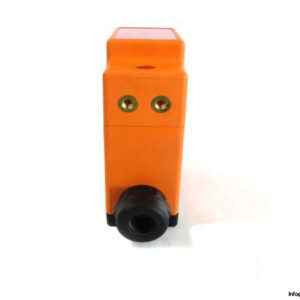

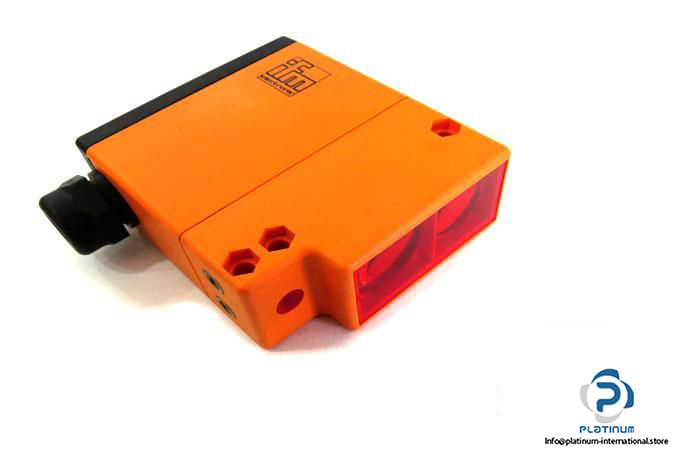

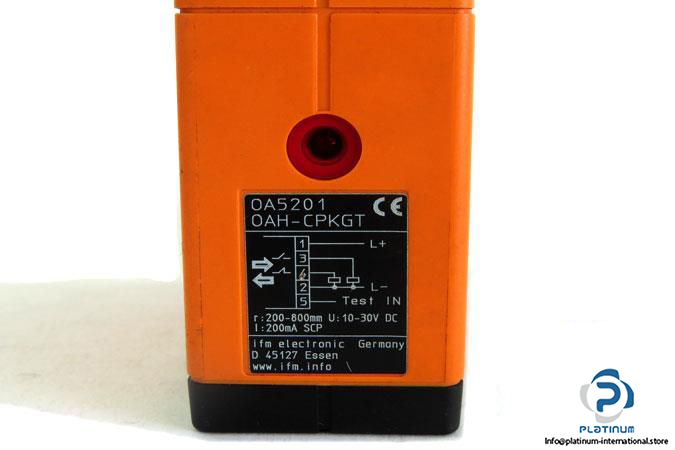

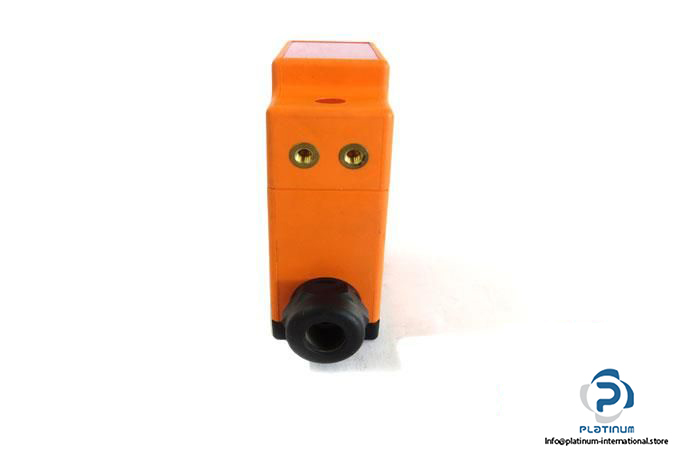

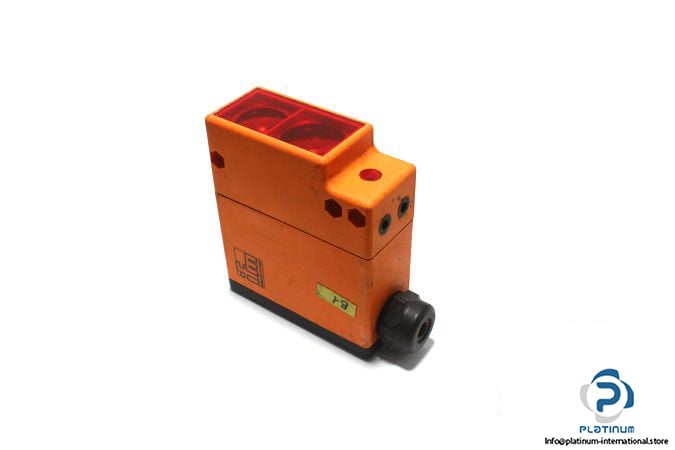

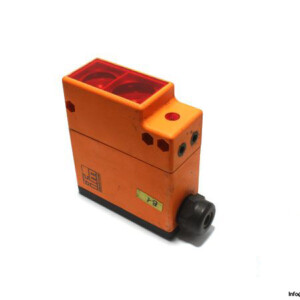

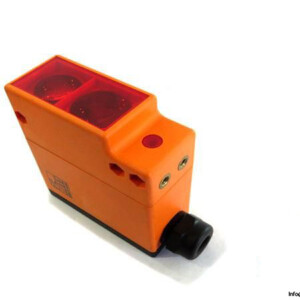

IFM OA5201 Diffuse Reflection Sensor

Manufacturer: ifm

Type: Diffuse Reflection Sensor

Part No.: OA5201

MRN: OAH-CPKGT

Sensing Range: 200 … 800 mm

Operating Voltage: 10 … 30 V DC

Voltage drop max.: 1.5 V

Switching output current: 200 mA DC

Switching frequency: 250 Hz

Electrical Design: PNP

Output Function: Complementary

Connector type: Cable gland: M16 X 1.5

Type of light: Infrared light

Wave length: 950 nm

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 55°C

Dimensions: 85 x 36 x 100 mm

Material: Polycarbonate, Lens material: PMMA

Weight: 0.23 Kg
