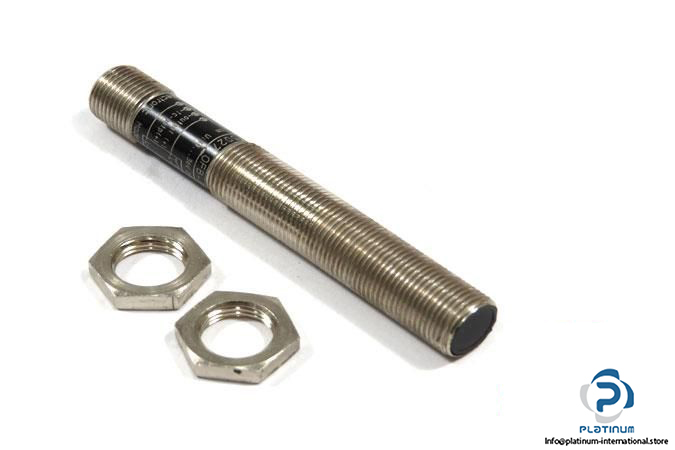

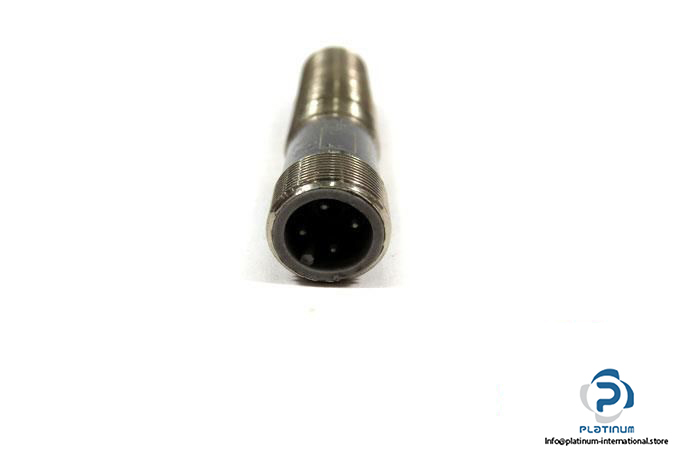

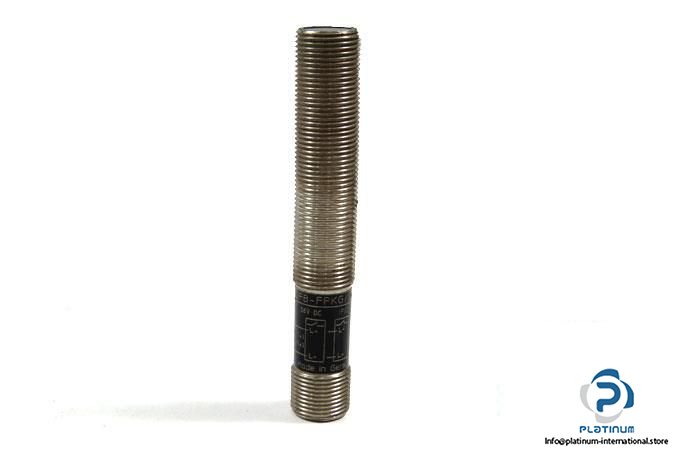

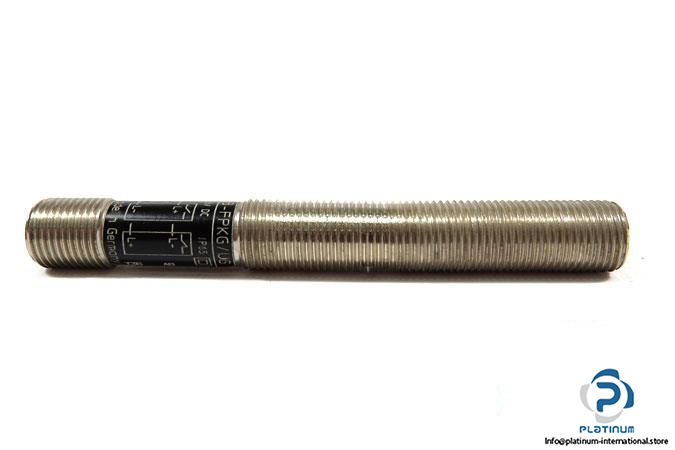

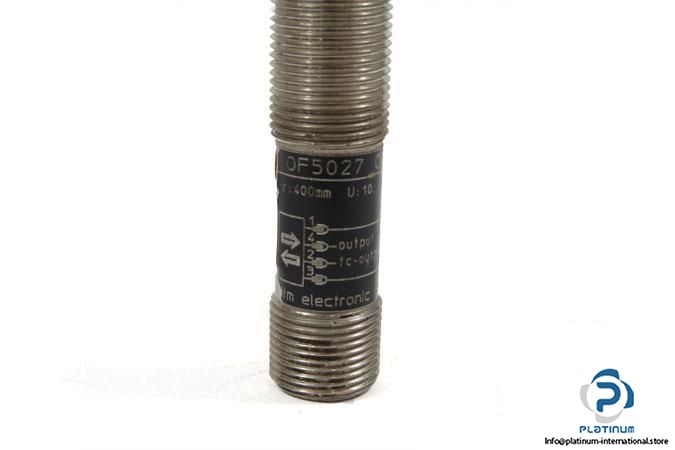

IFM OF5027 Photoelectric Diffuse Reflection Sensor

Manufacturer: ifm

Type: PHOTOELECTRIC DIFFUSE REFLECTION SENSOR

Part No.: OF5027

MRN: OFB-FPKG/US

Sensing Range: 1 … 400 mm

Operating Voltage: 10 … 36 V DC

Switching frequency: 320 Hz

Switching output current: 200 mA DC

Electrical design: PNP

Output Function: light-on/dark-on mode

Type of light: Infrared light

Wave length: 880 nm

Light spot diameter max.: 185 mm

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP65

Housing: Threaded type

Ambient Operating temperature: -25 … 60°C

Diameter, Housing length: 12, 85 mm

Material: Brass white bronze coated

Weight: 46.6 g

Condition: Used
