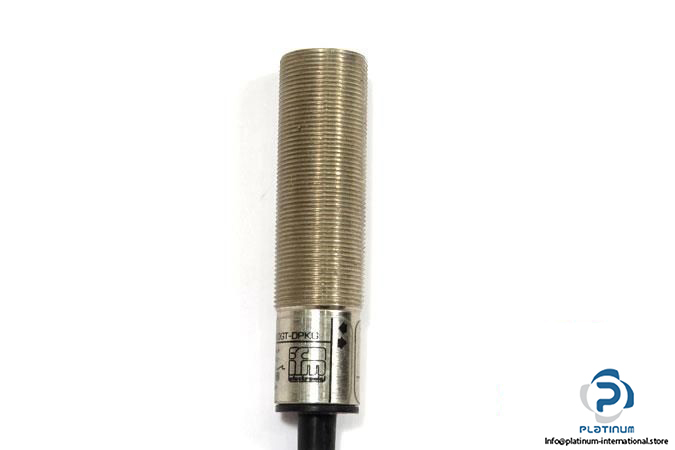

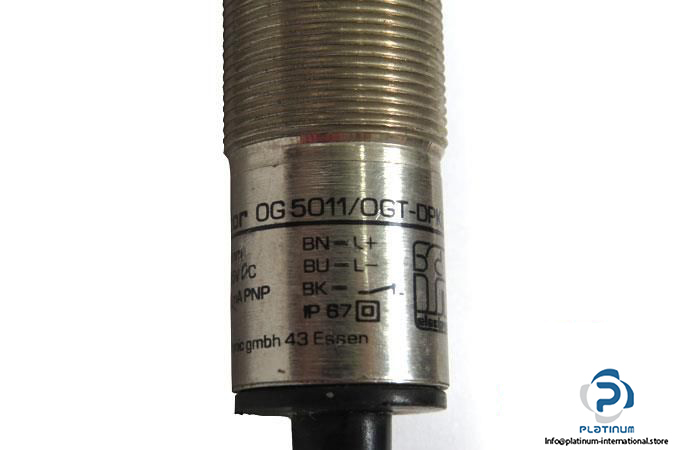

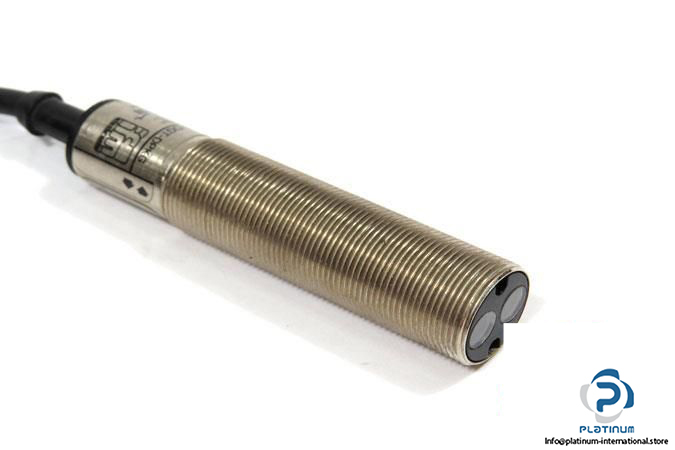

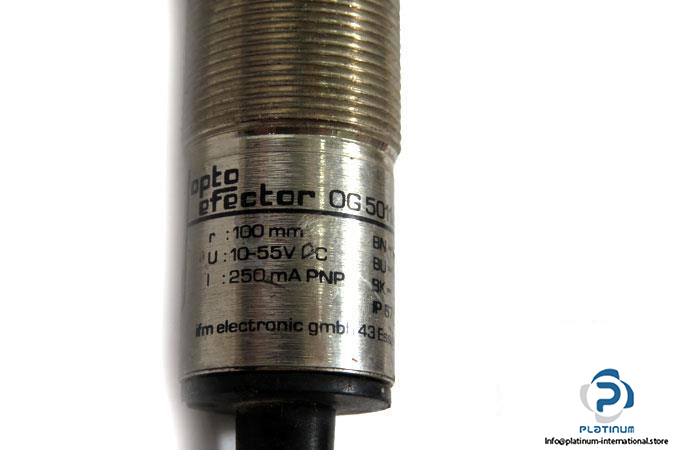

IFM OG5011 Diffuse Reflection Sensor

Manufacturer: ifm

Type: DIFFUSE REFLECTION SENSOR

Part No.: OG5011

MRN: OGT-DPKG

Sensing Range: 2 … 100 mm

Operating Voltage: 10 …55 V DC

Switching output current: 250 mA DC

Switching frequency: 160 Hz

Electrical design: PNP

Output Function: Dark on mode

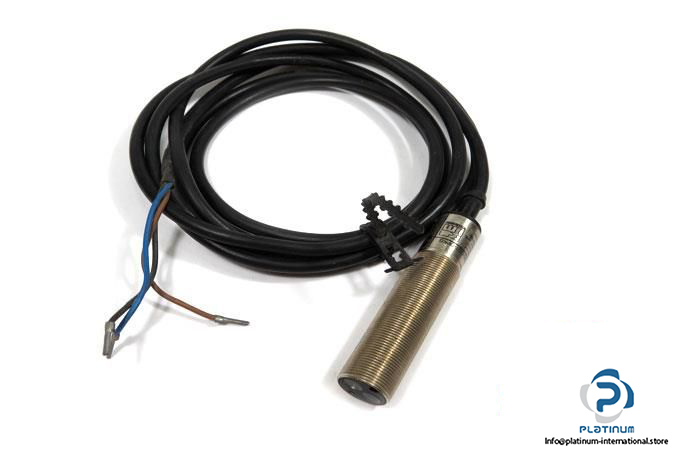

Connector type, length: PVC Cable, 2m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 18, 80 mm

Material: Brass nickel plated

Condition: New
