IFM OG5027 Retro-Reflex Sensor
bietet Infrarotlicht-Erkennung (880 nm), PNP-Ausgang und IP65-Schutz, ideal für zuverlässige Objekterkennung in industriellen Automatisierungssystemen.

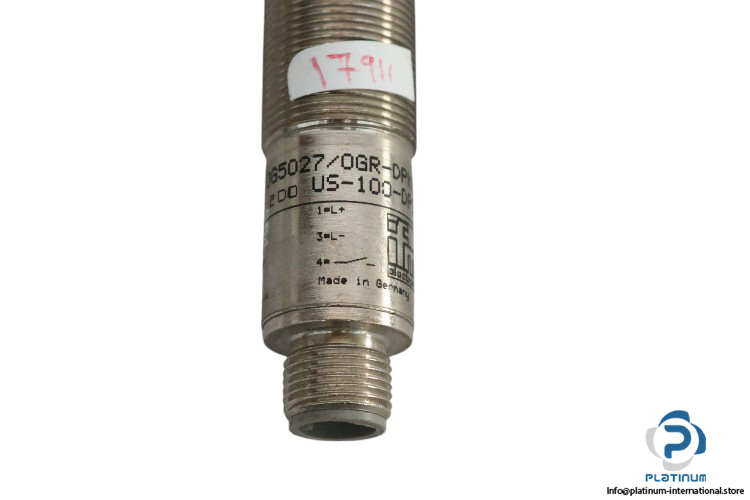

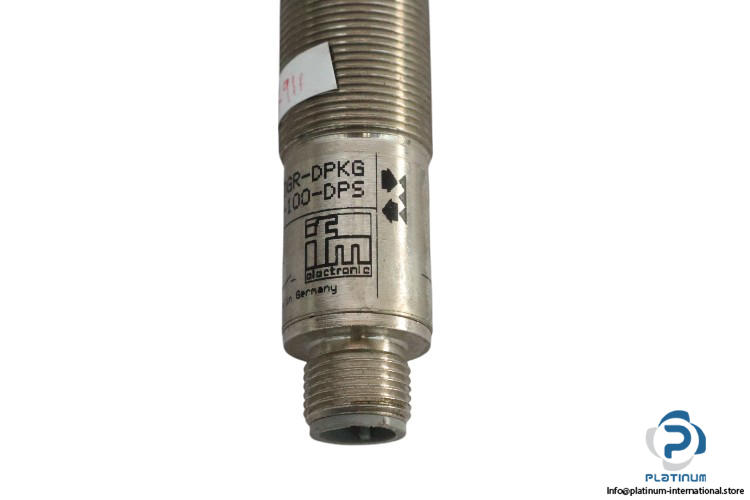

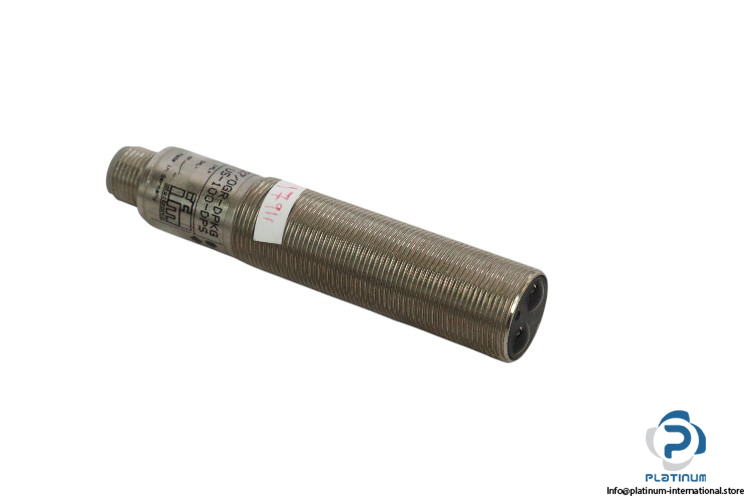

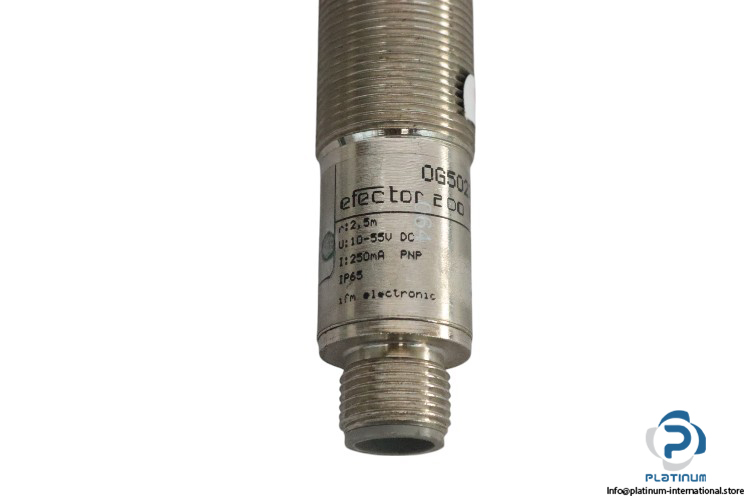

IFM OG5027 Retro-Reflex Sensor
The IFM OG5027 Retro-Reflex Sensor is a high-performance sensor designed for reliable object detection in industrial automation systems. With infrared light at a wavelength of 880 nm, this sensor offers precise and accurate detection. It operates within a voltage range of 10 to 55V DC and consumes 10 mA at 24V. The PNP output and dark-on mode function ensure versatility in a wide range of applications. Featuring a brass nickel-plated housing with an IP65 rating, it is built to withstand harsh environmental conditions, making it ideal for demanding industrial environments.
- Manufacturer: IFM
- Type: Retro-Reflex Sensor
- Model: OG5027
- Part No.: OGR-DPKG US-100-DPS
Technical Specifications:
- Type of Light: Infrared light (880 nm)
- Housing: Threaded type (M18 x 1 / L = 80 mm)
- Operating Voltage: 10…55V DC
- Current Consumption: 10 mA at 24V
- Protection Class: II
- Electrical Design: PNP
- Output Function: Dark-on mode
- Switching Status: 1 x LED, yellow
- Connection: 1 x M12, coding: A
- Short-Circuit Protection: Pulsed
- Degree of Protection: IP65
- Materials: Brass nickel-plated
- Ambient Temperature: -25…80°C
The IFM OG5027 Retro-Reflex Sensor provides reliable and precise object detection in challenging environments. With its durable brass housing, wide operating voltage range, and versatile functionality, it is an ideal choice for industrial applications that require consistent and efficient detection in automated systems.
