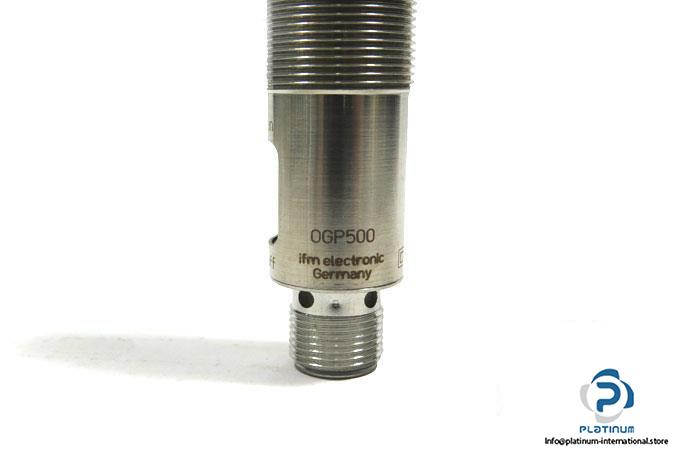

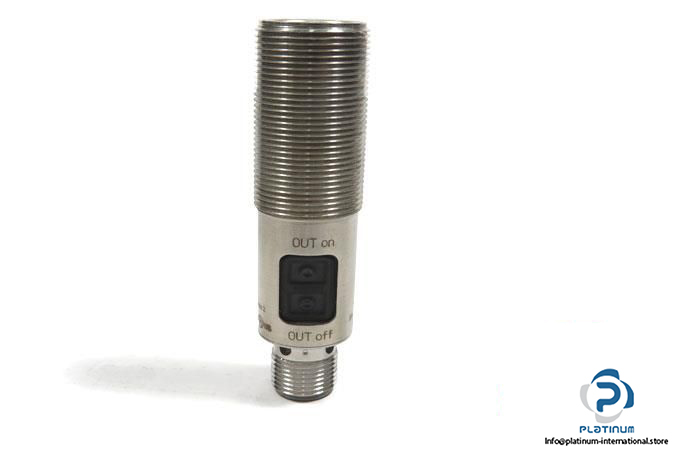

IFM OGP500 Photoelectric Retro-Reflective Sensor

Manufacturer: ifm

Type: RETRO-REFLECTIVE SENSOR

Part No.: OGP500

MRN: OGP-FPKG/US100

Sensing Range: 30 … 5000 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 200 mA DC

Switching frequency: 2000 Hz

Electrical design: PNP

Output Function: light-on/dark-on mode; (programmable)

Light spot diameter max. : 200 mm

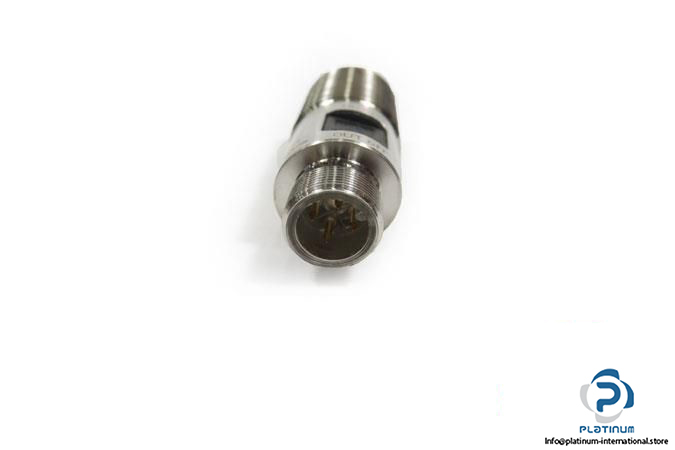

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP67

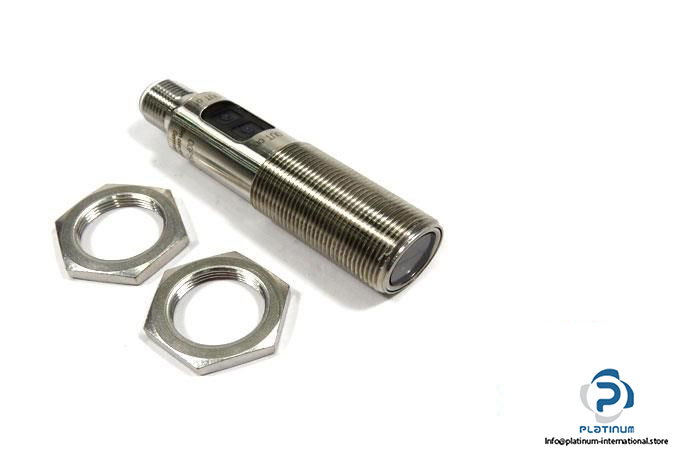

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 18, 72 mm

Material: stainless steel

Lens material: PMMA

Weight: 61.8 g

Condition: New
