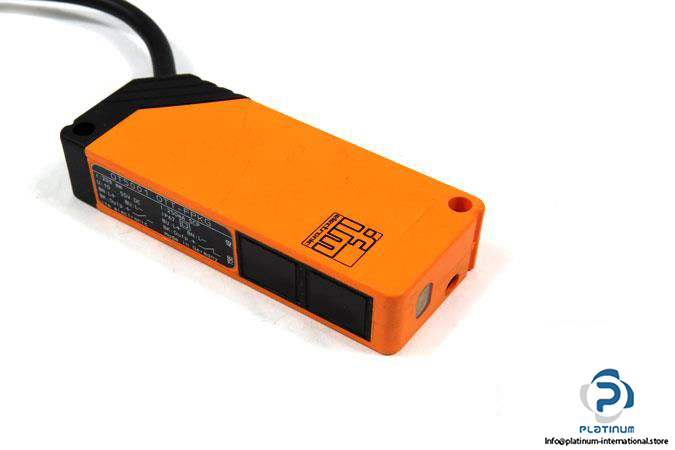

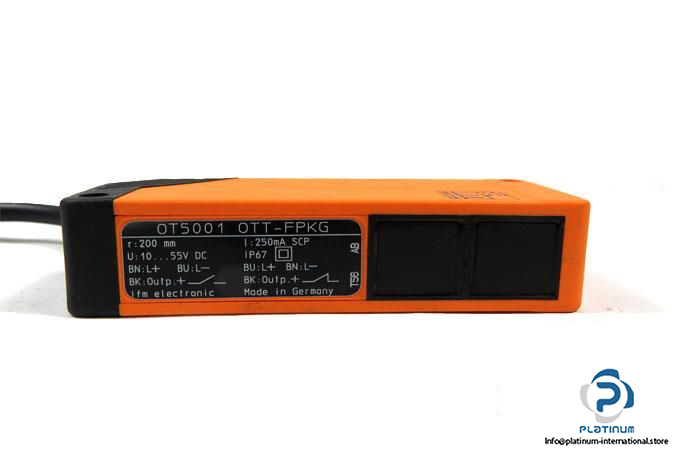

IFM OT5001 Photoelectric Diffuse Reflection Sensor

Manufacturer: ifm

Type: PHOTOELECTRIC DIFFUSE REFLECTION SENSOR

Part No.: OT5001

MRN: OTT-FPKG

Sensing Range: 4 … 200 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency:  150 Hz

Electrical Design: PNP

Output Function: light-on/dark-on mode; (programmable)

Connector type: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 60°C

Dimensions: 75 x 19 x 30 mm

Material: PBT

Weight: 200.5 g

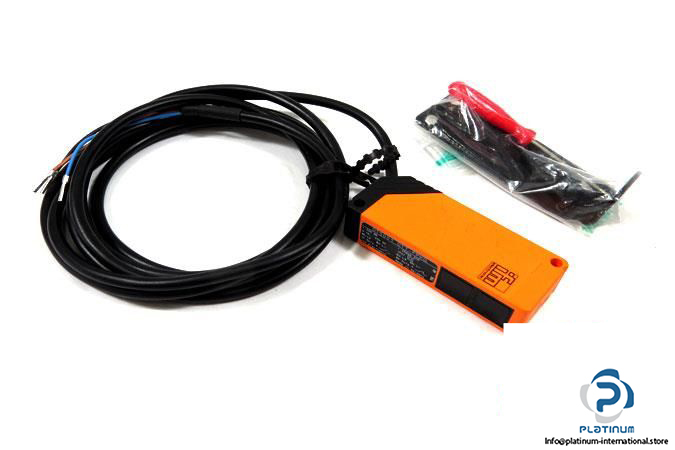

Supplied Accessories: Angle bracket: 1 x E20441,screwdrivers

Condition: New
