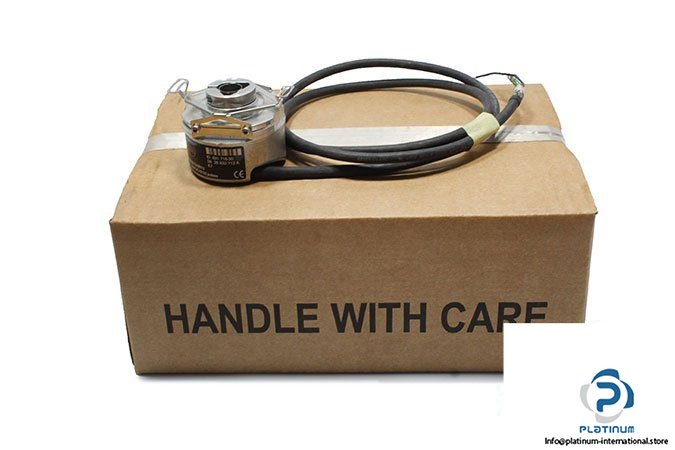

IFM RM6102 Multiturn Hollow Shaft Encoder
325,00$
MULTITURN-HOHLWELLE ENCODER Der ifm RM6102 Encoder bietet eine Multiturn-Rückmeldung mit 8192 Auflösung, arbeitet mit 10“30 VDC mit robustem Aluminiumgehäuse, 12 mm Stahlwelle und SSI-Ausgang. Stoßfest und IP64-geprüft für den industriellen Einsatz.
IFM RM6102 MULTITURN HOLLOW SHAFT ENCODER
The ifm RM6102 is a high-precision multiturn hollow shaft encoder engineered for industrial automation and motion control systems. With superior resistance to shock, vibration, and temperature extremes, this encoder is ideal for harsh industrial environments requiring high-resolution position feedback.
Manufacturer: ifm
Type: Multiturn Hollow Shaft Encoder

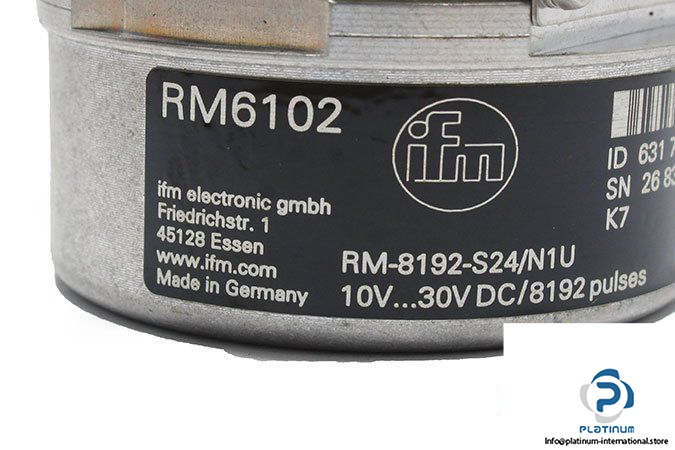

Model: RM6102
MRN: RM-8192-S24/N1U
| Operating Voltage | 10 / 30 VDC |
| Current Consumption | < 200 mA |
| Inputs | Reversal of direction of rotation, reset to zero |
| Output Function | SSI data interface |
| Max. Permissible RPM (Mechanical) | 10000 1/min |
| Starting Torque (at 20°C) | < 1 Ncm |
| Max. Shaft Load | Axial 10 N, Radial 20 N |

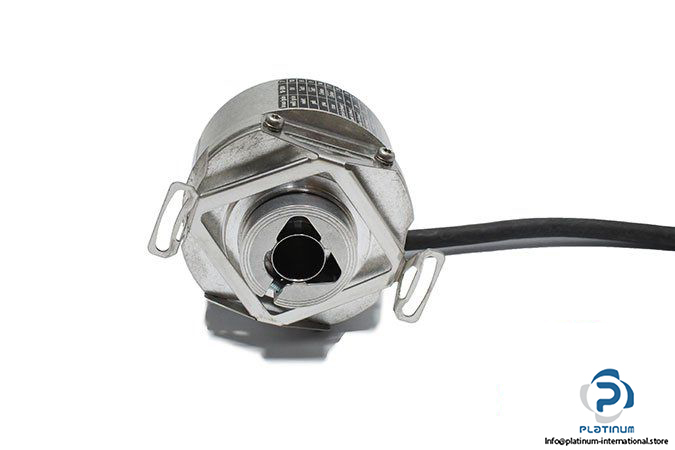

| Shaft Material | Hollow shaft (one side open), 12 mm, Steel (1.4104) |
| Max. Axial Shaft Alignment | ± 1 mm |
| Vibration Resistance | 30 g (55 / 2000 Hz) |
| Shock Resistance | 100 g (6 ms) |
| Housing Material | Aluminium |
| Ambient Temperature Range | -40 / 85°C |

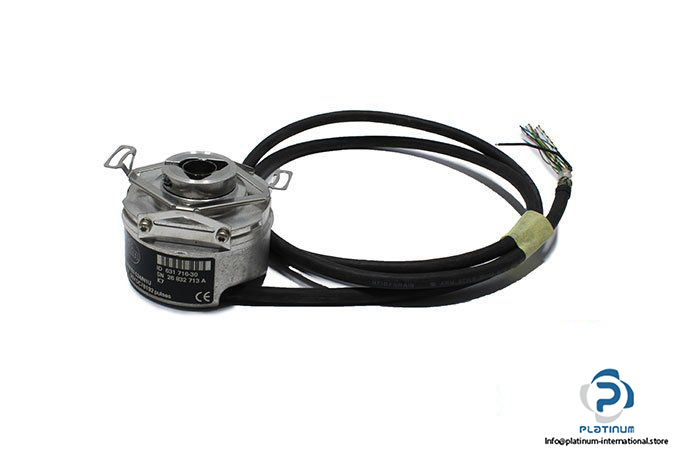

| Connection | PUR cable, 1 m, radial (can also be used axially) |
| Max. Cable Length | 100 m |
| Pulses/Resolution | 8192 |
| Protection Class | IP 64 |
