IFM RV-0500-I24/S M Incremental Encoder
Gebraucht
Auf Lager1 EinheitVersandbereit
INCREMENTAL ENCODER Der IFM RV6106 ist ein Inkrementalgeber mit Vollwelle, 500 Auflösung, HTL-Design, 10–30 V DC Eingang und IP64 Schutz, ideal für präzise industrielle Anwendungen.
10“30V500AutomationdcEncoderHTLifmIncrementalIndustrialIP64MotionResolutionRV6106SensorshaftSignalSolid
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

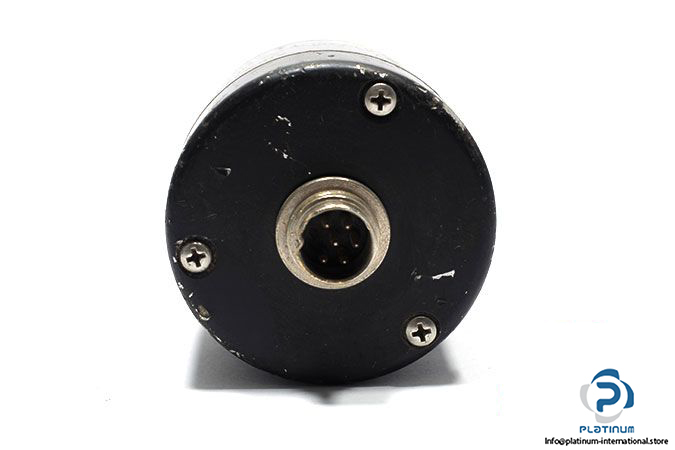

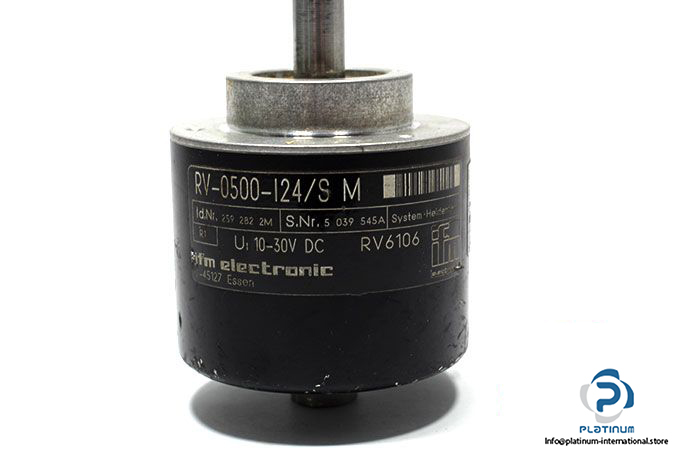

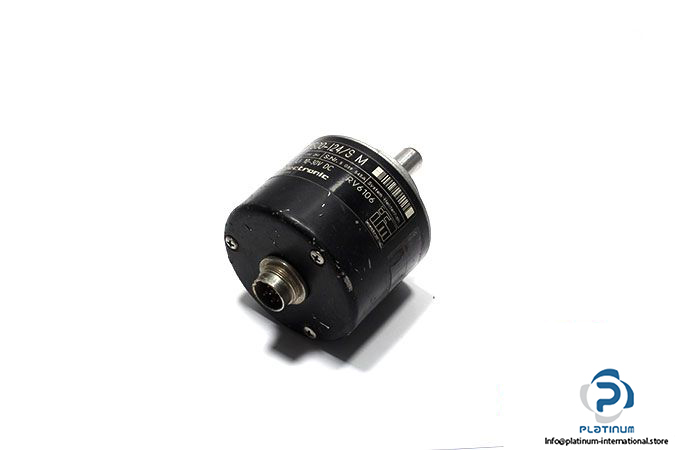

IFM RV6106 INCREMENTAL ENCODER
The IFM RV6106 is a high-resolution incremental encoder engineered for reliable signal output and precision positioning. Built for robust industrial environments, it combines a solid shaft design with durable IP64 protection and HTL electrical design, making it ideal for automation systems and motion control applications.
Manufacturer: ifm
Type: Incremental Encoder
Model: RV6106
MRN: RV-0500-I24/S M
ID No.: 259 282 2M
S No.: 5 039 545A
| Shaft Design | Solid Shaft |
| Resolution | 500 Resolution |
| Operating Voltage | 10 / 30 V DC |
| Current Consumption | 150 mA |
| Electrical Design | HTL |
| Switching Frequency | 300 kHz |
| Ambient Temperature | -40 / 100 °C |
| Output Connection | 6-pin (Connector: ifm 1013.1, axial) |
| Shaft Size | 10 mm |
| Dimensions | Diameter 58 mm / Length 82.5 mm |
| Protection Rating | IP64 |
