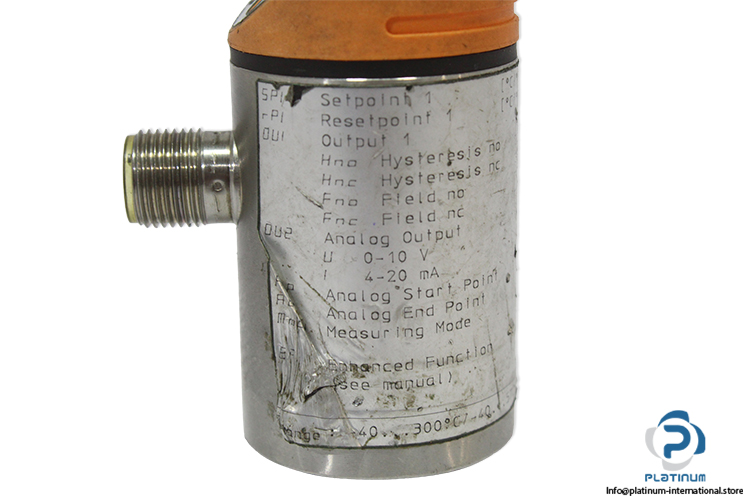

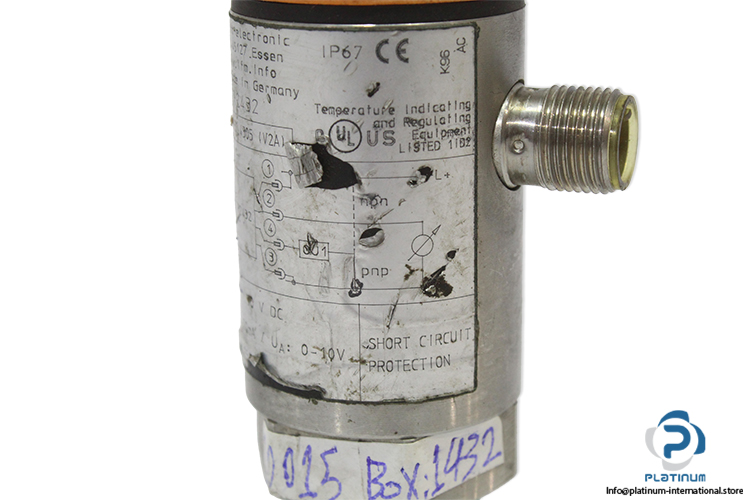

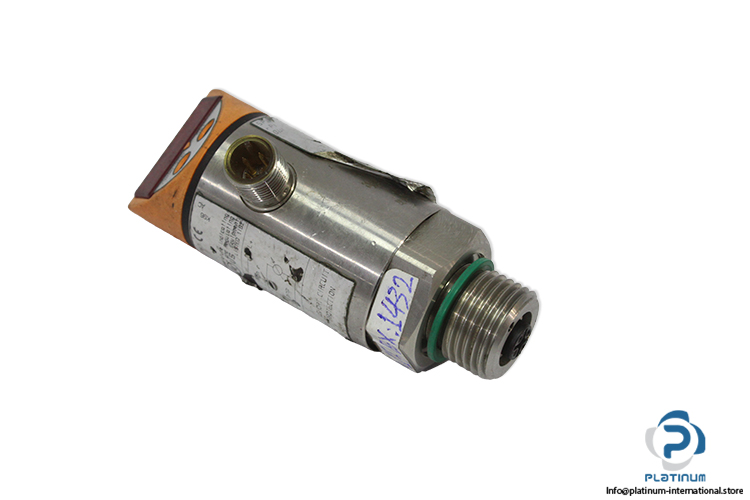

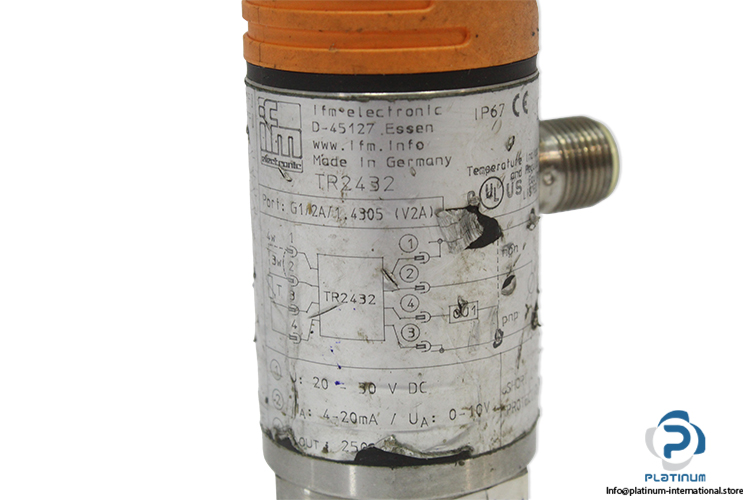

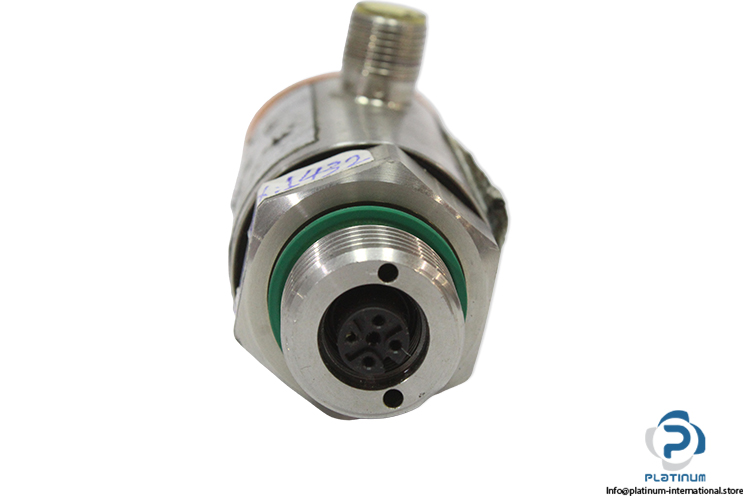

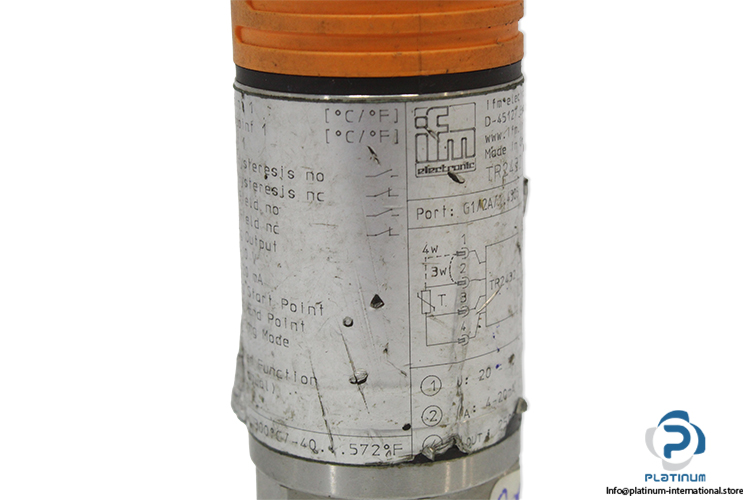

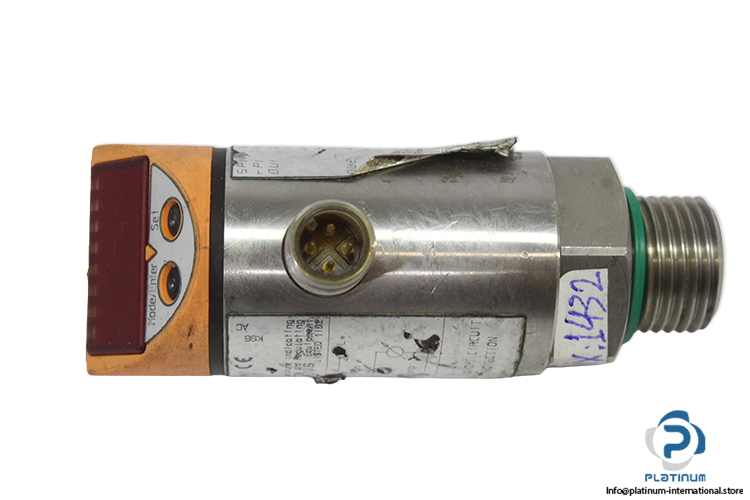

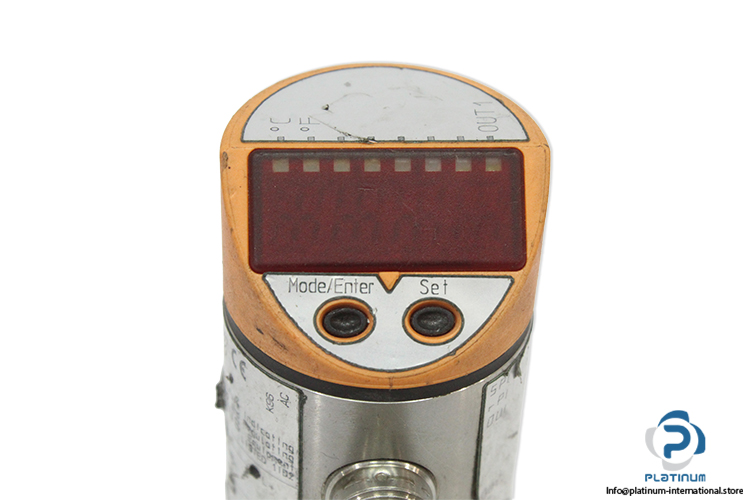

IFM TR2432 Evaluation Unit
Gebraucht
Auf Lager1 EinheitVersandbereit
Evaluation Unit with Display for PT100/PT1000 Temperature Sensor The IFM TR2432 is an industrial evaluation unit for Pt100 and Pt1000 temperature sensors, featuring an integrated display, IO-Link communication, configurable switching outputs, and a 4–20 mA analogue output for reliable process temperature monitoring.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Application | for Pt100 and Pt1000 Measuring Elements |
| Pressure Measuring Range | -40 ... 300 °C |
| Switching Output | 2 x PNP or 2 x NPN Switchable |
| Switching Element Function | NC / NO Contact Switchable |
| Communication Interface | IO-Link |
| Output Current Max. | 250 mA |
| Operating Voltage Range | 18 … 32 V DC |
| Current Consumption Max. | 50 mA |
| Digital Outputs No. | 1 |
| Analogue Outputs No. | 1 |
| Analogue Current Output | 4 ... 20 mA |
| Port Size | G1/2 |
| Condition | Used |
| SKU | 1102789 |
| Weight | 0,22 |
