IFM VS2000 EXI Control Monitor FOR Flow Sensor

Name: IFM VS2000 EXI CONTROL MONITOR FOR FLOW SENSOR
SKU: 1086773
Availability: LimitedAvailability

ifm-VS2000-EXI-control-monitor-for-flow-sensor-used

ifm-VS2000-EXI-control-monitor-for-flow-sensor-used-1

ifm-VS2000-EXI-control-monitor-for-flow-sensor-used-2

Gebraucht

Auf Lager1 EinheitVersandbereit

CONTROL MONITOR FOR FLOW SENSOR

IFM VS2000 EXI Control Monitor for Flow Sensor, 230 V AC, 5 VA, 1 channel, IP40 protection, with 4 A contact rating and wide operating tolerance for industrial applications.

Hersteller

IFM

SKU

1086773

Kategorie

Sensors

Zustand

Gebraucht

230v AC AND Control Device EXI flow ifm Industrial IP40 Monitor monitoring Sensor SN2301 VS2000 wire

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

IFM VS2000 EXI CONTROL MONITOR FOR FLOW SENSOR

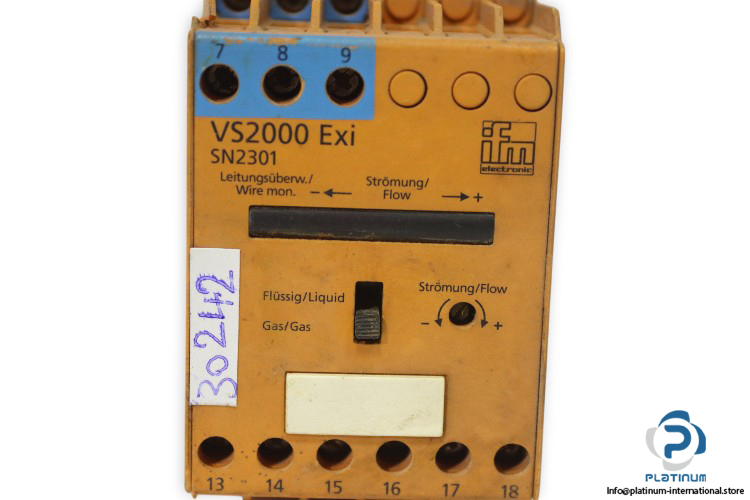

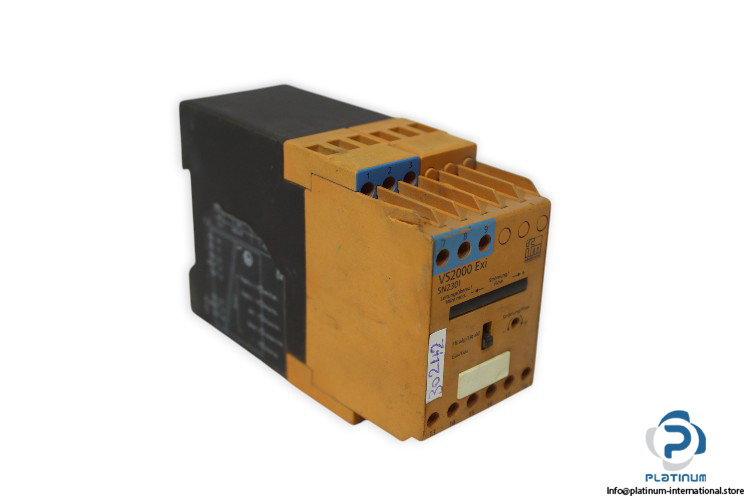

The IFM VS2000 EXI (Part No. SN2301) is a high-quality control monitor for flow sensors, designed for reliable flow and wire monitoring in industrial environments. Built with robust protection and precise monitoring features, it ensures dependable operation under demanding conditions.

Manufacturer: IFM

Type: Control Monitor for Flow Sensor

Model: VS2000 EXI

Part No.: SN2301

Application	Flow monitoring, Wire monitoring
Frequency AC	47 to 63 Hz
Operating Voltage Tolerance	-10 to +10 %
Operating Voltage	230 V AC
Max. Power Consumption	5 VA
Reverse Polarity Protection	No
Power-on Delay Time	30 s

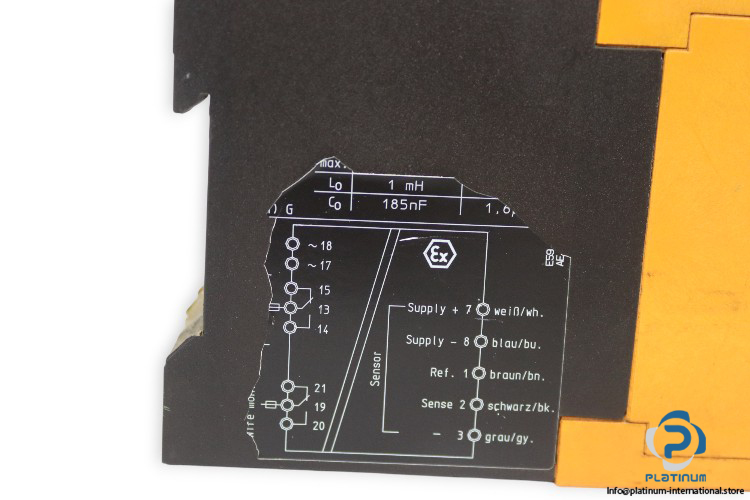

External Inductance	1 mH
External Capacitance	185 µF
Number of Channels	1
Contact Rating	4 A (250 V AC cos Ï† > 0.7); 0.2 A (250 V DC); 4 A (24 V DC)
Ambient Temperature	-20 to 60 °C
Protection	IP 40
Dimensions	78 x 45 x 120 mm
