Gelenkauge Igus KBLM10 linkshändiges Gelenkauge mit Innengewinde M10, entwickelt für kontrolliertes Schwenken und statische Lastaufnahme in industriellen Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

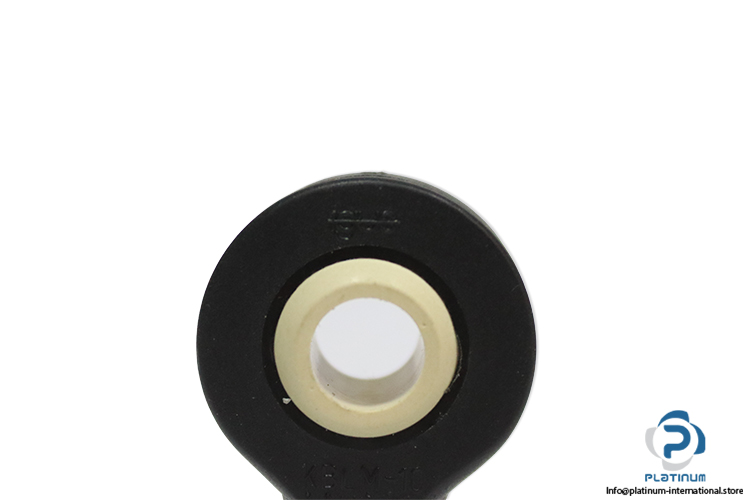

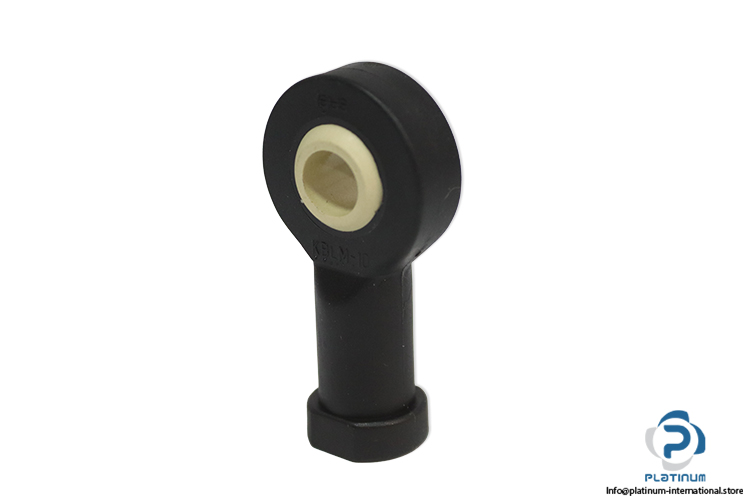

Igus KBLM10 Left-Hand Rod End
The Igus KBLM10 is a left-hand rod end with female thread, engineered for precise articulation and reliable load handling in industrial mechanical applications. Its compact design allows smooth pivoting while maintaining stable performance under static loads.
Manufacturer: Igus
Type: Left-Hand Rod End with Female Thread
Model: KBLM10

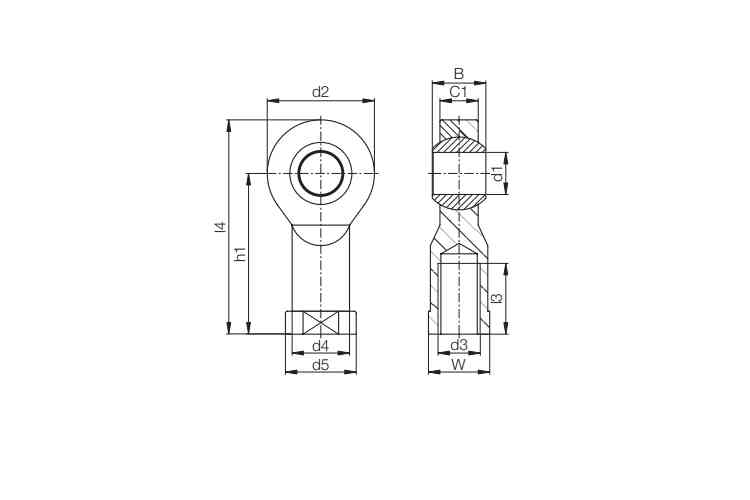

| Width B | 14 mm |
| Thread d3 | M10 |
| Hole Diameter d1 | 10 mm |
| Max. Pivot Angle | 25° |
| d2 | 30 mm |
| d4 | 15 mm |
| d5 | 19 mm |
| C1 | 10.5 mm |
| h1 | 43 mm |
| L1 | 20 mm |
| L2 | 58 mm |
| Maximum Static Tensile Stress (Short-Term) | 3,100 N |
| Maximum Static Tensile Stress (Long-Term) | 1,550 N |
| Maximum Radial Static Strength (Short-Term) | 800 N |
| Maximum Radial Static Strength (Long-Term) | 400 N |
| Max. Tightening Torque (Lead Screw) | 15.00 Nm |
| Max. Tightening Torque (Through Spherical Ball) | 20.0 Nm |
