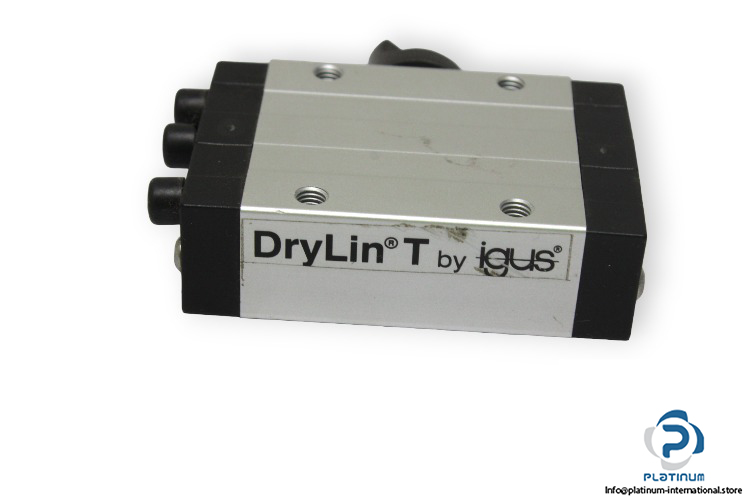

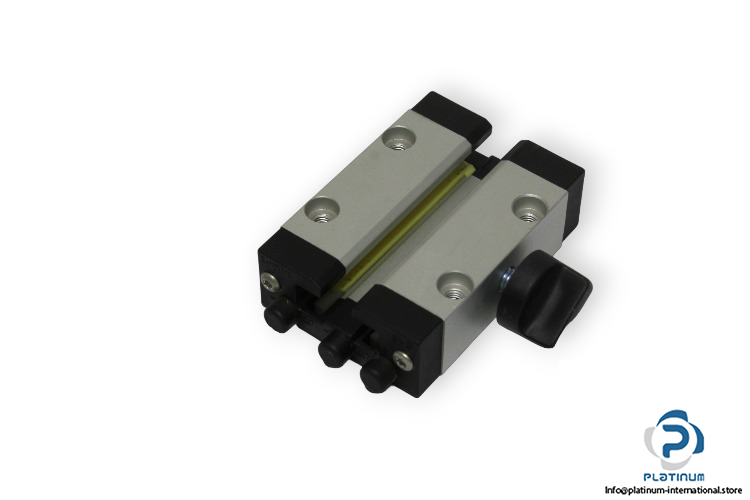

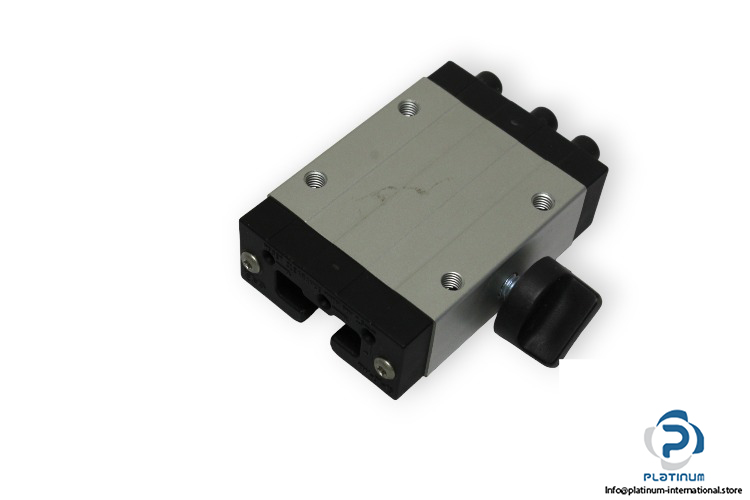

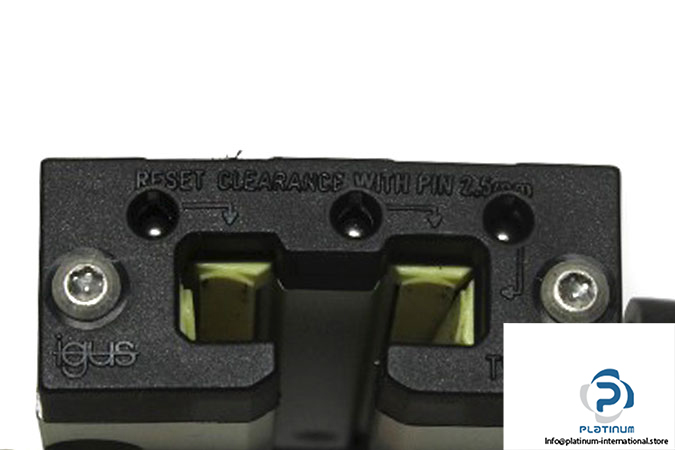

Igus TW-01-15 Linear Guide Carriage
Manufacturer: IGUS
Type: GUIDE CARRIAGE
Model: TW-01-15
Size: 15

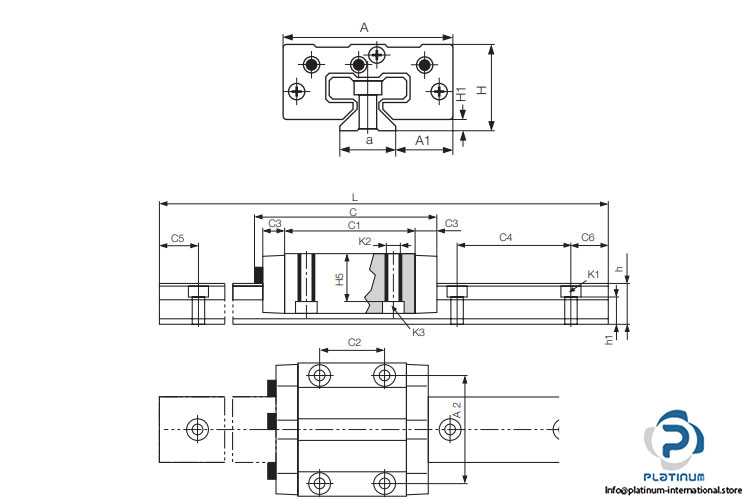

Dimensions
Total Height H: 24 mm
Block Height: 20 mm
Block Width A: 47 mm
Block Length: 70 mm
Block Length Total C: 74 mm
C1: 50 mm
A2: 38 mm
C2: 30 mm
Block Type: Square Type
Mounting Hole: 4 tapped holes
Torque Max.: 1.5 Nm
Maximum permissible load: 2000 N
Temperature range: -40 °C to +90 °C
Available Rail length: 250 mm
