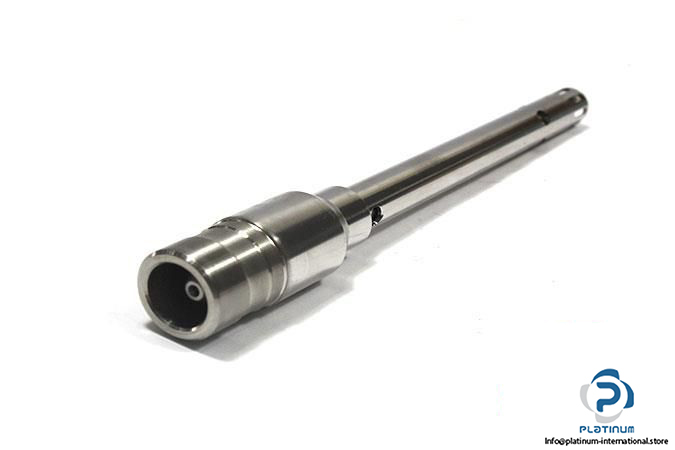

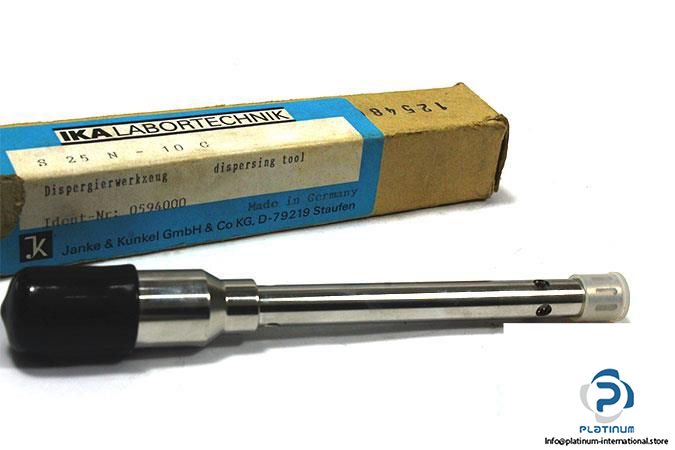

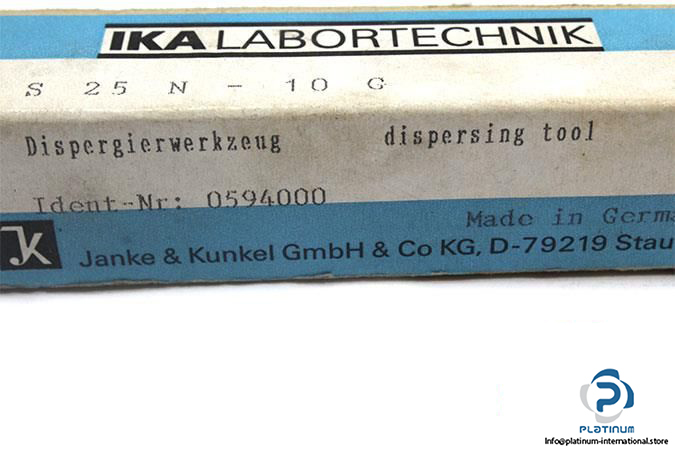

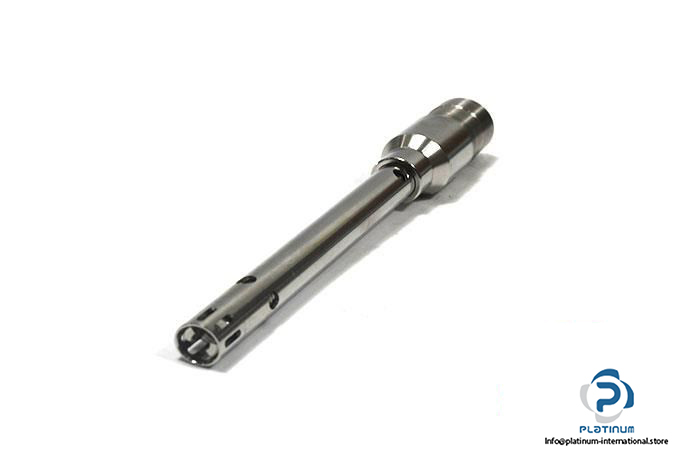

IKA S25N-10G Dispersing Tool

Manufacturer: IKA

Type: DISPERSING TOOL

Model: S 25 N – 10 G

Identity No: 0594000

IKA Dispersing technology works by using the rotor stator principle. the system consists of a rotor within a stationary stator

due to the high circumferential speed, the medium to be processed is drawn axially into the dispersion head and then forced radially through the stator in the rotor – stator arrangement.

Working Range: 1 … 100 ml

Stator Diameter: 10 mm

Rotor Diameter: 7.5 mm

Shaft Length: 105 mm

Gap between Rotor and Stator: 0.35 mm

Material: PTFE, AISI 316L

PH Range: 2 … 13

Temperature: 180°C

Weight: 0.12 kg

Condition: New
