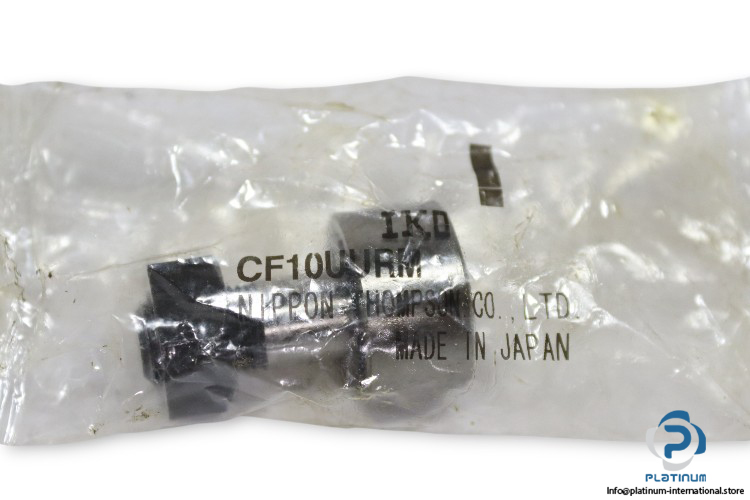

IKO CF10UURM CAM Follower
Neu
Auf Lager2 EinheitenVersandbereit
Nockenrolle IKO CF10UURM Nockenrolle mit gekrümmtem Außenring, UU-Dichtung auf beiden Seiten, hohe Tragfähigkeiten und M10 x 1 Gewindestift für industrielle Bewegungs- und Führungssysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

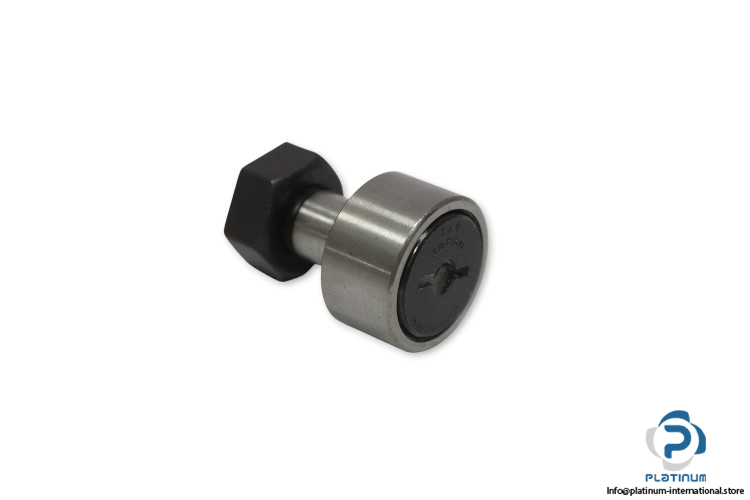

IKO CF10UURM Cam Follower
The IKO CF10UURM is a precision cam follower with a crowned outer ring and screwdriver slot, designed to provide smooth rolling motion, high load capacity, and reliable guidance in industrial motion systems.
Manufacturer: IKO
Type: Cam Follower with Screwdriver Slot
Model: CF10UURM
| Outside Diameter (D) | 22 mm |
| Inner Diameter (d) | 10 mm |
| Width (B) | 12 mm |
| Outer Ring Width (C) | 12 mm |
| Thread Stud (G) | M10 x 1 |
| Dynamic Load Rating | 5430 N |
| Static Load Rating | 6890 N |
| Track Load Capacity | 1610 N |
| Sealing | UU (With Seal) |
| Material | High Carbon Steel |
| UU Design | Lip Seals on Both Sides (P Type “ Two Zinc-Plated Sheet Steel Washers with Intermediate NBR Part, Seal Lip Axially Preloaded) |
| Outer Ring Profile | Crowned (R) |
