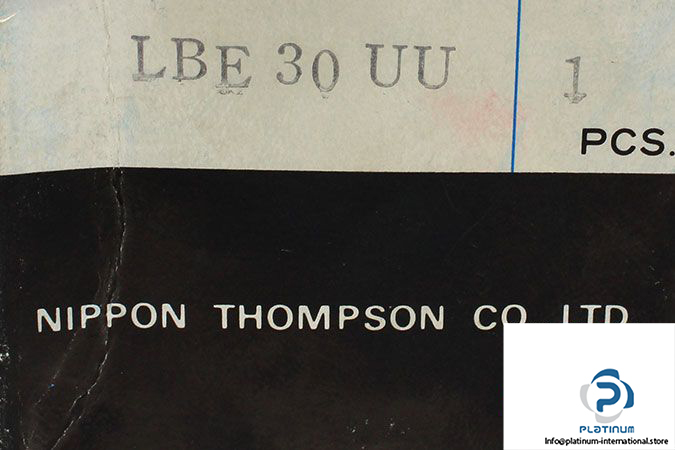

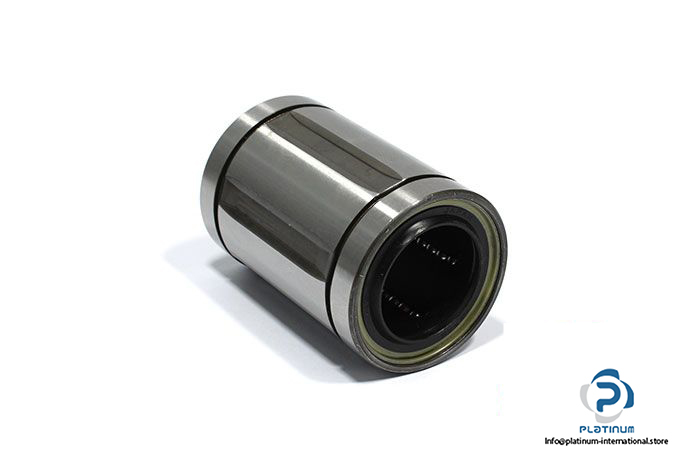

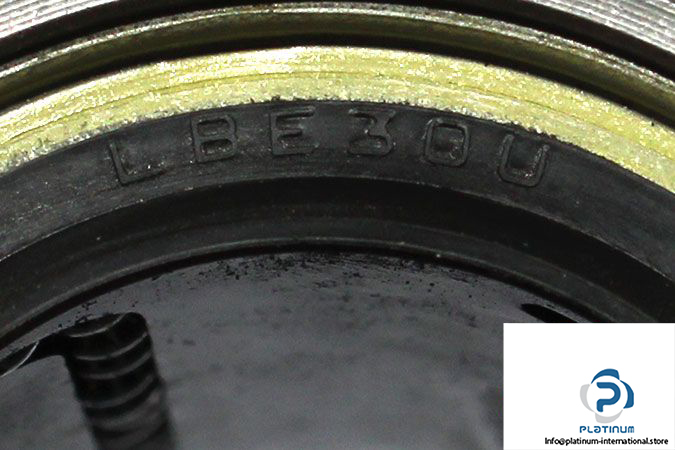

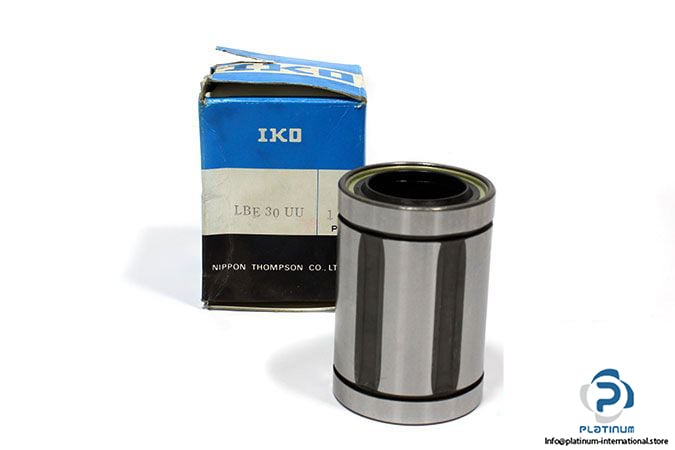

IKO LBE 30 UU Closed Linear Ball Bushing

Manufacturer: IKO

Type: Linear Bushing

Model: LBE30UU

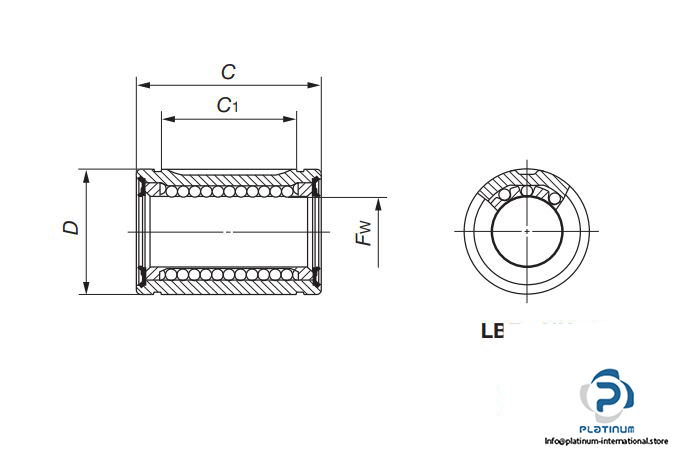

Dimensions:

Inner diameter F_W: 30 mm

Outer diameter D: 47 mm

Length C: 68 mm

C₁: 48 mm

Design type: Closed

Rows of Balls: 6

Dynamic load rating: 1560 N

Static load rating: 3060 N

Seals: UU, With two end seals

Weight: 0.32 kg
