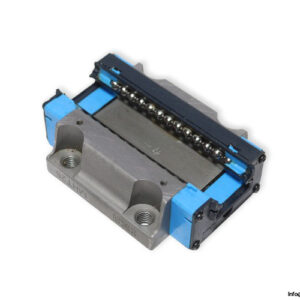

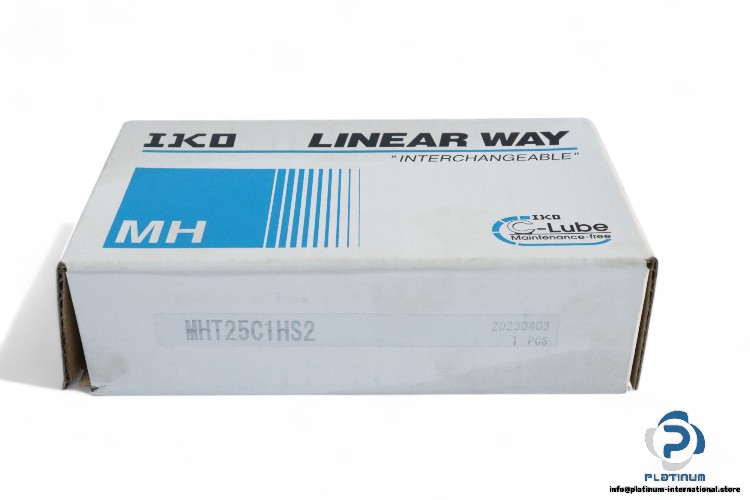

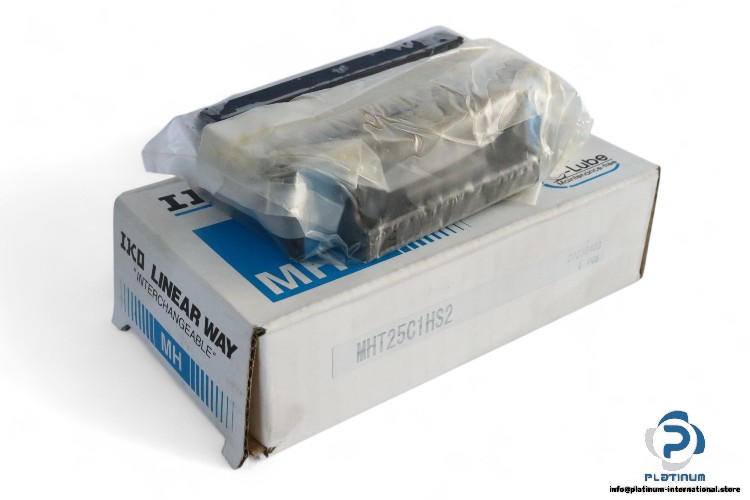

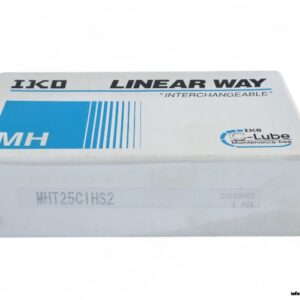

IKO MHT25C1HS2 Sleeve Linear WAY

Manufacturer: IKO
Type: SLEEVE LINEAR WAY
Model: MHT 25 C1 H S2

Size: 25 mm
Block Type: Flange type
Series: MHT, mounting from bottom

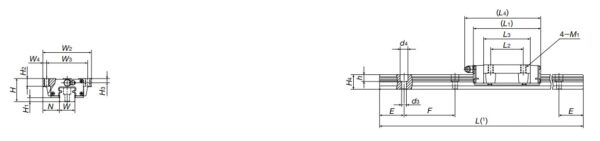

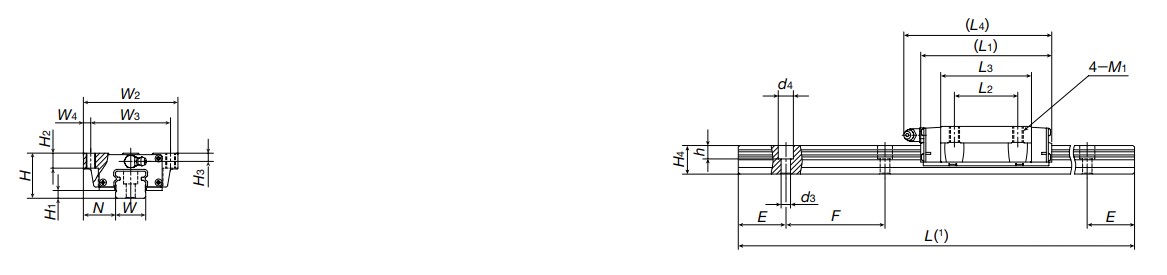

Dimensions
Block Length L1: 95 mm
Block Width W2: 70 mm
System Height H: 36 mm
Block Height: 29.5 mm
W3: 57 mm
L2: 45 mm
L3: 63.9 mm
N: 23.5 mm
Basic Load Ratings:
Dynamic C: 25200 N
Static C0: 28800 N
Accuracy class: H, High
Number of slide units: C1, 1
Interchangeable code: S2, interchangeable specification
