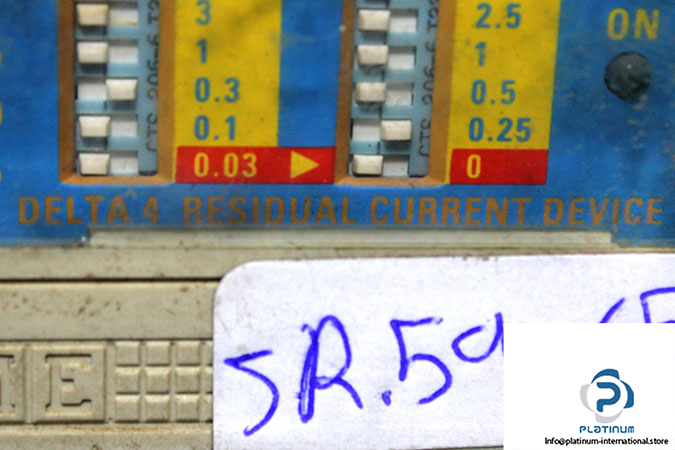

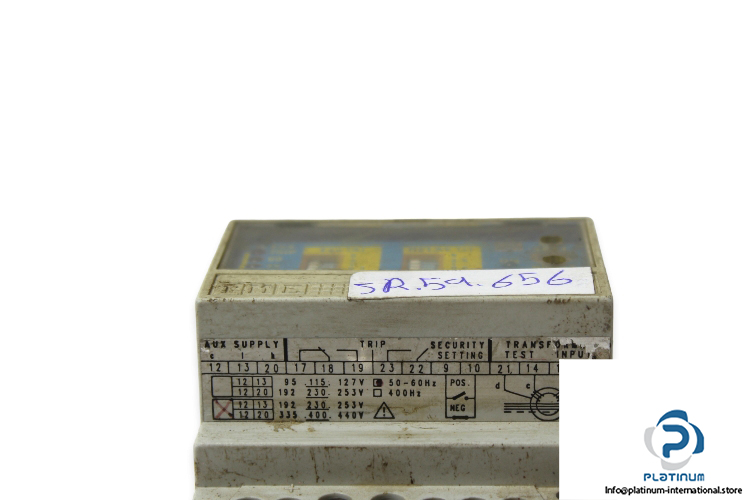

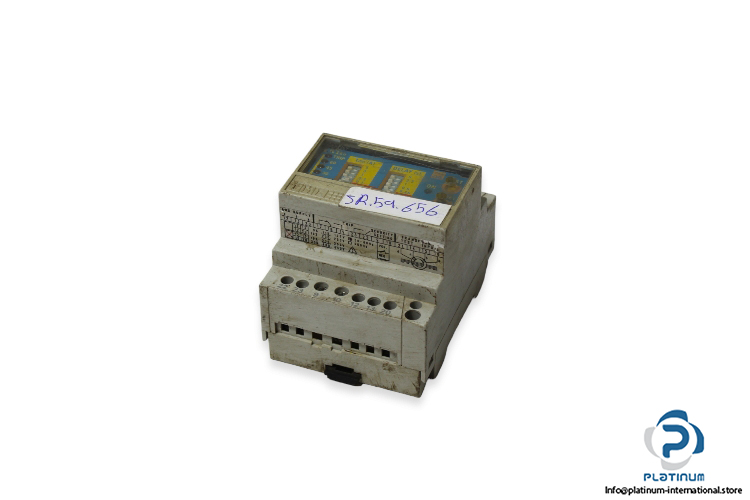

IME Delta 4 Four Module Earth Leakage Relay Alarm

Manufacturer: Ime

Type: Four Module Earth Leakage Relay Alarm

Model: DELTA 4

Output relays: 2 Change-over contacts (1 Single pole single through + 1 Single pole double through)



Auxiliary Supply

Rated value: 115, 230, 400 V

Tolerance: 95…127V (Uaux 115V), 192…253V (Uaux 230V), 335…440V (Uaux 400V)

Frequency: 50 / 60 Hz

Operating Temperature: -10 … 55°C

Degree of Protection: IP40 front frame, IP20 terminals

Connections: screw terminals for cable up to 4 mm2

Mounting: rail 35mm (EN50022) or screw-type

Housing material: self-extinguishing makrolon
