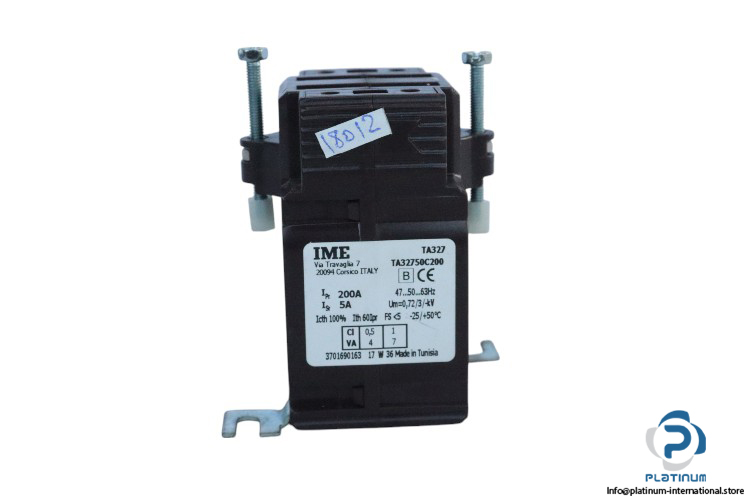

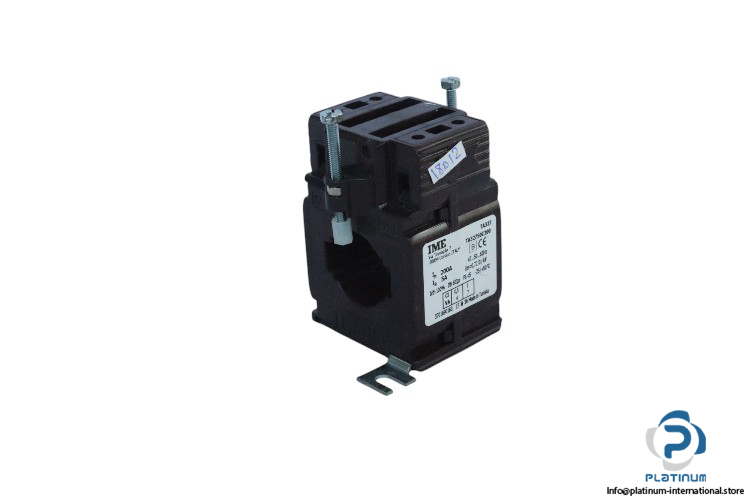

IME TA32750C200 Current Transformer
IME TA32750C200 Stromwandler „TA327 Serie Hochgenauer Stromwandler mit einem Stromverhältnis von 200/5A, Frequenz 47-63 Hz und kompakter Bauweise. Ideal für industrielle und gewerbliche Anwendungen.
IME TA32750C200 Current Transformer “ TA327 Series
The IME TA32750C200 is a high-performance current transformer from the TA327 series, designed for precise current measurement and protection in electrical systems. With a compact design and high accuracy, it ensures reliable monitoring of electrical loads.
Key Details:
Manufacturer: IME
Type: Current Transformer
Model: TA32750C200
Series: TA327
This **compact and efficient** current transformer is ideal for applications requiring **accurate current measurement** in **low and medium voltage electrical networks**. It ensures **reliable performance** in **industrial and commercial installations**.
| Current Ratio | 200/5A |
| Voltage Um | 0.72/3 kV |
| Accuracy Class | 0.5/1 |
| Frequency | 47 to 63 Hz |
| Power | 4/7 VA |
| Diameter | 27 mm |
| Operating Temperature | -25 to 50°C |
| Dimensions | 25.5 x 15.5 mm - 32.5 x 10.5 mm |
