IMI Norgren PRA/802063/M/190 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
IMI NORGREN ISO Cylinder PRA/802063/M/190 is designed for pneumatic applications, with a 63 mm bore diameter and a 190 mm stroke. It features double operation mode, a male piston rod end, and operates with compressed air at 1-12 bar pressure.190°63AirboreCompressedCylinderDoubleEndIMIISOmalemmModeNorgrenOperationPistonPneumaticPRA/802063/M/190PressureRODShapeSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

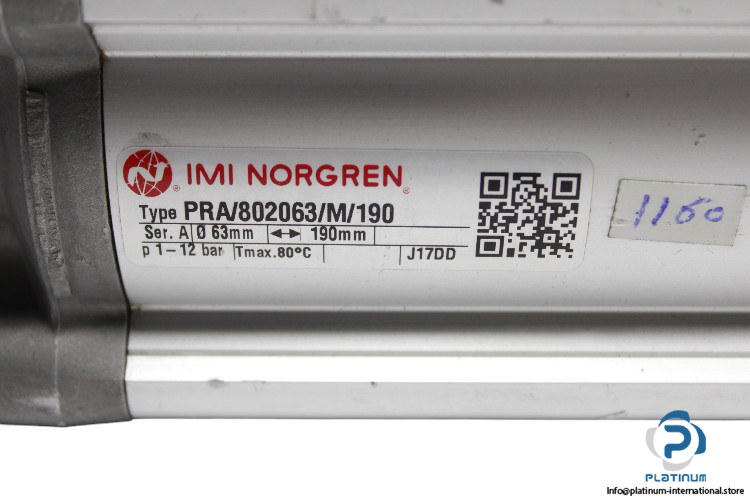

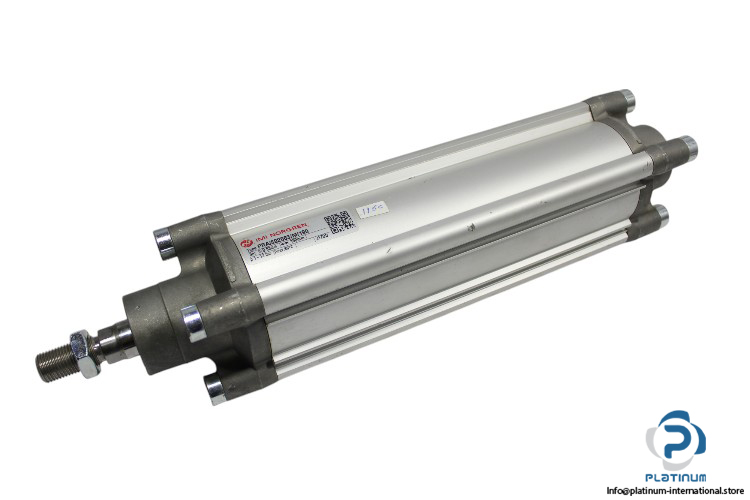

IMI NORGREN ISO Cylinder PRA/802063/M/190
The IMI NORGREN ISO Cylinder PRA/802063/M/190 is designed for high-performance pneumatic applications. This reliable cylinder is built for compressed air use and features a robust design that ensures smooth operation, offering a range of operating pressures for versatile industrial applications.
Manufacturer: IMI NORGREN
Type: ISO Cylinder
Model: PRA/802063/M/190
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 190 mm
- Bore x Stroke: 63 x 190 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 345 mm
- Pneumatic Connection: G 3/8
- Pressure: 1 / 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
