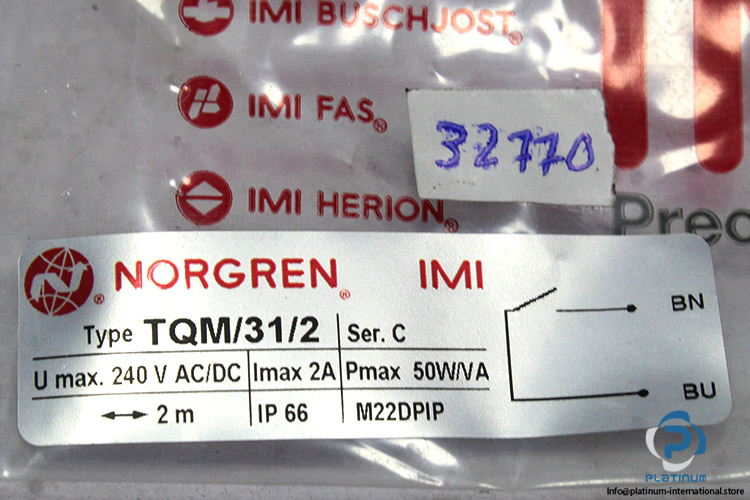

IMI Norgren TQM/31/2 Reed Switch
Neu
Auf Lager6 EinheitenVersandbereit
High Temperature Magnetically Operated Reed Switch IMI Norgren TQM/31/2 reed switch with LED indication, IP66 protection, and high-temperature resistance for industrial automation and pneumatic applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Range | TQM/31 |
| Ser. | C |
| Code | M22DPIP |
| Operation | Reed normally open (AM/32 with LED) /PNP open collector output with LED |
| Voltage a.c. | Reed 10... 240V |
| Voltage d.c. | Reed 10 ... 240V/ Solid State 10... 30 V |
| Current max. | Reed 2 A max |
| Maximum Power | 50 W / VA |
| Operating Temperature | -20 ... 150 °C, -4 ... 302 °F |
| Cable Length | 2 m |
| Configurations | Normally Open (NO) |
| Cable material | Silicone |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099246 |
| Weight | 0,15 |
