Vogel Sp/Sfe 30/3 Impulse Generator
Auf Lager1 EinheitVersandbereit
Vogel Sp/Sfe 30/3 Impulse Generator
IMPULSGENERATOR Vogel SP/SFE 30/3 Impulsgenerator für Schmiersysteme, bietet 300 bar Druckkapazität, 0,1“50 cm³/min Durchflussrate und IP65 bewertete Haltbarkeit für den industriellen Einsatz.
30.3300barControllerDeviceflowGeneratorImpulseIndustrialIP65lubricationMonitorMulti-LinePrecisionProgressiveSensorSp/SfeSystemUnitVogel
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
VOGEL SP/SFE 30/3 IMPULSE GENERATOR

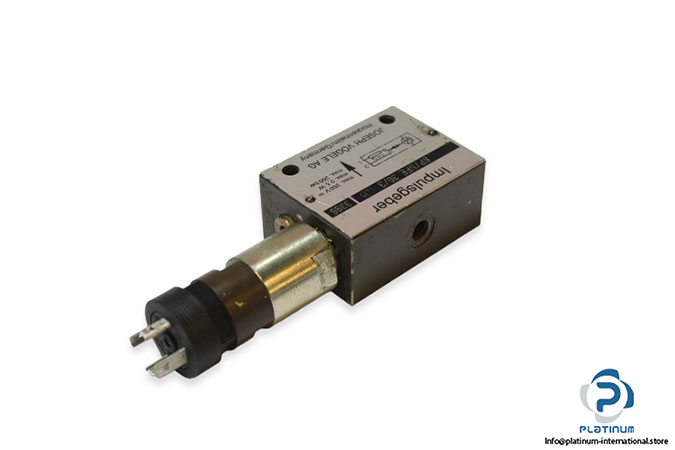

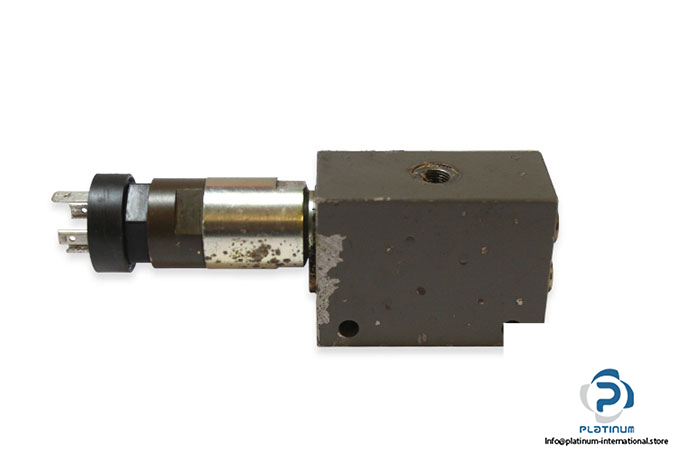

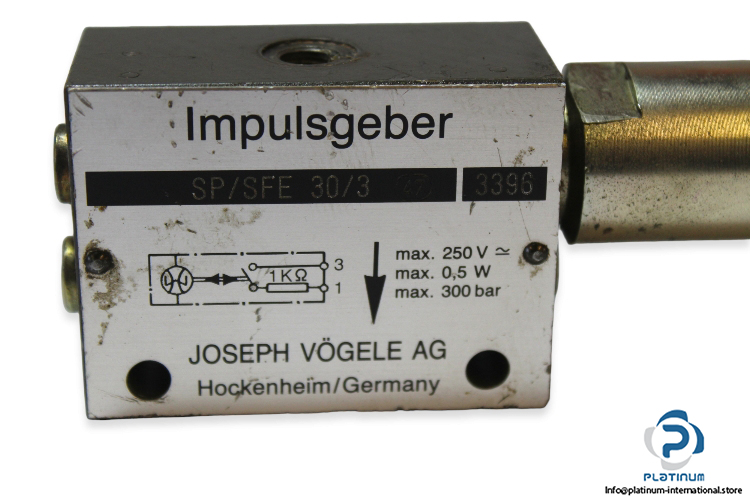

The Vogel SP/SFE 30/3 is a precision impulse generator designed for use in progressive or multi-line lubrication systems. Built for durability and industrial-grade reliability, it supports high-pressure environments and accurate flow control in demanding applications.
Manufacturer: Vogel
Type: Impulse Generator
Model: SP/SFE 30/3
Part No.: 3396
| For Use | Progressive or Multi-line Lubrication Systems |
| Flow Rate | 0.1 to 50 cm³/min |
| Operating Pressure | 300 bar |
| Operating Temperature | -15 to +70 °C |
| Protection Class | IP65 |
| Switching Power | 0.5 W/VA |
| Switching Voltage | 250 V |
| Dimensions | 65 × 170 × 35 mm |
| Spezifikation | Wert |
|---|---|
| Weight | 1 kg |
| Condition | Used |
| Manufacturer | VOGEL |
| Type of Product | Impulse generator |
| Shelf No. | 250731 |
| Part No. | 3396 |
