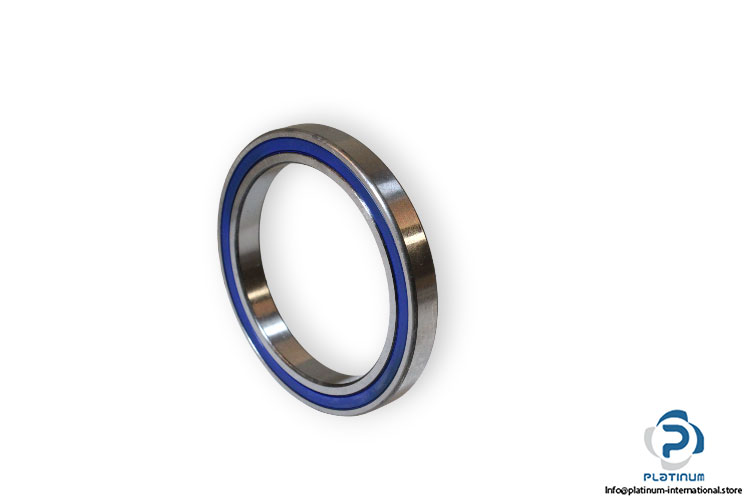

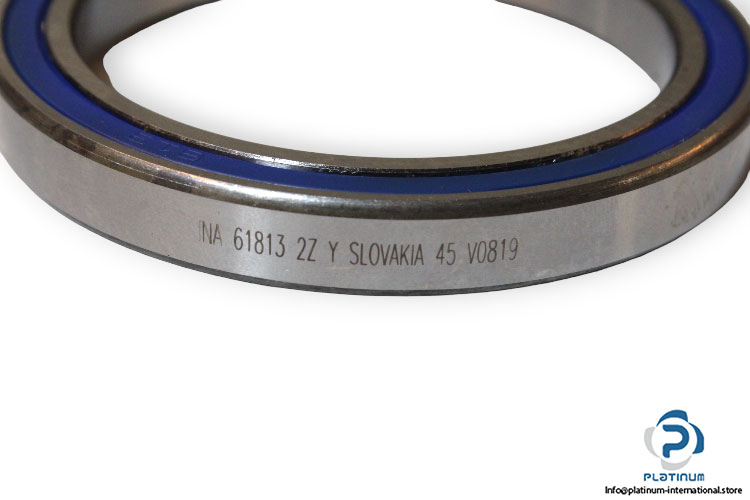

INA 61813 2Z Y Deep Groove Ball Bearing

Manufacturer: Schaeffler INA
Type: DEEP GROOVE BALL BEARING
Model: 61813-2Z-Y

Dimensions:
Bore Diameter d: 65 mm
Outer diameter D: 85 mm
Width: 10 mm
Dynamic load rating: 13000 N
Static load rating: 12000 N
Fatigue load limit: 780 N
Limiting speed: 9600 RPM
Reference speed: 5700 RPM
Cage material: Brass Sheet metal
Sealing: Non-Contact seal on both sides
