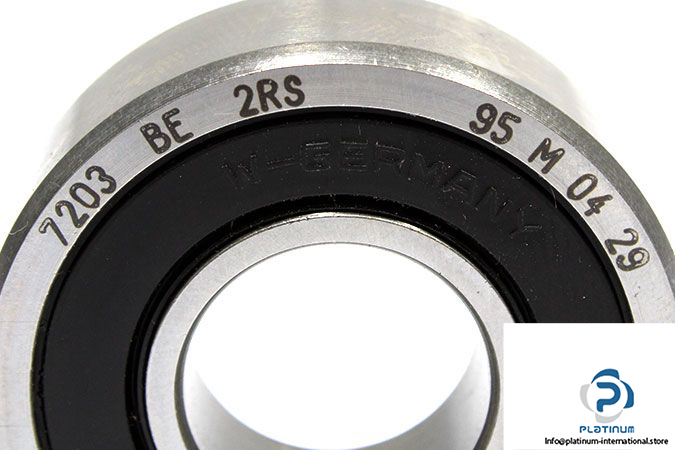

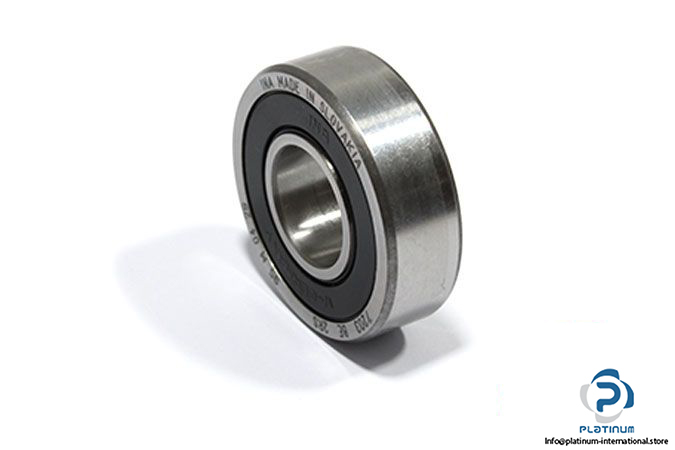

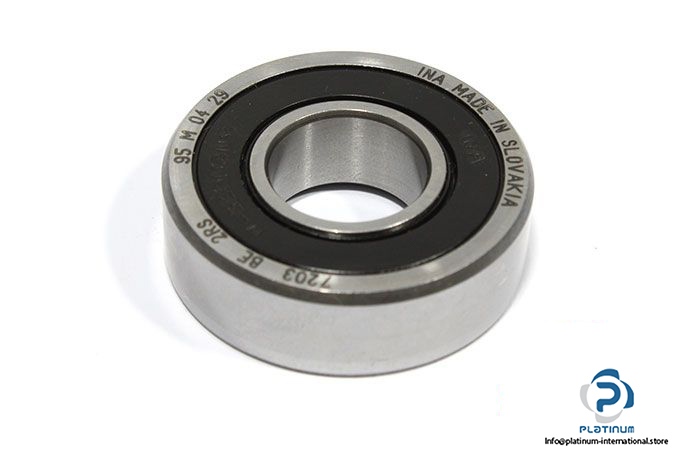

INA 7203 BE 2RS Angular Contact Ball Bearing

Manufacturer: Schaeffler INA

Type: Angular Contact Ball Bearing

Model: 7203-B-2RS-TVP

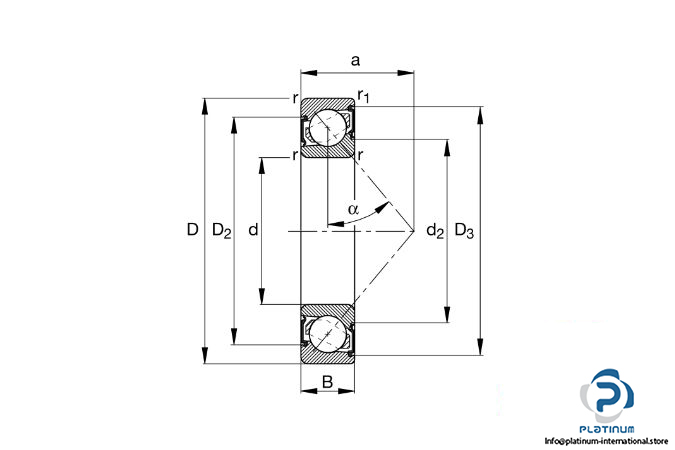

Dimensions

Bore Diameter d: 17 mm

Outer diameter D: 40 mm

Width B: 12 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 12500 N

Static C_0r: 6700 N

Limiting speed: 10000 rpm

Sealing: Contact seal on both sides

Cage: Plastic retainer

Operating Temperature: -20 … +100 °C

Weight: 0.07 kg
