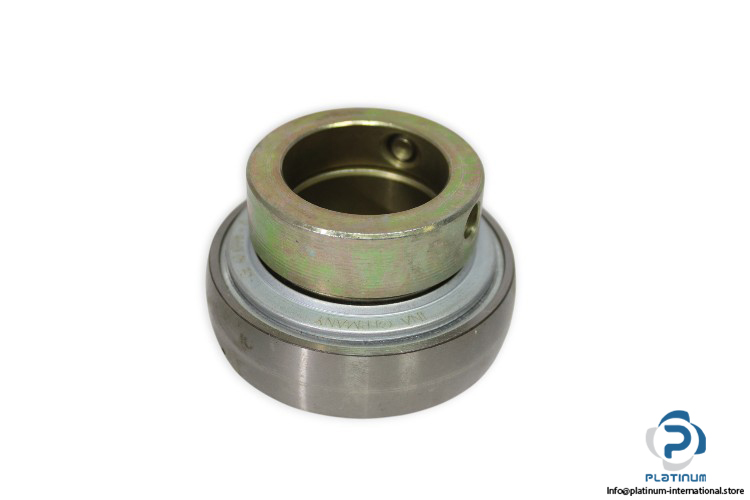

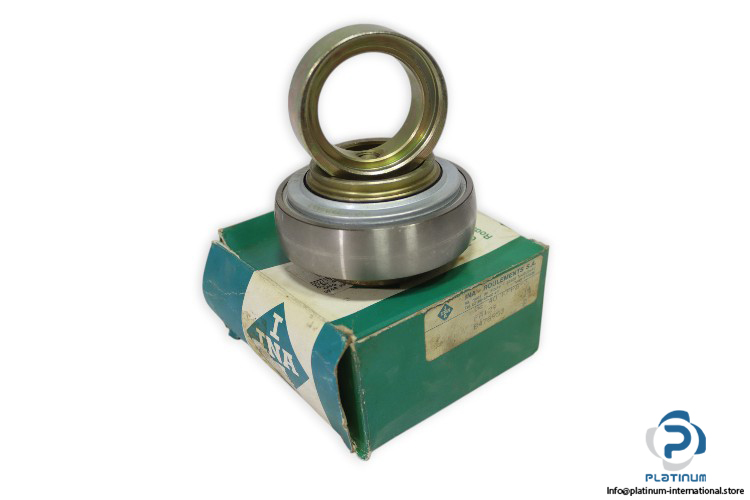

INA GE.40 KPPB-3 Insert Ball Bearing
100,00$
Einlege-Kugellager Das INA / Schaeffler GE.40KPPB-3 Einlege-Kugellager bietet hohe Langlebigkeit mit dreilagigen Dichtungen, 40 mm Bohrung, 80 mm Außendurchmesser und ausgezeichneten Tragfähigkeiten für den Industrie-Maschineneinsatz.
INA / Schaeffler GE.40KPPB-3 Insert Ball Bearing
The INA / Schaeffler GE.40KPPB-3 is a high-quality insert ball bearing designed for robust performance and long service life in industrial applications. It features triple-ply seals on both sides for superior protection against contaminants and excellent grease retention. This bearing offers high load capacity and precise operation, making it ideal for heavy-duty machinery and general mechanical systems.
Manufacturer: INA / Schaeffler
Type: Insert Ball Bearing
Model: GE.40KPPB-3
| Bore Diameter (d) | 40 mm |
| Outside Diameter (D) | 80 mm |
| Width (B) | 42.9 mm |
| Width, Outer Ring (C) | 21 mm |
| Sealing Total Width (C2) | 28.1 mm |
| Distance Raceway (S) | 21.4 mm |
| Rib Diameter Inner Ring (d1) | 52.3 mm |
| Outside Diameter Seal (D1) | 68.3 mm |
| Distance to Lubrication Hole (Ca) | 6.4 mm |
| Outside Diameter Locking Collar / Locknut (d3) | 58 mm |
| Width of Flats (W) | 5 mm |
| Fatigue Load Limit, Radial (Cur) | 840 N |
| Dynamic Load Rating (C) | 34,500 N |
| Static Load Rating (C0) | 19,800 N |
| Sealing | KPP-3, triple-ply seal on both sides |
