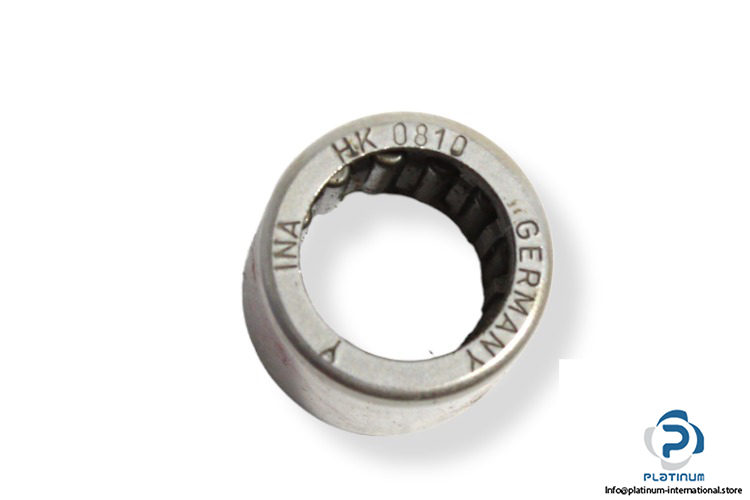

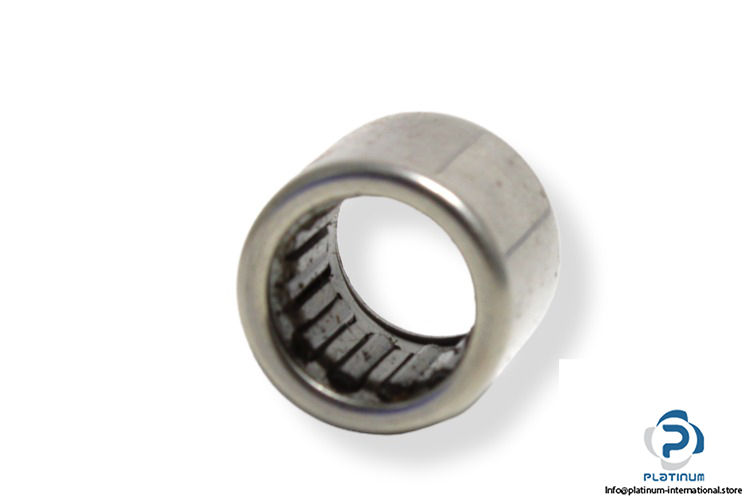

INA HK 0810 Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK0810

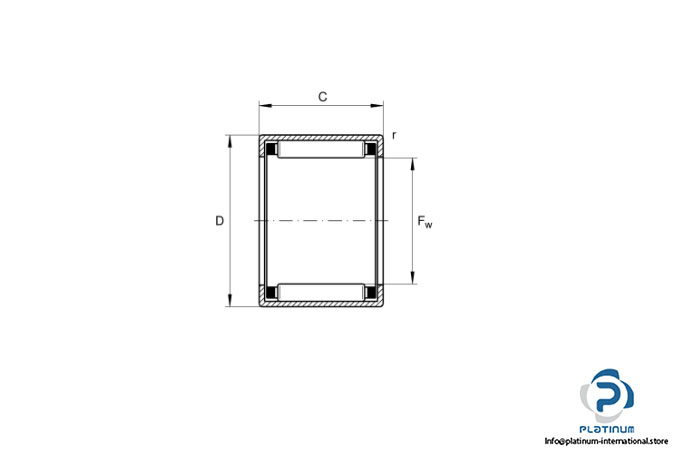

Dimensions

Diameter under rollers F_w: 8 mm

Outer diameter D: 12 mm

Width outer ring C: 10 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.4 mm

Basic load ratings:

Dynamic C: 3800 N

Static C₀: 3950 N

Fatigue load limit P_u: 510 N

Limiting speed: 29500 rpm

Limiting speed for grease lubrication: 17700 rpm

Reference speed: 23200 rpm

Operating temperature: -30 °C…140 °C
