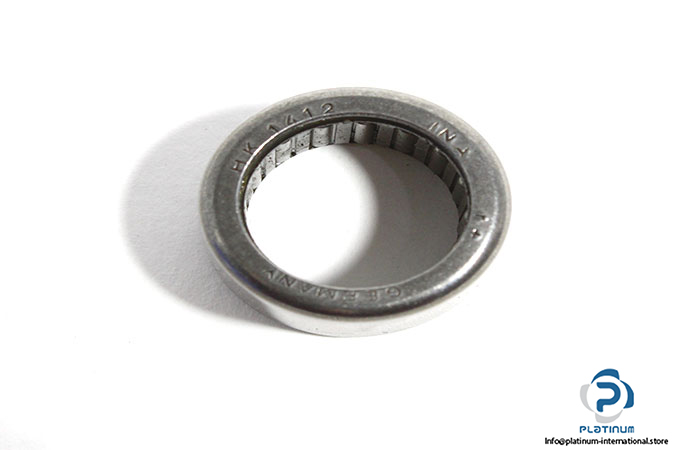

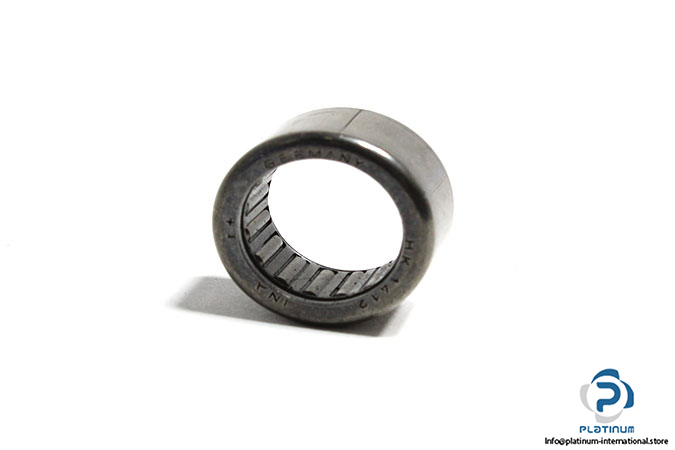

INA HK 1412 Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK1412

Dimensions

Diameter under rollers F_w: 14 mm

Outer diameter D: 20 mm

Width outer ring C: 12 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.8 mm

Basic load ratings:

Dynamic C: 7100 N

Static C₀: 8500 N

Fatigue load limit P_u: 1030 N

Limiting speed: 17500 rpm

Limiting speed for grease lubrication: 10500 rpm

Reference speed: 13500 rpm

Operating temperature: -30 °C…140 °C
