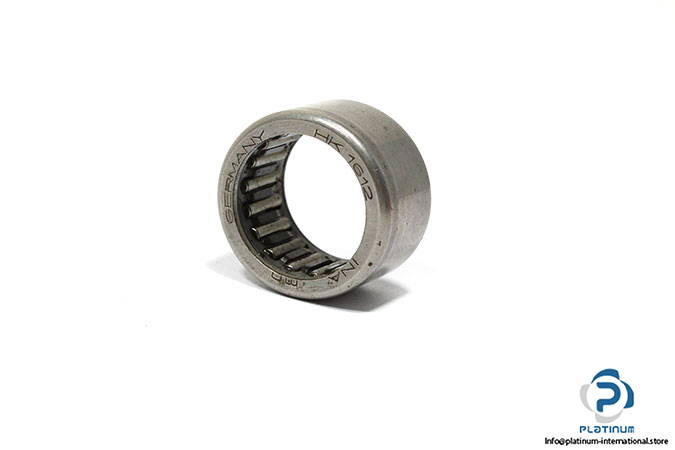

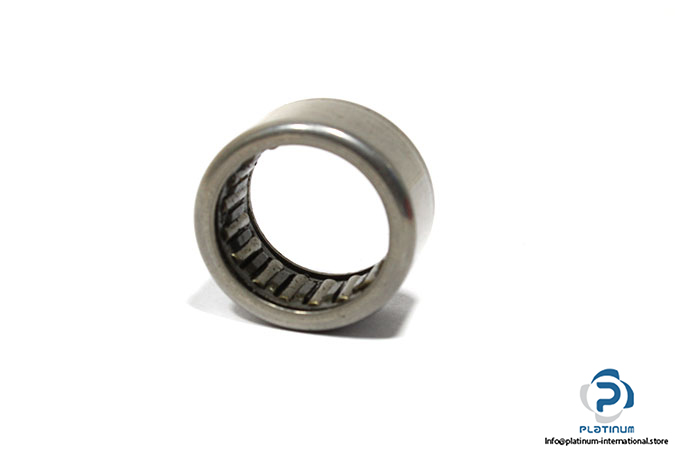

INA HK 1612 Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK1612

Dimensions

Diameter under rollers F_w: 16 mm

Outer diameter D: 22 mm

Width outer ring C: 12 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.8 mm

Basic load ratings:

Dynamic C: 7600 N

Static C₀: 9700 N

Fatigue load limit P_u: 1180 N

Limiting speed: 15600 rpm

Limiting speed for grease lubrication: 9300 rpm

Reference speed: 11900 rpm

Operating temperature: -30 °C…140 °C
