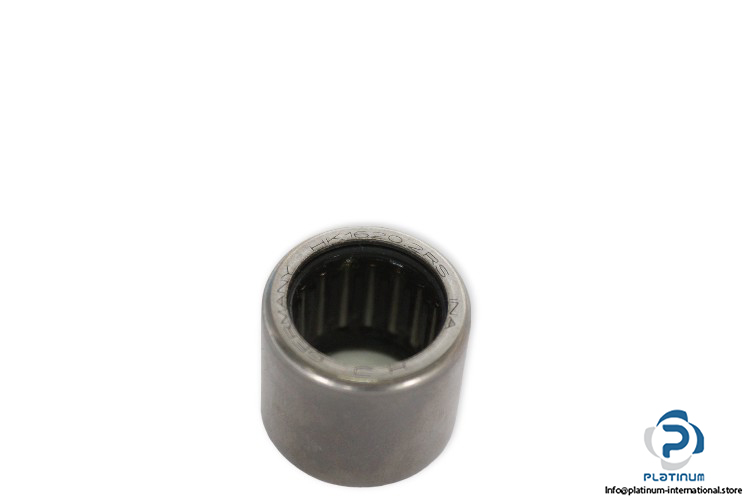

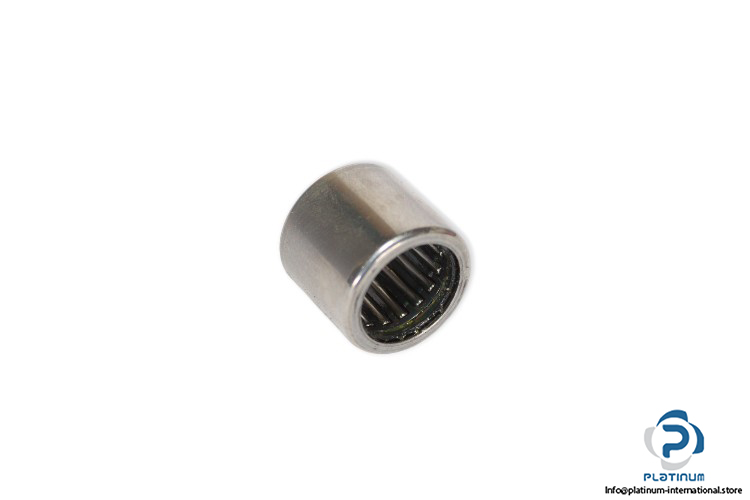

INA HK1620 2RS Drawn CUP Needle Roller Bearing
Neu
Auf Anfrage verfügbar
Typ: Gezeichnete Kegelrollenlager offene Ende
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Manufacturer: Schaeffler INA
Type: Drawn cup needle roller bearing open end
Model: HK 1620 2RS
Dimensions
Diameter under rollers Fw: 16 mm
Outer diameter D: 22 mm
Chamfer dimension drawn cup rmin: 0.8 mm
Basic load ratings:
Dynamic C: 10900 N
Static C0: 15300 N
Fatigue load limit Pu: 1940 N
Limiting speed for grease lubrication: 9300 rpm
limiting speed: 9300 rpm
Operating temperature: -20 °C…100 °C
Sealing: 2RS, Contact seal on both sides
