Bearings Shaft Guiding & Linear Ball Bushings

INA KGBS25-PP-AS Linear Bearing Unit

Name: INA KGBS25-PP-AS LINEAR BEARING UNIT
SKU: 1007079
Availability: LimitedAvailability

ina-KGBS25-PP-AS-linear-bearing-unit-(new)

ina-KGBS25-PP-AS-linear-bearing-unit-(new)-1

ina-KGBS30-PP-AS-linear-bearing-unit-(used)-2

Neu

Auf Lager2 EinheitenVersandbereit

Typ: Linearkugellager- und Gehäseeinheiten

Hersteller

INA?

SKU

1007079

Kategorie

Shaft Guiding & Linear Ball Bushings

Zustand

Neu

25 Ball bearing bearings Bushings d0:Guiding Ina Kgba Linear mm Motion Schaeffler shaft Slides

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: INA
Type: Linear ball bearing and housing units
Model: KGBS 25-PP-AS

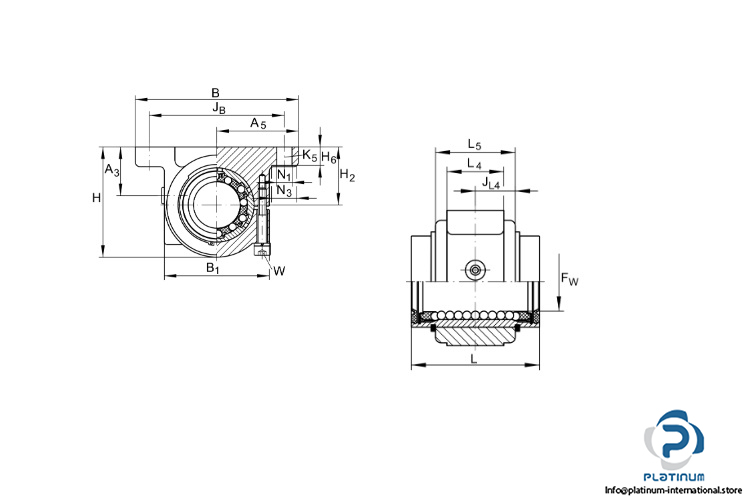

Shaft diameter F_w: 25 mm
Housing width B: 80 mm
Housing Height H: 57.5 mm
Housing Length L: 58 mm
Base to Center Height L5: 40 mm
JB: 68 mm
Design type: Closed Type
Rows of Balls: 6
Basic Load Ratings:
Dynamic C: 2800 N
Static C0: 2200 N
Sealing: PP, Lip Seal on Both Sides of Bearing
