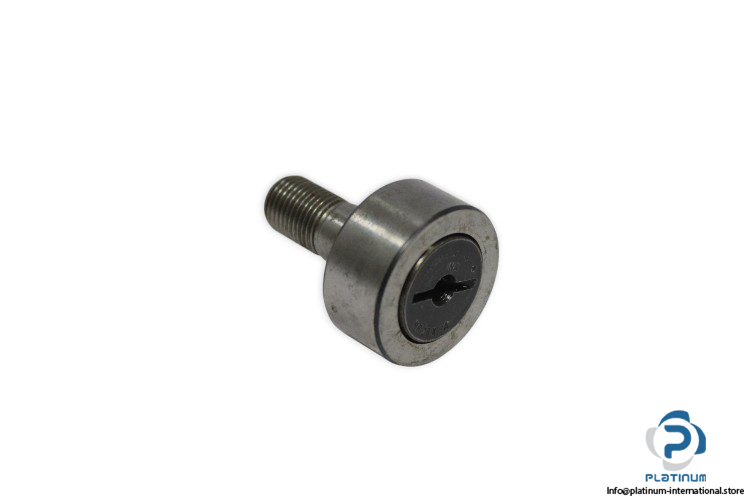

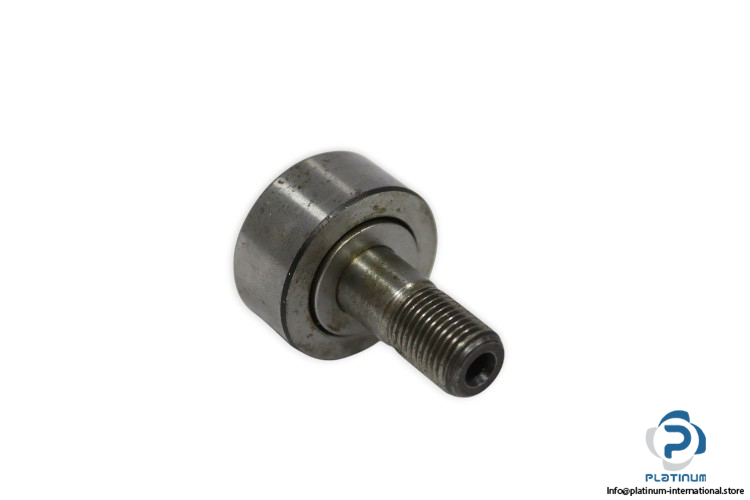

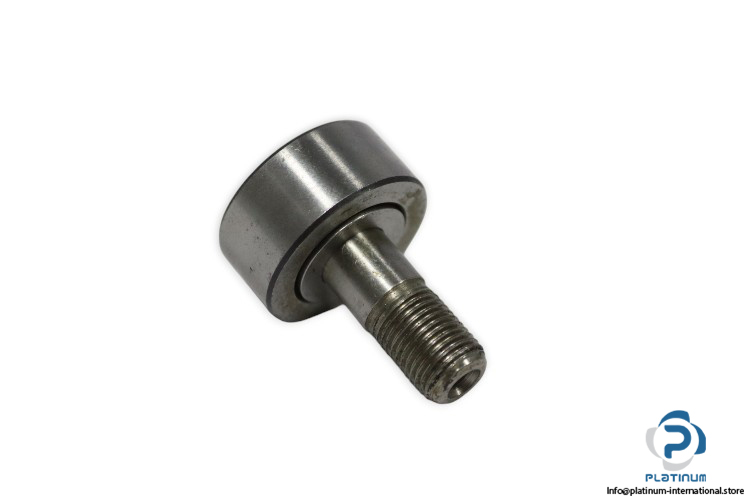

INA KR 26 X A Stud Type Track Roller

Name: INA KR 26 X A STUD TYPE TRACK ROLLER
SKU: 1057351
Availability: LimitedAvailability

ina-KR-26-X-A-stud-type-track-roller-(new)

ina-KR-26-X-A-stud-type-track-roller-(new)-1

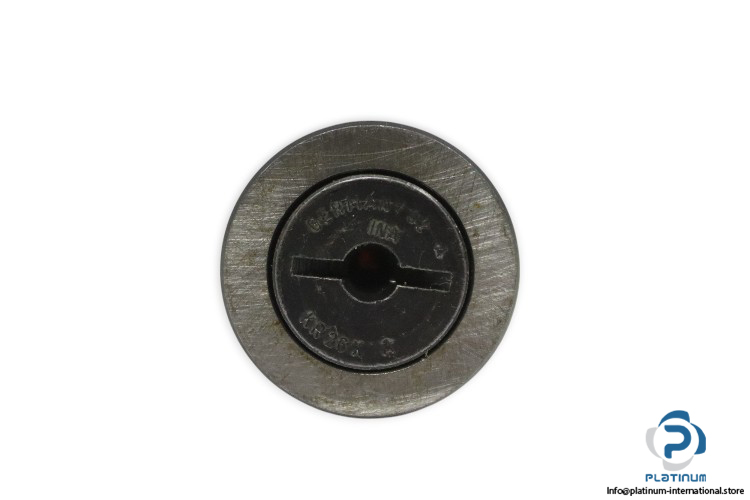

ina-KR-26-X-A-stud-type-track-roller-(new)-2

ina-KR-26-X-A-stud-type-track-roller-(new)-3

Neu

Auf Lager1 EinheitVersandbereit

Hersteller: INA Typ: STIFTART SCHIENENROLLEN Modell: KR26-X-A

Hersteller

INA?

SKU

1057351

Kategorie

Cam Followers

Zustand

Neu

26 bearings Cam Followers Ina mm Roller Rollers Stud track Type

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: INA
Type: STUD TYPE TRACK ROLLER
Model: KR26-X-A

Relubrication feature: KSP, Via head, stud and fit
Dimensions:
Outside diameter D: 26 mm
Fit diameter of roller stud d₁: 10 mm
Width of the roller stud B: 36 mm
Maximum width of thrust washer: 13.2 mm
Thread G: M10X1
Thread length: 12 mm
Basic load ratings, radial:
Dynamic C_{r w}: 5100 N
Static C_{0r w}: 6500 N
Fatigue load limit C_{ur w}: 860 N
Speed on permanent grease lubrication: 8000 1/min
Outer Ring profile: X, Cylindrical profile
Sealing: Gap seal on both sides
Configuration: A , Narrow Body— Standard Body
