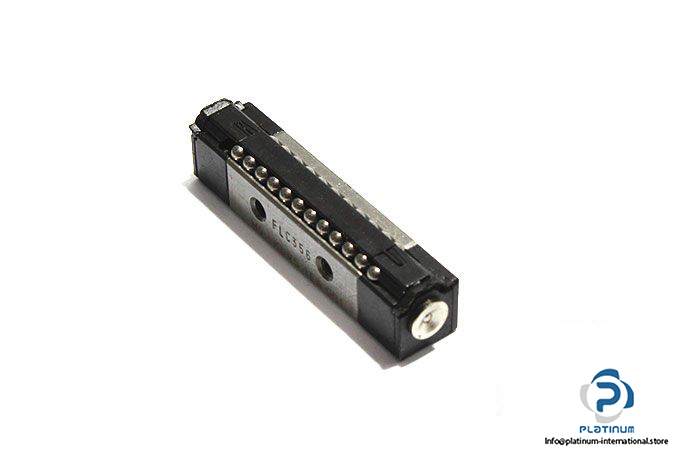

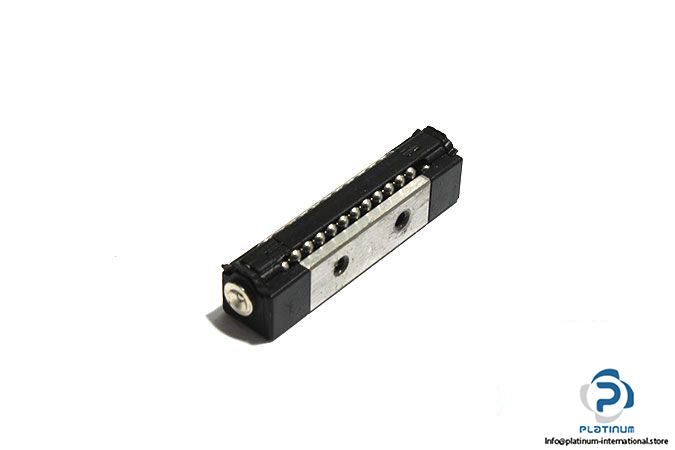

INA KUVS10 Linear Recirculating Ball Bearing

Manufacturer: SCHAEFFLER INA

Type: Linear Recirculating Ball Bearing

Series: KUVS10-B

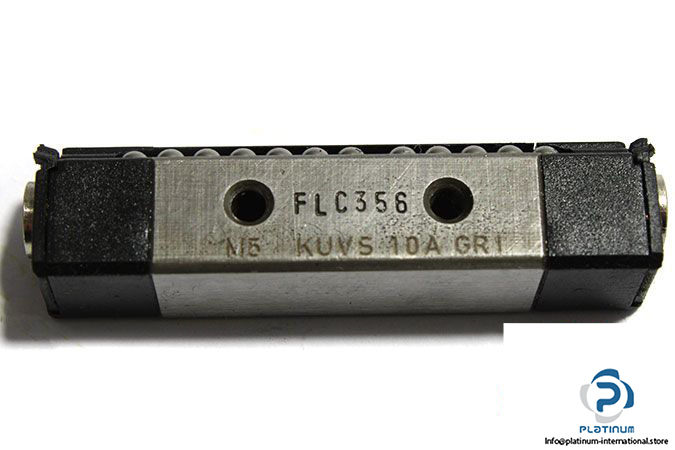

Model: KUVS10 A GR1

Size: 10

Carriage Type: linear recirculating ball bearing units for guideway with raceways on both sides

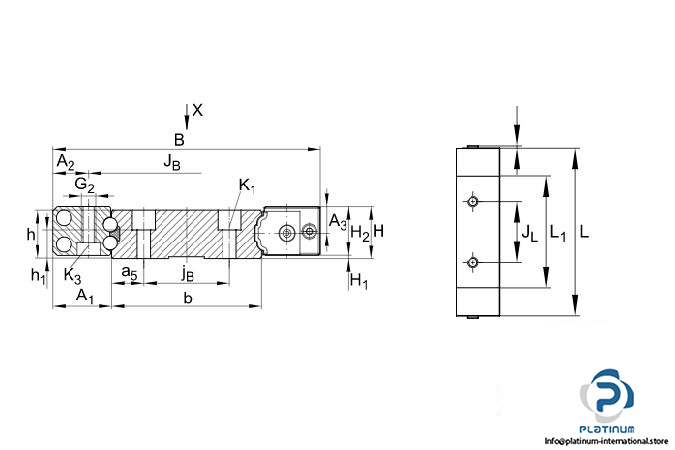

Dimensions

Length ( L ): 47 mm

Width ( A₁ ): 9.9 mm

Height ( H₂ ): 10.5 mm

Basic Dynamic load rating: 5700 N

Basic Static load rating: 10600 N

Static Moment Rating About:

X axis M_0x: 203 Nm

Y axis M_0Y: 51 Nm

Z axis M_0Z: 51 Nm

Weight: 0.03 kg
