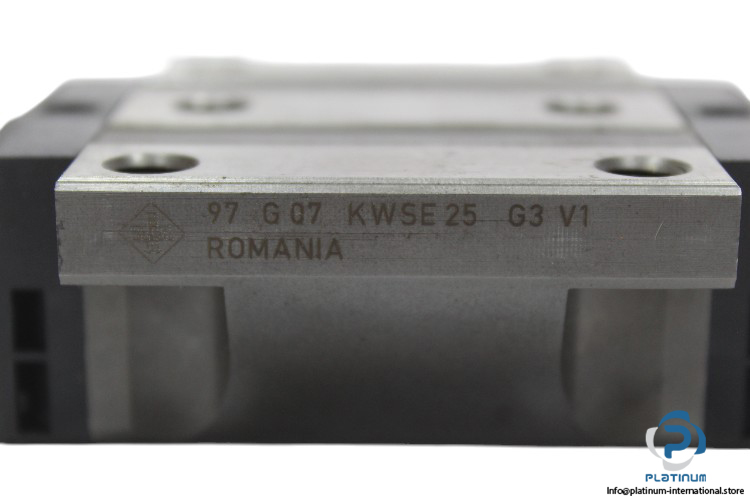

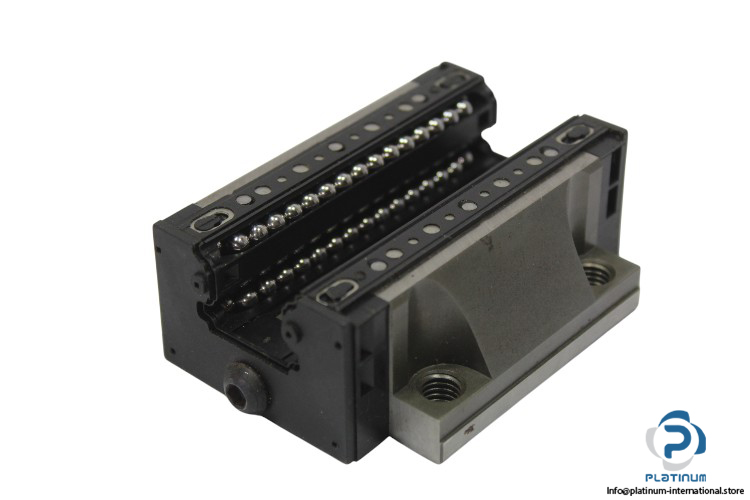

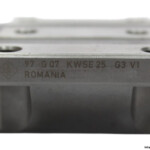

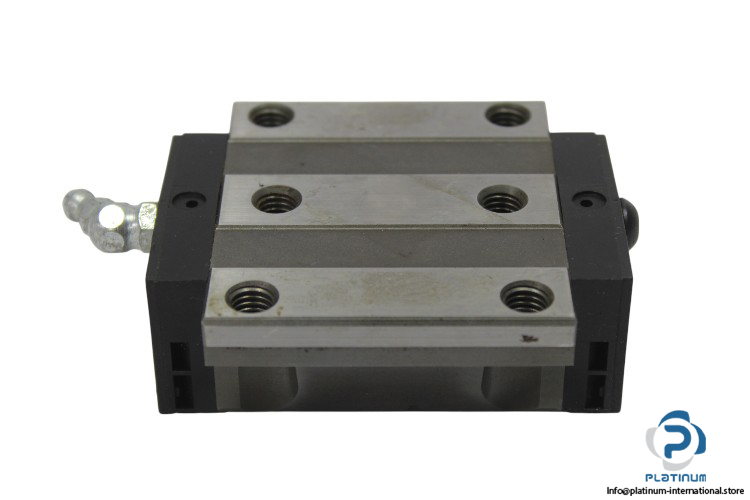

INA KWSE25 G3 V1 Linear Recirculating Ball Bearing
Linearkreiselkugellager Das INA KWSE25 G3 V1 ist ein 25 mm Präzisions-Linearwagen mit G3 Genauigkeitsklasse und V1 Vorspannung. Entwickelt für eine ruhige Bewegung unter Druck-, Zug- und Querbelastungen, bietet es eine statische Kapazität von bis zu 67.000 N in kompakten Automatisierungssystemen.
INA KWSE25 G3 V1 Linear Recirculating Ball Bearing
The INA KWSE25 G3 V1 is a high-precision linear recirculating ball bearing designed for demanding motion applications requiring smooth linear guidance with high load ratings. Built with a compact profile, this carriage offers superior accuracy, preload control, and long-term reliability in automated systems.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing
Model: KWSE25 G3 V1
Size: 25 mm
Basic Load Ratings (Compressive Load):
Basic Load Ratings (Tensile Load):
Basic Load Ratings (Lateral Load):

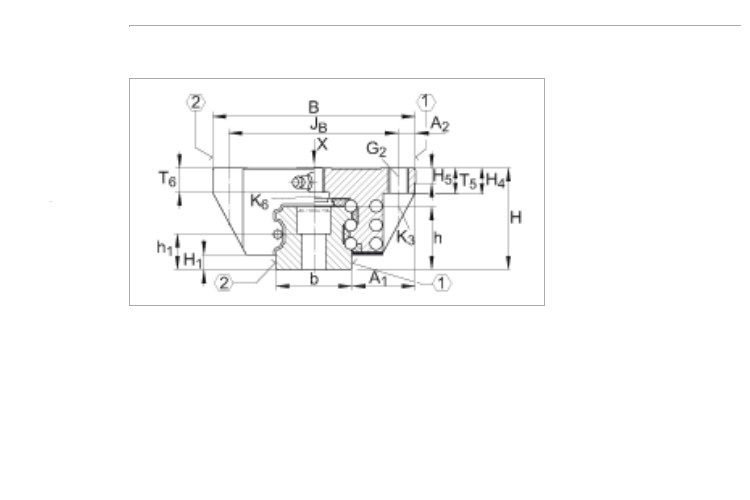

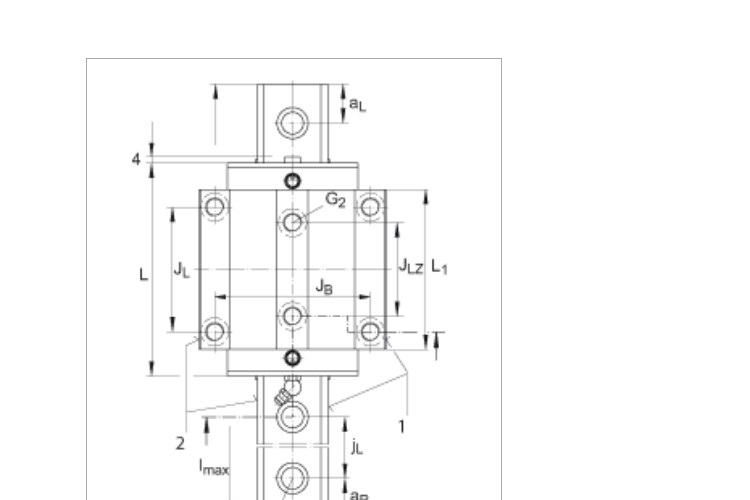

| Total Height (H) | 36 mm |
| Width Carriage (B) | 70 mm |
| Overall Length Carriage (L) | 81.8 mm |
| Block Height (H-H1) | 30.8 mm |
| JB | 57 mm |
| JL | 45 mm |
| Accuracy Class | G3 |
| Carriage Preload | V1 |
| Dynamic (C) | 28000 N |
| Static (C0) | 67000 N |
| Dynamic (C) | 26000 N |
| Static (C0) | 45000 N |
| Dynamic (C) | 28000 N |
| Static (C0) | 47000 N |
