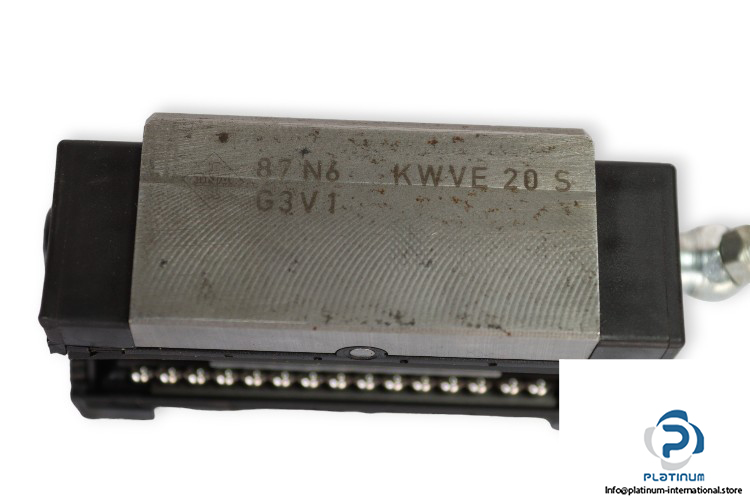

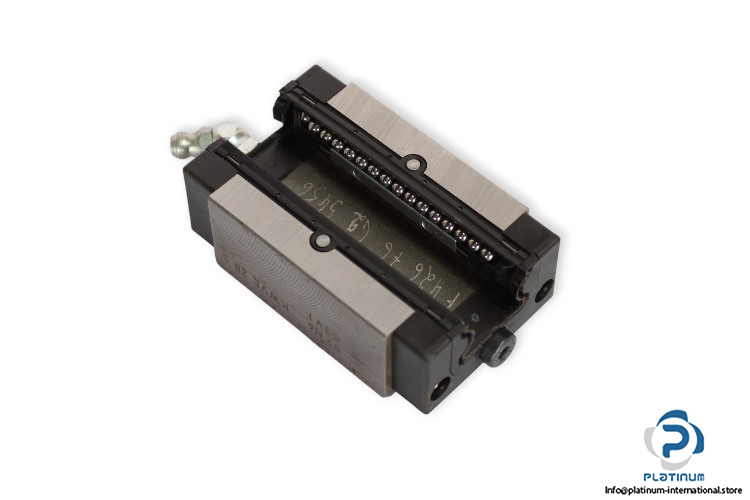

INA KWVE20 S G3V1 Linear Recirculating Ball Bearing

Manufacturer: Schaeffler INA
Type: Linear Recirculating Ball Bearing
MNR: KWVE20SG3V1

Size: 20 mm
Basic Load Ratings:
Dynamic C: 13100 N
Static C₀: 26900 N
Static Moment Rating About:
X axis M_0x: 322 Nm
Y axis M_0Y: 240 Nm
Z axis M_0Z: 240 Nm

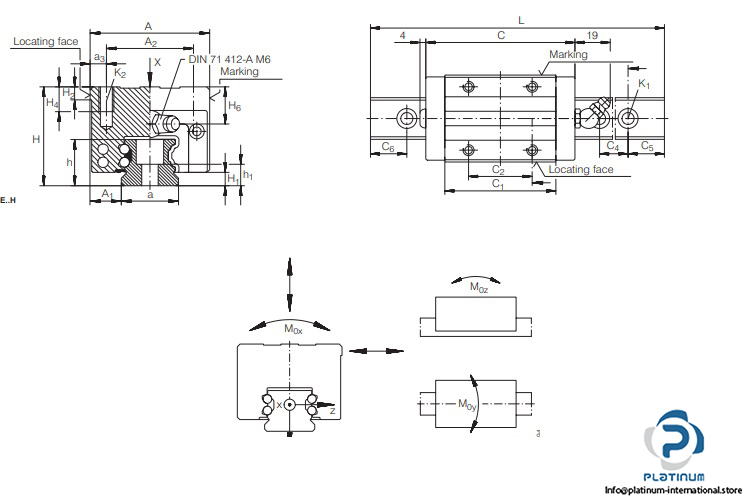

Dimensions
Height system H: 30 mm
H1: 4.6 mm
H2: 5 mm
h: 17 mm
h1: 9.1
Width carriage A: 44 mm
Overall length carriage C: 69.8 mm
A₂: 32 mm
C₂: 36 mm
Accuracy Class: G3
Carriage Preload: V1
