INA LR 201 2RSR-X Track Roller
Neu
Auf Lager6 EinheitenVersandbereit
Schienenrolle vom Typ Yoke INA LR 201 2RSR-X mit doppellippiger Dichtung, hoher Radialbelastbarkeit und fettschmierter Ausführung für Linearbewegungs- und Nockenantrieb-Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

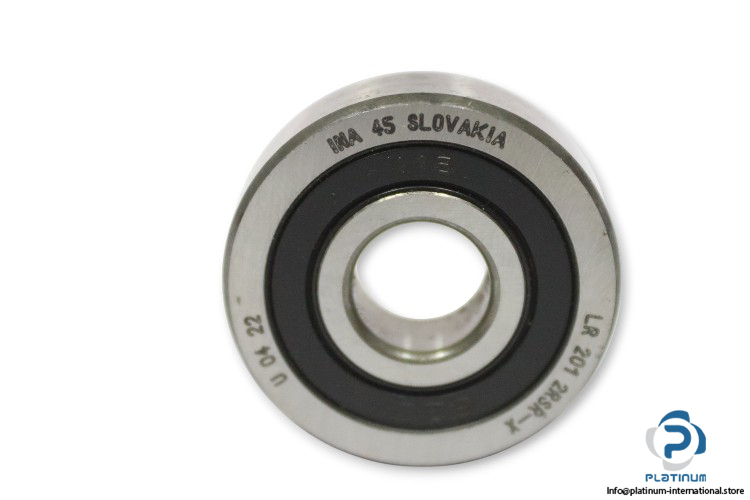

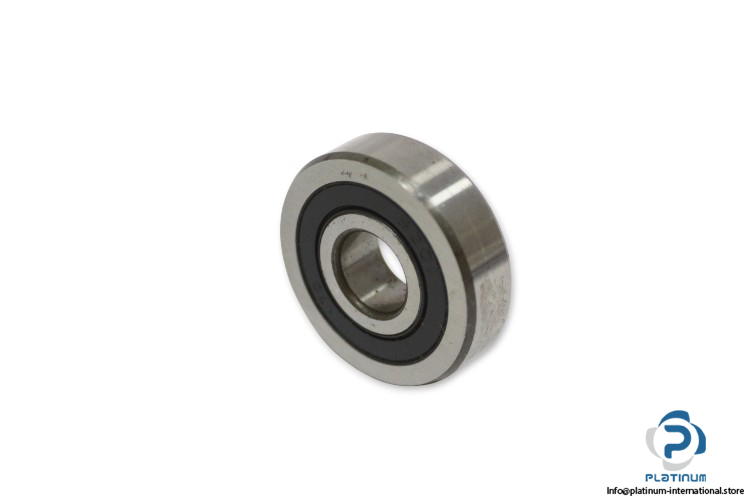

INA LR 201 2RSR-X Yoke Type Track Roller
The INA LR 201 2RSR-X is a precision yoke type track roller designed for applications requiring high load capacity, smooth rolling motion, and reliable sealing performance. Manufactured by INA / Schaeffler, this track roller is suitable for cam drives, guideways, and linear motion systems operating under demanding conditions.
Manufacturer: INA / Schaeffler
Type: Yoke Type Track Roller
Model: LR 201 2RSR-X
| Outer Diameter (D) | 35 mm |
| Bore Diameter (d) | 12 mm |
| Height (C) | 10 mm |
| Sealing | 2RSR, Lip Seal On Both Sides With Radial Sealing Action |
| Basic Dynamic Load Rating, Radial (Crw) | 6,000 N |
| Basic Static Load Rating, Radial (C0rw) | 2,850 N |
| Fatigue Load Limit, Radial (Curw) | 143 N |
| Speed On Permanent Grease Lubrication | 12,000 1/min |
