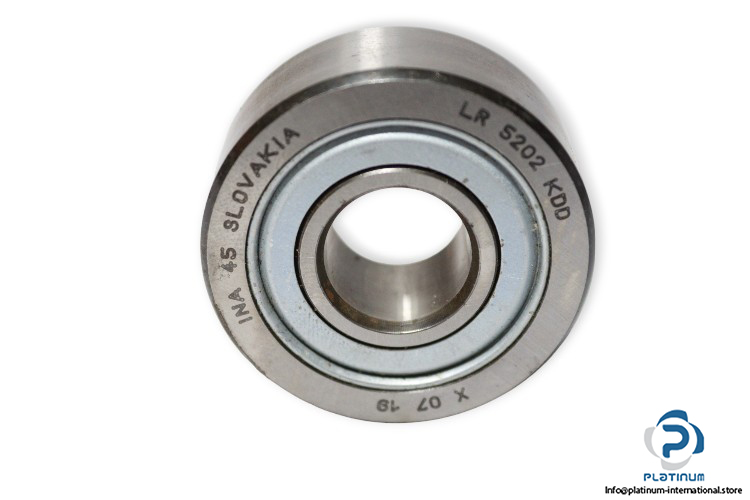

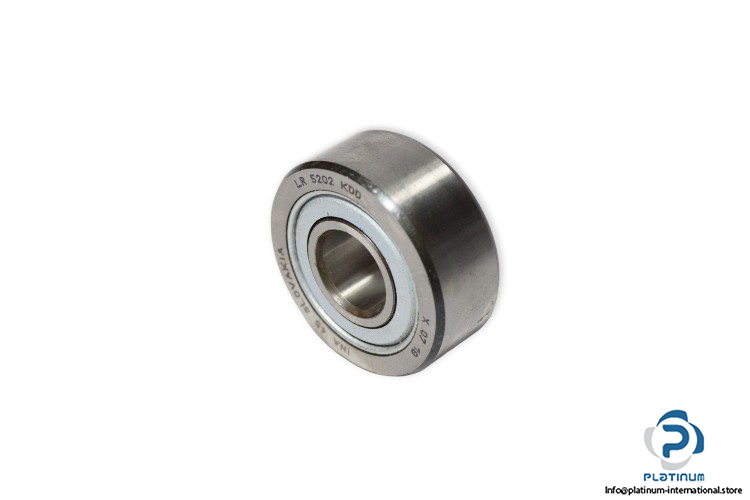

INA LR 5202 KDD Track Roller

Manufacturer: Schaeffler INA
Type: Track Roller
Model: LR5202 KDD

Dimensions:
Outer diameter D: 40 mm
Bore Diameter d: 15 mm
Height C: 15.9 mm
Basic load ratings:
Dynamic C_r: 10800 N
Static C_0r: 7700 N
Fatigue load limit C_{ur w}: 390 N
Speed on permanent grease lubrication: 7400 rpm
