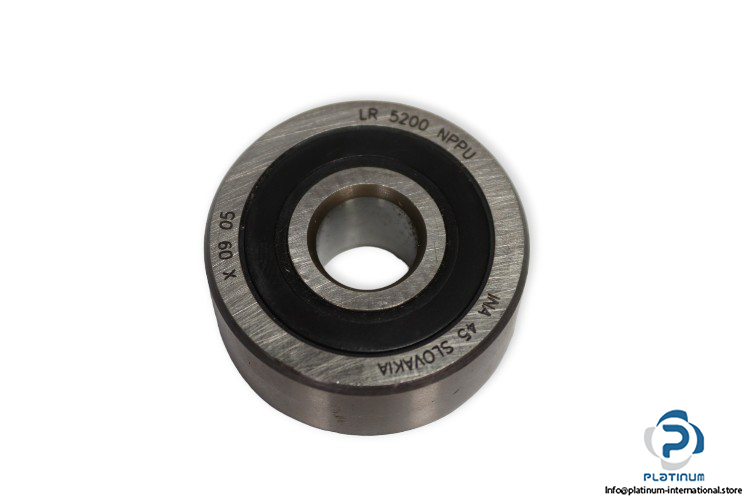

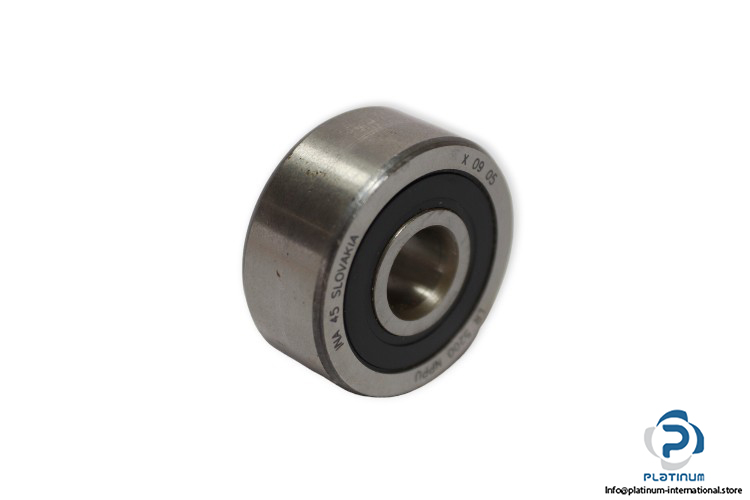

INA LR5200 Nppu Track Roller

Manufacturer: Schaeffler INA
Type: Yoke Type Metric Sealed Double Row Ball Track Roller
Model: LR5200 NPPU

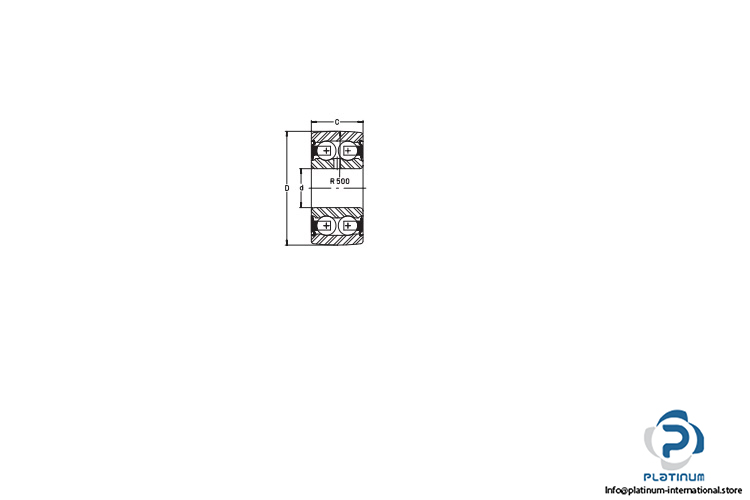

Dimensions:
Bore Diameter d: 10 mm
Outer diameter D: 32 mm
Height C: 14 mm
Basic load ratings:
Dynamic C_r: 8000 N
Static C_0r: 4600 N
Speed on permanent grease lubrication: 16000 rpm
Sealing: Sealed with Crowned OD
