INA NA 6919 2S Needle Roller Bearing
Neu
Auf Lager10 EinheitenVersandbereit
Nadelrollenlager INA NA6919 2S Nadelrollenlager mit 95 mm Bohrungsdurchmesser, hoher Tragfähigkeit und zuverlässiger Leistung für industrielle Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

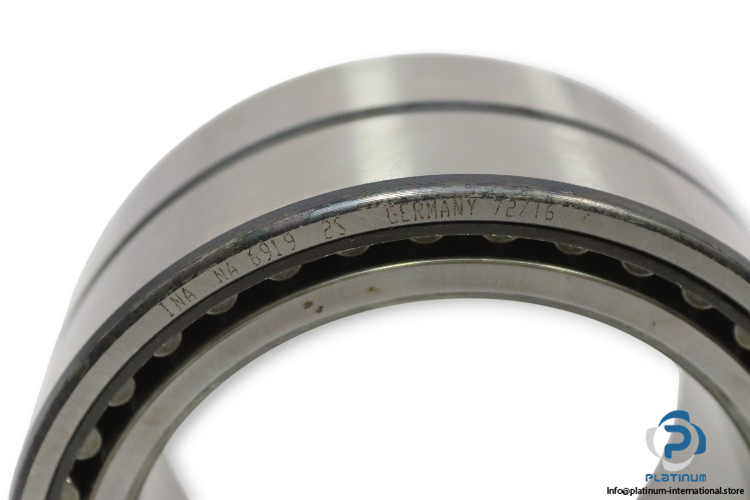

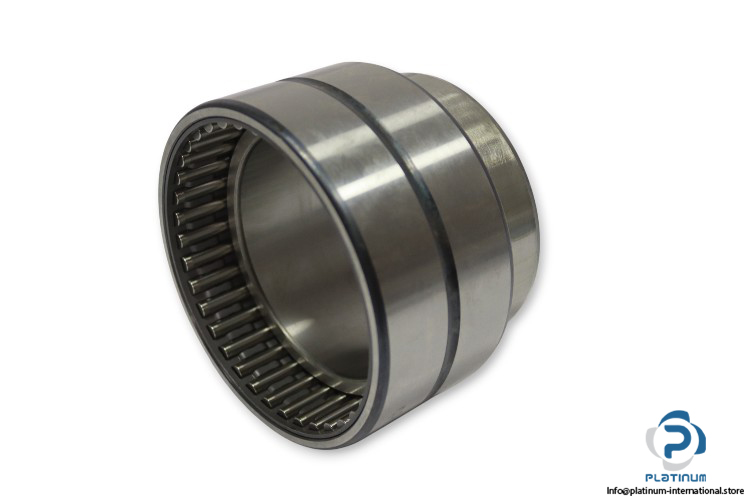

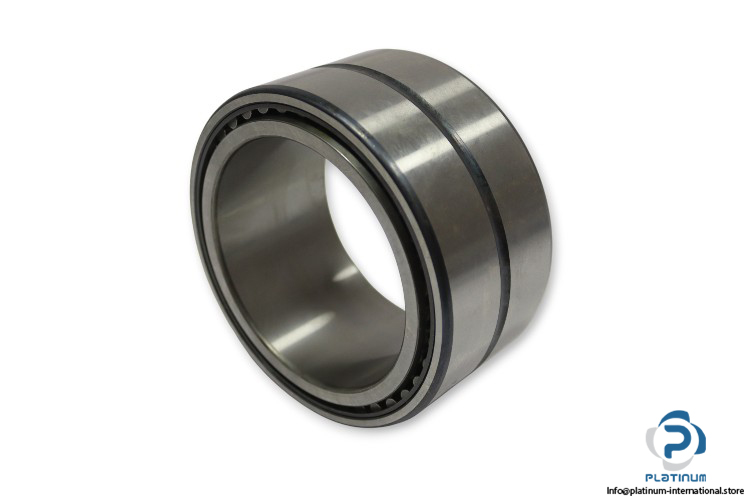

INA NA6919 2S Needle Roller Bearing
The INA NA6919 2S needle roller bearing is designed for applications requiring high radial load capacity within a compact design. Manufactured by INA / Schaeffler, this bearing provides reliable performance, precise guidance, and long service life in demanding industrial environments.
Manufacturer: INA / Schaeffler
Type: Needle Roller Bearing
Model: NA6919 2S
| Bore Diameter (d) | 95 mm |
| Outer Diameter (D) | 130 mm |
| Width (B) | 63 mm |
| Minimum Chamfer Dimension (rmin) | 1.1 mm |
| Dynamic Load Rating (Cr) | 197,000 N |
| Static Load Rating (C0r) | 440,000 N |
| Fatigue Load Limit (Cur) | 77,000 N |
| Reference Speed | 2,440 rpm |
| Limiting Speed | 4,200 rpm |
| Operating Temperature | -30 to +120 °C |
